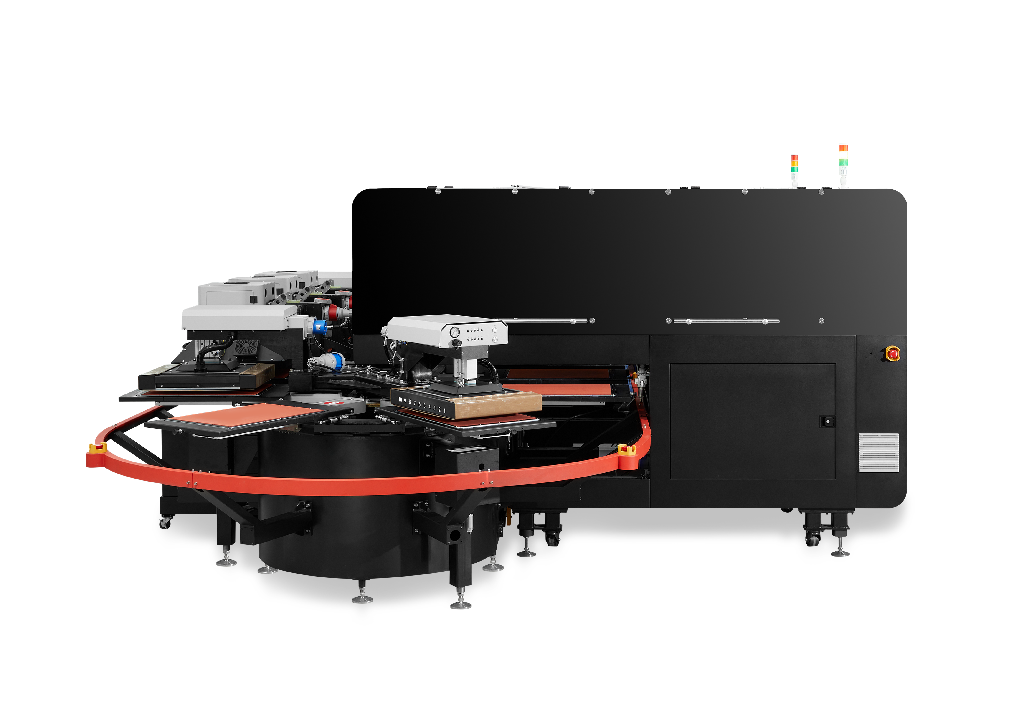

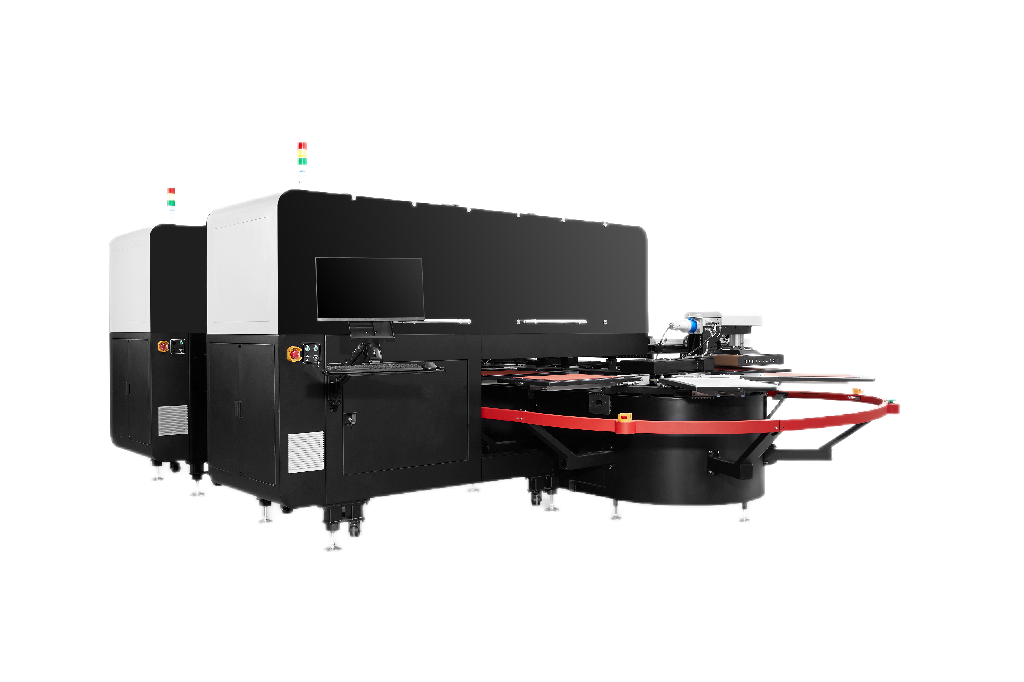

  • Wings Compact

    Direct to Garment Digital Printer

    Provide end-to-end intelligent solutions for medium & large DTG clients

    In-line pretreat available, intelligent and efficient operation throughout

    Max. resolution up to 600*1800dpi

    Regardless of the dark or white cloth, the production efficiency can reach 240pcs/h

    Choose offline pretreatment, the production efficiency can reach 400pcs/h

    Print Productivity:In-line pretreat:240pcs/h,Off-line pretreat:400pcs/h
    Printing Height:3-15mm (0.12"*0.59")
    Max. Image Area:369*500mm (14.17"*21.65")
    Fabric Types:Pure cotton or mixed cotton fabric
    Printheads Printheads Quantity:14/28
    Printheads:Grayscale Industrial Printhead
    Printing Resolution:600*1200dpi/1800dpi
    Cleaning System:Automatic cleaning system
    Moisturizing:Non-contact Moisturizing

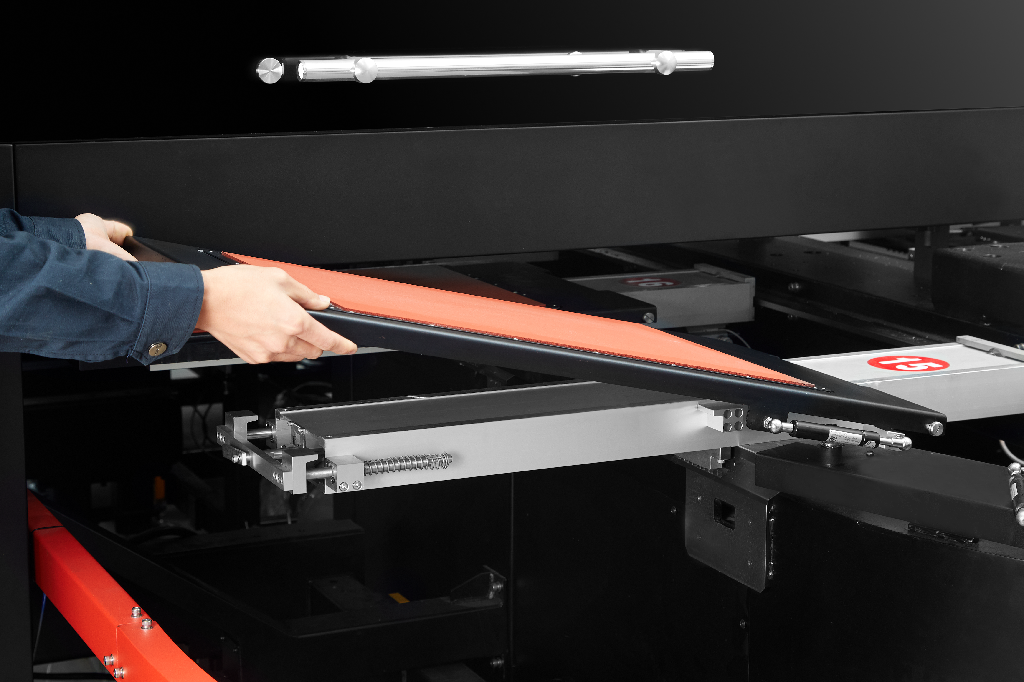

    Pallet Pallet Quantity:14
    Max. Pallet Size:408*570mm (16.06"*22.44")
    Machine Overall Size:5779*3834*2125mm (L*W*H)(227.52"*150.94"*83.66")
    G.W.:4620kg
    Ink Ink Type:Pigment ink
    Ink Channel:CMYK+White
    Software RIP Software:Wingsdedicated RIP software
    Operating:Windows
    Requirements Temperature:20℃-25℃
    Relative Humidity:60%-70%
    Power Supply:AC380±10%  72A( 47KW)|50Hz / 220V±10%| 85A( 47KW)|60Hz
    Compressed Air:0.6 MPa

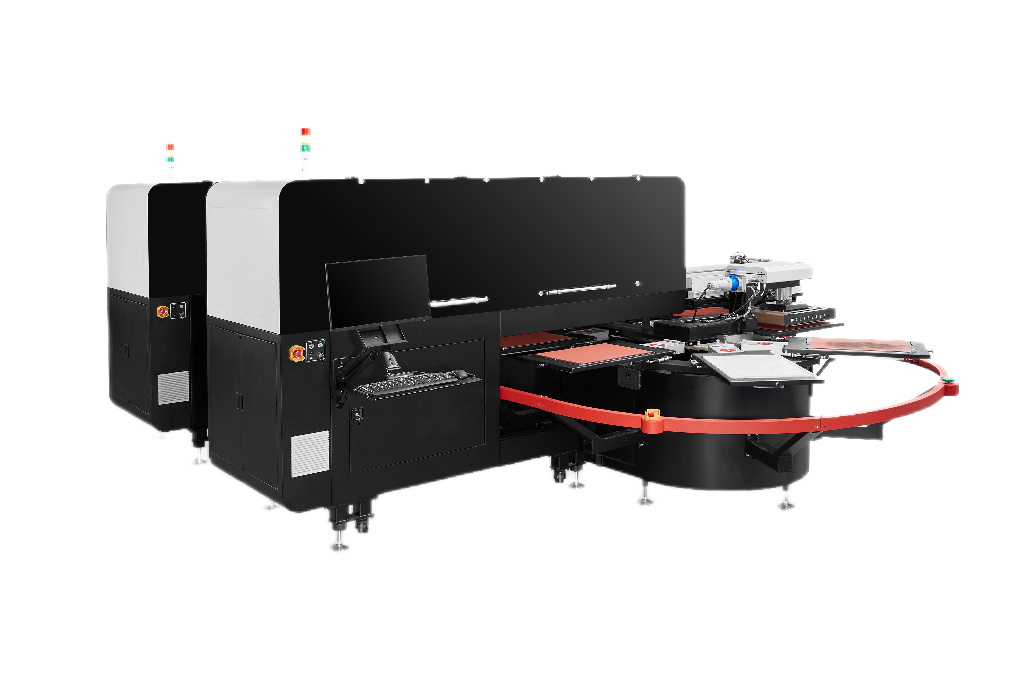

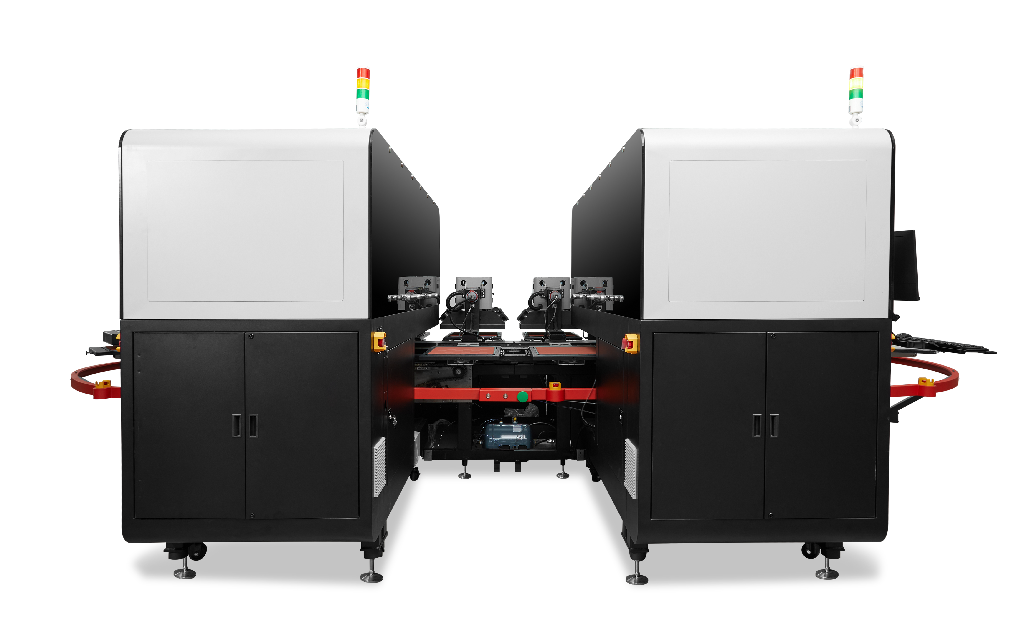

    Wings Compact

    Direct-to-Garment Pure Digital Printer

    Provide end-to-end intelligent industrial digital solutions for medium and large DTG clients

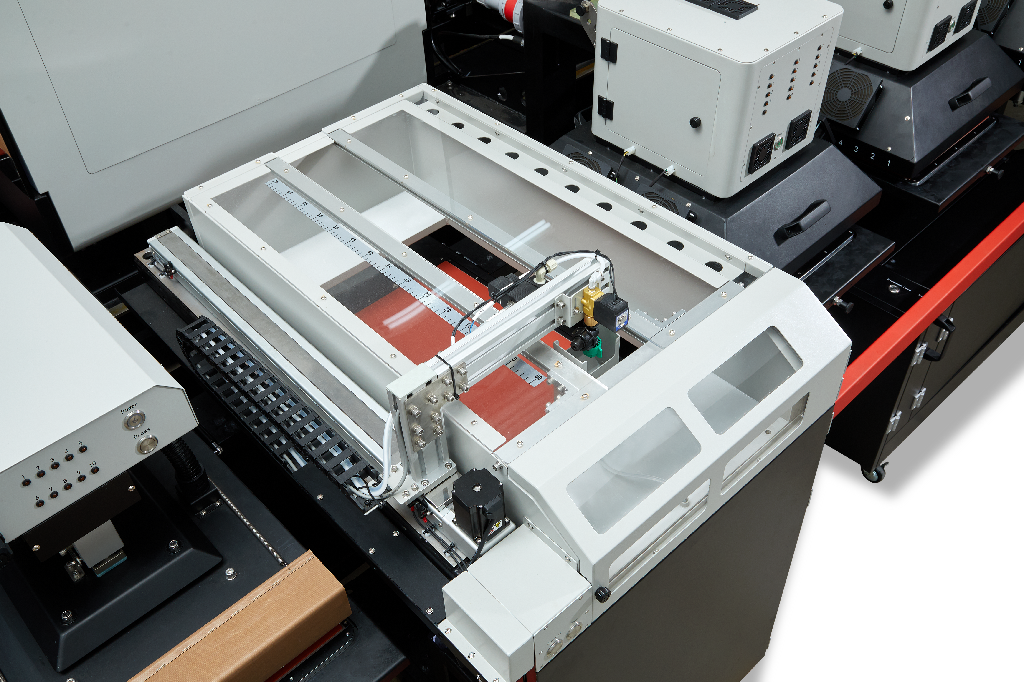

    ● Inline pretreat process available, all begin with blank fabric

    ● Intelligent online system, from online image processing to DTG printing

    ● Equipped with 28pcs grayscale industrial printheads, resolution up to 600x1800dpi

    ● Productivity up to 240pcs/h (dark garment, 15”x20” image size)

    ● Digital printing tracking in real time, intelligent and efficient operation

    ● All-green solution with OEKO-TEX® certificate

    ● Choose offline pretreatment, the production efficiency can reach 400pcs/h

    ● MOQ is only 1 piece, delivery within 3-7 days

    ● Over 10 years of rich experience in applying high-speed industrial-grade printhead, tens of thousands of practical printhead application cases to share with customers

    ● Service outlets cover the whole world, perfect pre-sale proofing and after-sale protection services, 24-hour feedback mechanism

    ● Independent R&D, machine upgrade and pallet customization available
