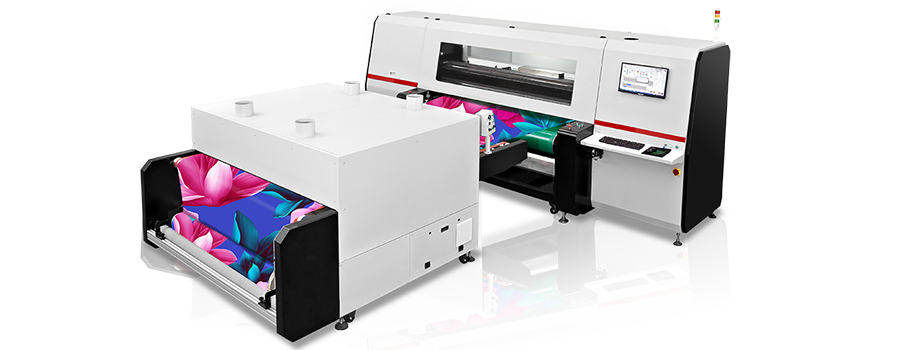

HM1800B

Industrial high-speed conveying-belt direct-to-textile digital printer

Maximum productivity: 260m²/hr

Maximum resolution: 600*1200dpi

Printhead: 4-8 industrial-grade piezoelectric ceramic printheads

· Advantage · Parameters

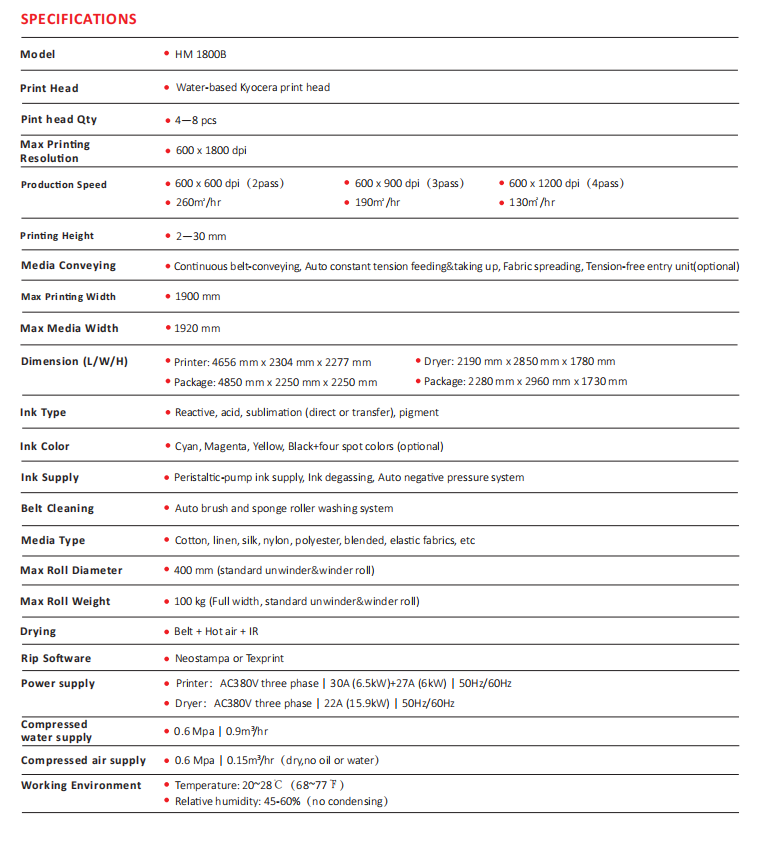

Model	HM1800B
Print head	Industrial inkjet print heads with piezo technology
Pint head Qty	4—8pcs
Max Printing Resolution	600*1800dpi
Production Speed	600x600dpi（2pass）：260m²/hr 600x900dpi（3pass）：190m²/hr 600x1200dpi（4pass）：130m²/hr
Printing Height	2—30mm
Media Conveying	Continuous belt-conveying, Auto constant tension feeding&taking up, Fabric spreading, Tension-free entry unit(optional)
Max Printing Width	1900mm
Max Media Width	1920mm
Dimension(L/W/H)	Printer：4656mm x 2304mm x 2277mm Dryer: 2190mm x 2850mm x 1780mm Printer Package：4850mm x 2250mm x 2250mm Dryer Package：2280mm x 2960mm x 1730mm
Ink Type	Reactive, acid, sublimation(direct or transfer), pigment
Ink Color	Cyan, Magenta, Yellow, Black+four spot colors(optional)

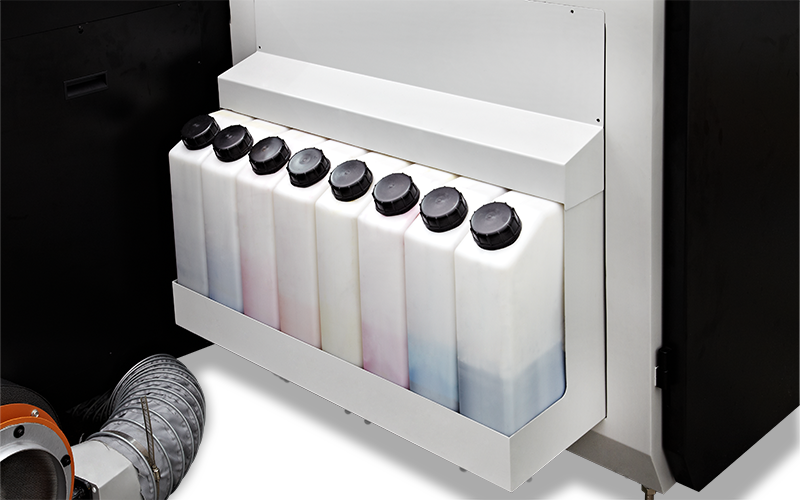

Ink Supply	Peristaltic-pump ink supply, Ink degassing, Auto negative pressure system

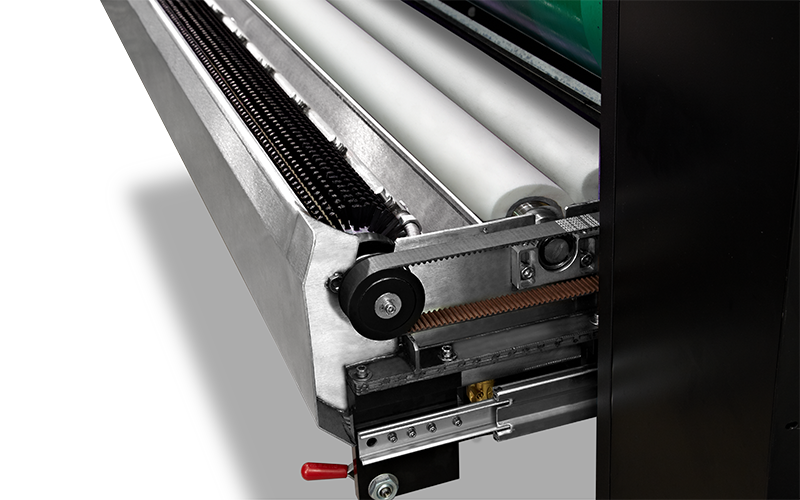

Belt Cleaning	Auto brush and sponge roller washing system
Media Type	Cotton, linen, silk, nylon, polyester, blended, elastic fabrics, etc
Max Roll Diameter	400mm （standard unwinder&winder roll）
Max Roll Weight	100kg（standard unwinder&winder roll，winder roll)
Model	Belt+Hot air+IR
Rip Software	Neostampa, Texprint
Power supply	Printer：AC380V three phase｜30A(6.5kW)+27A(6kW)｜50Hz/60Hz Dryer：AC380V three phase｜22A(15.9kW)｜50Hz/60Hz
Compressed water supply	0.6 Mpa｜0.9m³ /hr
Compressed air supply	0.6 Mpa｜0.15m³ /hr（dry,no oil or water）
Working Environment	Temperature: 20~28℃（68~77℉） Relative humidity: 45-60%（no condensing）
