CNTOP Fully Automatic Screen Printing Solution
Empowering Garment Competitiveness
  • T7E

    Large format screen printing solution

  • DTG Solution
  • Hybrid Printing Solution
  • Screen Printing Solution
  • T7E

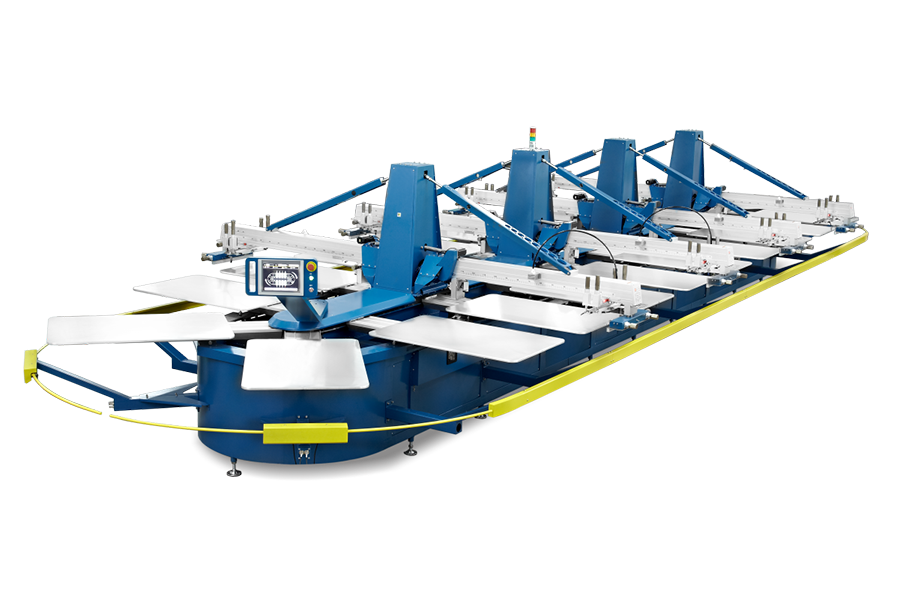

    Large-format Oval Printer

    For large-scale garment factories with over 2000 pieces per order

    Big-pattern printing, max. printing area up to 68*86cm

    High efficiency, max. productivity up to 600pcs/h

    6-20 high-precision print heads for exquisite printing

    Fast pallet loading & unloading, freely switching garment & piece printing

    T7E-22-6 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 22/6-14
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 5.4
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E-28-8 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 28/8-20
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 6.2
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E-34-10 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 34/10-26
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 7.0
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E-40-12 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 40/12-30
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 7.8
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E-46-14 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 46/14-30
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 8.6
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E-52-16 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 52/16-30
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 9.4
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E-58-18 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 58/18-30
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 10.2
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E-64-20 Specifications

    Productivity600pcs/h
    Stations/Colors(Range) 64/20-30
    Max.Image Area 68*86cm(26.8"*33.8")
    Pallet Size 70*100cm(27.5"*39.3")
    Overall Size(L*W*H) 1020*360*170cm(401.6"*141.7"*66.9")
    Power Consumption(kW) 11.0
    Air Pressure Specifications 0.6MPa-0.8MPa (must be dried and filtered)
    Power Supply AC380V/AC220V

    T7E

    Large-format Oval Printer

    Focus on piece screen printing, suitable for large-scale garment factories and processing plants with more than 1,000 pieces in a single order.

    Bring large-format screen printing products and solutions to customers


    ● Worry-free printing of big patterns, the maximum printing area is up to 68*86cm

    ● High efficiency, the actual maximum production capacity up to 600pcs/h

    ● 6-20 high-precision print heads to achieve exquisite printing effect

    ● Oval shape takes up less space, open body design, can augment the number of work stations in a customized wayPallet quick loading design, seamless transition between garment and pieces printing scenes

    ● Consecutive operation mode, matches a variety of garment printing processes (slurry, robber, flocking, hi-density discharge, foaming, pulling, cracking, etc)

    ● Customized solution and professional operation training available

    ●  Each model can be upgraded to version Pro for better performance and better user experience

    ●  Over 10 years of rich experience in applying high-speed industrial-grade printhead, tens of thousands of practical printhead application cases to share with customers

    ● Service outlets cover the whole world, perfect pre-sale proofing and after-sale protection services, 24-hour feedback mechanism
