UV Flatbed Series
Empower UV Competitiveness
  • UV Flatbed Printer
  • UV Hybrid Printer
  • UV RTR Printer
  • High Speed Printer
  • HT2512UV

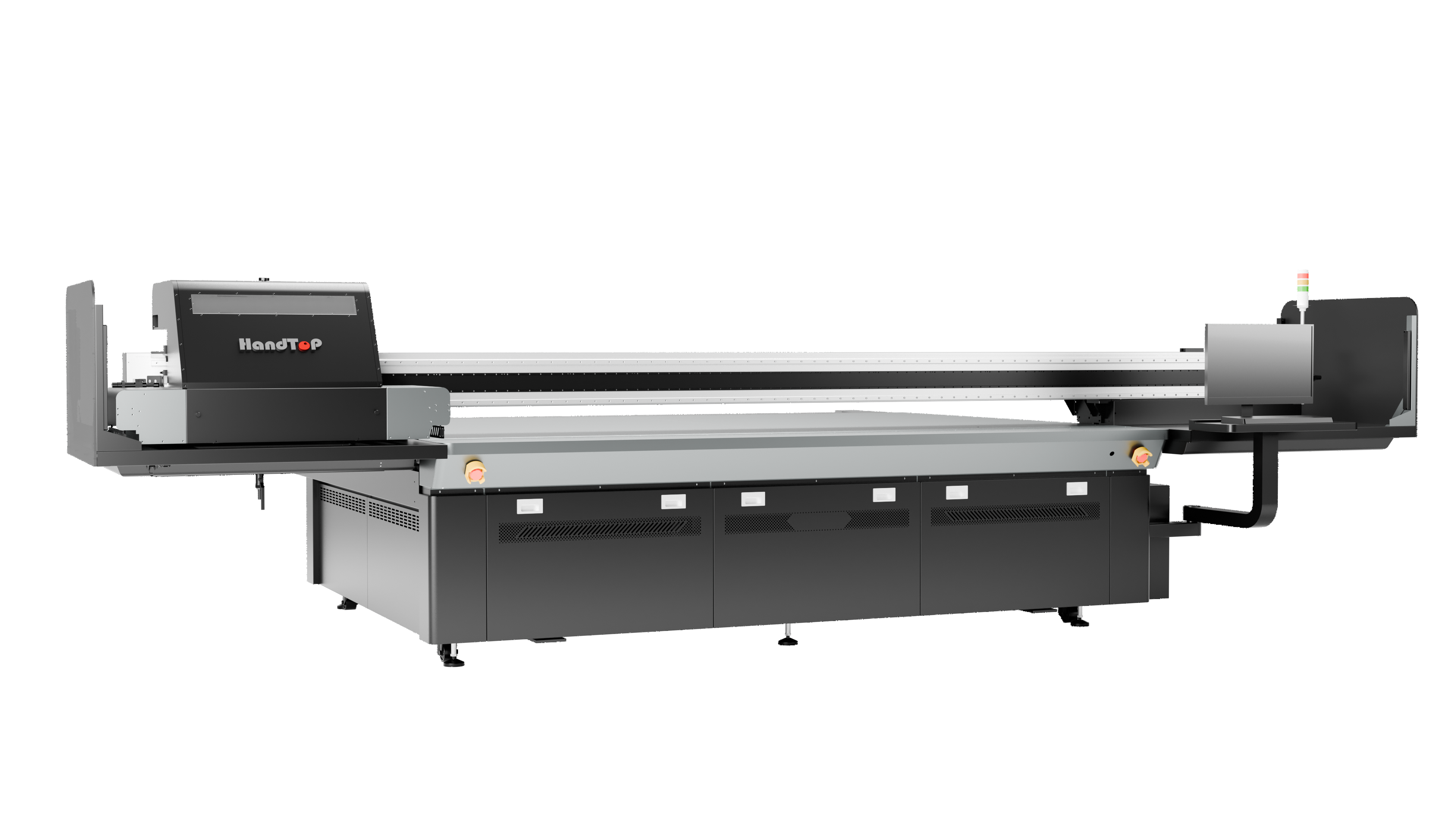

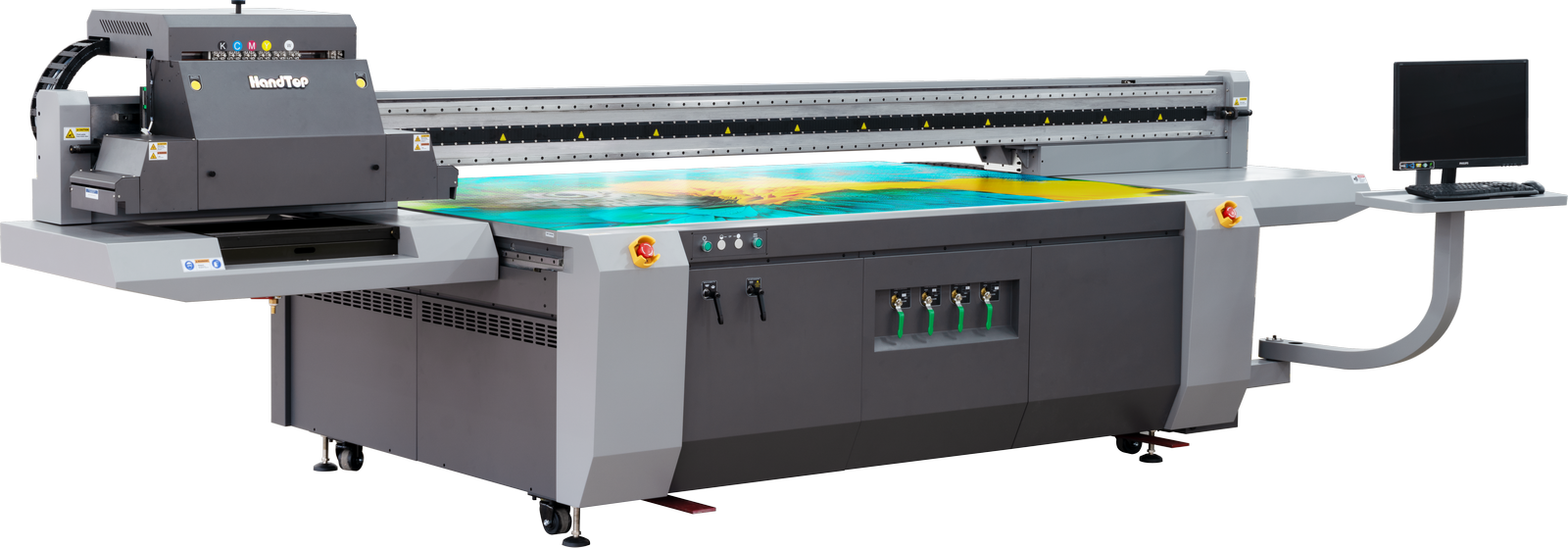

    UV Flatbed Printer

    Maximum productivity: 101m²/h

    Maximum resolution: 1200*1200dpi

    Printhead: Kyocera Ricoh G5/G6

    Model HT2512UV
    Printhead RicohG5 RicohG6 Kyocera Kyocera Kyocera
    Quantity of printheads 4-8pcs(Double row) 4-8pcs(Double row) 3-4pcs(Single row) 4-8pcs(Double row) 10pcs(symmetric array)
    Resolution 1200*1200dpi
    Printing speed
    Draf 42㎡/h 60㎡/h 48㎡/h 68㎡/h 101㎡/h
    Production 30㎡/h 45㎡/h 33㎡/h 53㎡/h 78㎡/h
    Quality 21㎡/h 32㎡/h 23㎡/h 40㎡/h 56㎡/h
    Print mode Unidirectional and bidirectional
    Media type mobile phone case, glass, acrylic, wood plate, ceramic tile, metal plate, PVC plate, corrugated plate, plastic, marble, wallpaper, light box cloth, PC, ABS, 3C and other plates
    Max width 2.5m*1.2m
    Max media thickness 100mm
    Ink environmental friendly UV curable ink (excluding VOC)
    Ink color C、M、Y、K、Lc、Lm、V、W
    Image format Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
    Machine size 4.67m(L)*2.51m(W)*1.38m(H)
    Machine net weight 1150KG
    Machine gross weight 1745KG
    Power consumption 8.3KW(20A)
    Power supply 400VAC.50Hz 3P/N/PE
    Certification CE,FCC
    RIP support Caldera,Onyx optional
    UV curing LED curing
    Interface high speed PCIE
    Environment Seperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%
    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.
