Full coverage of products for all kinds of applications
Textile Printing Series
  • Direct to Fabric Printer
  • Dye Sublimation Printer
  • Single Pass Printer
  • HM 2700R Pro

    High-speed RTR dye-sublimation digital printer

    Maximum productivity: 955m/hr

    Maximum resolution: 600*1200dpi

    Print head: 4 or 8 industrial-grade piezoelectric ceramic print-heads

    Model HM2700R pro
    Print head 4-8 pcs (Kyocera printhead, single & dual channel optional)
    Print mode

    Pass1pass2pass
    Printing Mode 600*600dpi 600*1200dpi
    Production Speed330m/hr 165m/hr
    Material  information Maximum Substrate width:1800mm
    Maximum printing width:1900mm
    Material Weight:Minimum 31g/m2

    Media Conveying Roll to roll
    Printer3945mm * 1000mm * 1718mm(L*W*H)
    Ink Color4、6、8 colors optional
    Ink tank volume40L(4 colors)、15L(8 colors)
    Media TypeDye Sublimation paper
    Max Roll Diameter1meter
    Dryer typeConstant temperature hot air drying

    Compressed air supply 0.6 Mpa|1m³/hr(dry without  oil or water vapor)
    Power supply AC380V±10% ,three phase| 11.5A ( 6KW) |50Hz/60Hz
    Working EnvironmentTemperature :20~28℃ degrees Celsius(68~77℉ degrees Fahrenheit),Relative humidity:45﹪-60﹪ (no condensation)
    Software Module
    Constant-Temperature Drying
    Paper Flattening
    new product
    Empower Textile Competitiveness
    Provide professional digital textile printing equipment and solutions
    Full coverage of products for all kinds of applications
    Product Rocommended

    HM 2700R Pro

    Productivity fully increased with thin paper printing breakthrough

    HM1800BK32

    Industrial high-speed conveying-belt direct-to-textile digital printer

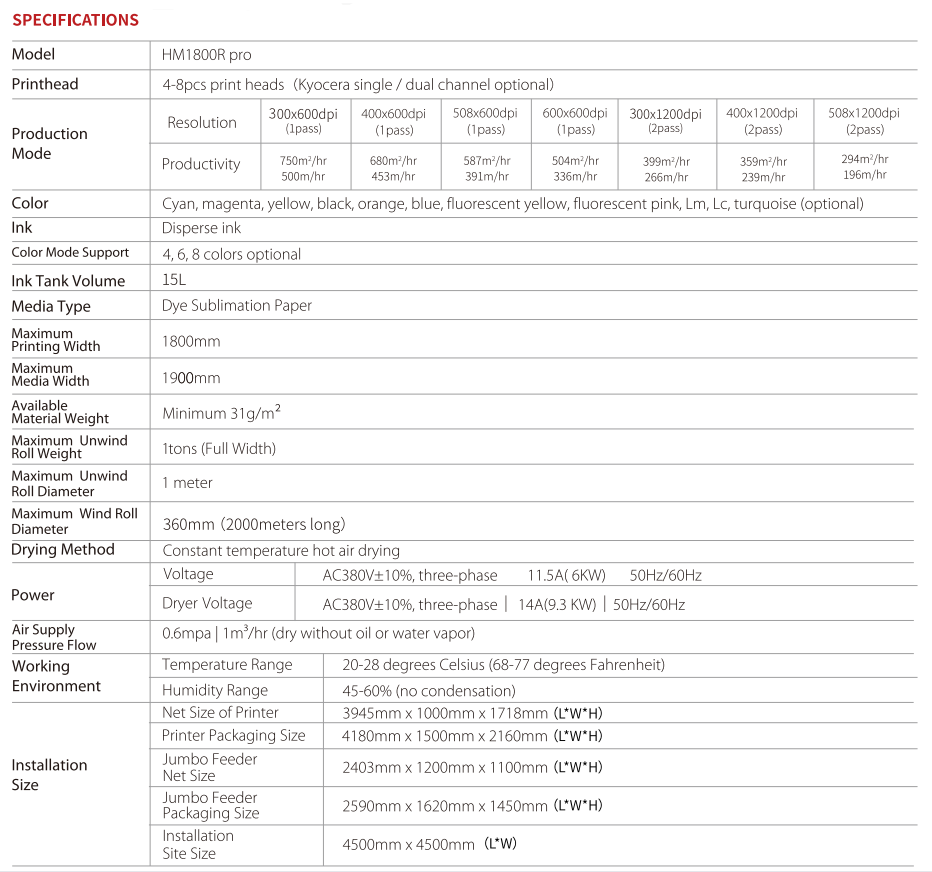

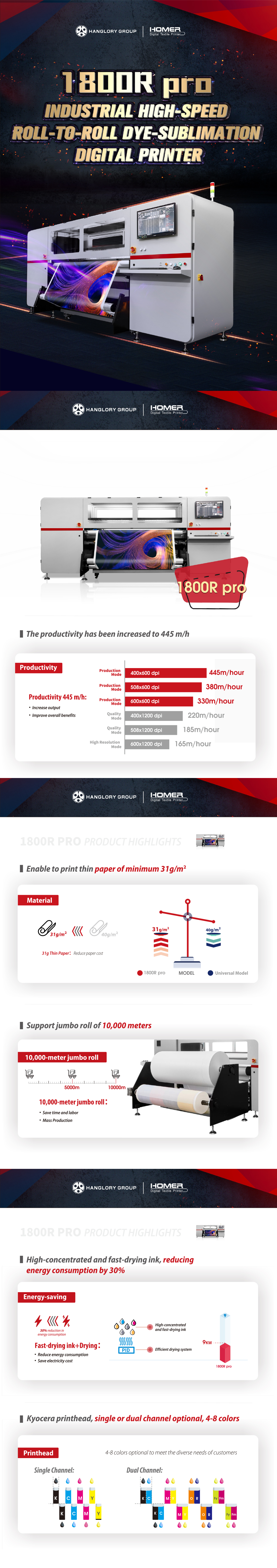

    HM1800R pro

    Productivity fully increased with thin paper printing breakthrough

    HM1800BK12

    Industrial Ultra-speed Conveying-belt Direct-to-textile Digital Printer

    Glory1800P

    Single-Pass Dye-Sublimation Printer

    HM1800B

    Industrial high-speed conveying-belt direct-to-textile digital printer

    HM3200R

    Industrial Digital Hybrid Dye-sublimation Printer
