Dye Sublimation Printers
Empower Textile Competitiveness
  • HM3200R

    Multipurpose printer for both fabric and paper printing

  • Direct to Fabric Printer
  • Dye Sublimation Printer
  • Single Pass Printer

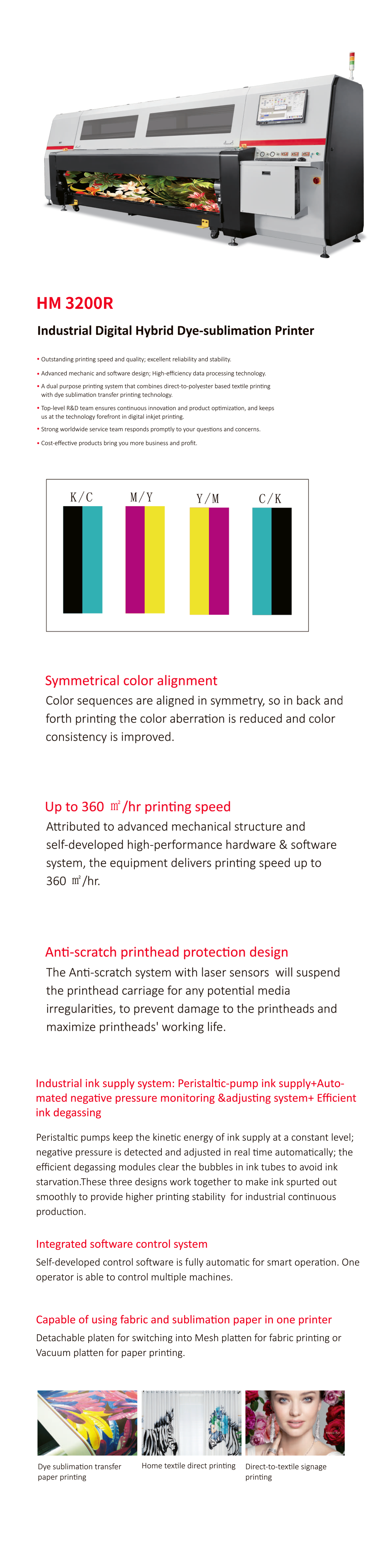

  • HM3200R

    Industrial Digital Hybrid Dye-sublimation Printer

    Maximum productivity: 360m²/hr

    Maximum resolution: 600*1800dpi

    Printhead: 4-6 industrial grade piezoelectric ceramic printheads

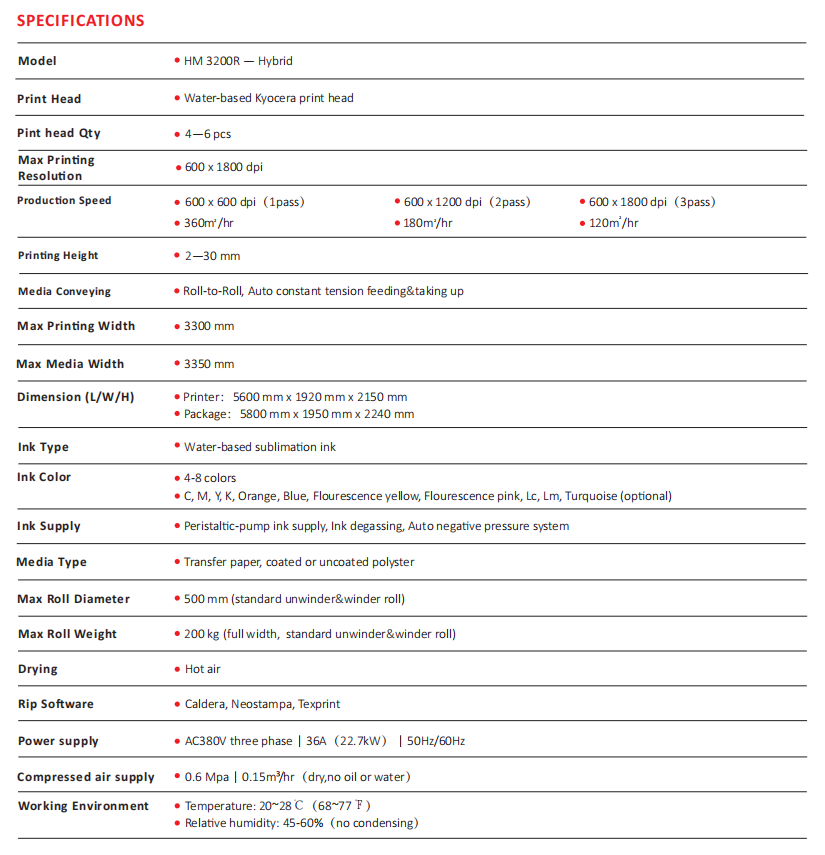

    Model HM3200R
    Print head Industrial inkjet print heads with piezo technology
    Pint head Qty 4—6pcs
    Max Printing Resolution 600*1800dpi
    Production Speed600*600dpi(1pass):360m2/hr
    600*1200dpi(2pass): 180m2/hr
    600*1800dpi(3pass):120m2/hr
    Printing Height 2—30mm
    Media Conveying Roll-to-Roll, Auto constant tension feeding&taking up
    Max Printing Width 3300mm
    Max Media Width 3350mm
    Dimension(L/W/H)Printer:5600mm x 1750mm x 2150mm
    Package:5800mm x 1950mm x 2240mm
    Ink Type Water-based sublimation ink
    Ink Color4-8 colors C, M, Y, K, Orange, Blue, Flourescence yellow, Flourescence pink, Lc, Lm, Turquoise (optional)
    Ink Supply Peristaltic-pump ink supply, Ink degassing, Auto negative pressure system
    Media Type Transfer paper, coated or uncoated polyster
    Max Roll Diameter 500mm (standard unwinder&winder roll)
    Max Roll Weight 200kg(standard unwinder&winder roll,winder roll)
    Drying Hot air
    Rip Software Caldera, Neostampa, Texprint
    Power supply AC380V three phase|36A(22.7kW)|50Hz/60Hz
    Compressed air supply 0.6 Mpa|0.15m³/hr(dry,no oil or water)
    Working EnvironmentTemperature: 20~28℃(68~77℉), Relative humidity: 45-60%(no condensing)


    Printing platform
    Printing platform
    Retractable device
    new product
    Empower Textile Competitiveness
    Provide professional digital textile printing equipment and solutions
    HM3200R
    Full coverage of products for all kinds of applications
    Product Rocommended

    HM1800R pro

    Productivity fully increased with thin paper printing breakthrough

    HM1800P4

    High Speed Roll-to-roll Dye-sublimation Printer

    HM1800R8

    Industrial high-speed Roll-to-Roll dye-sublimation digital printer
