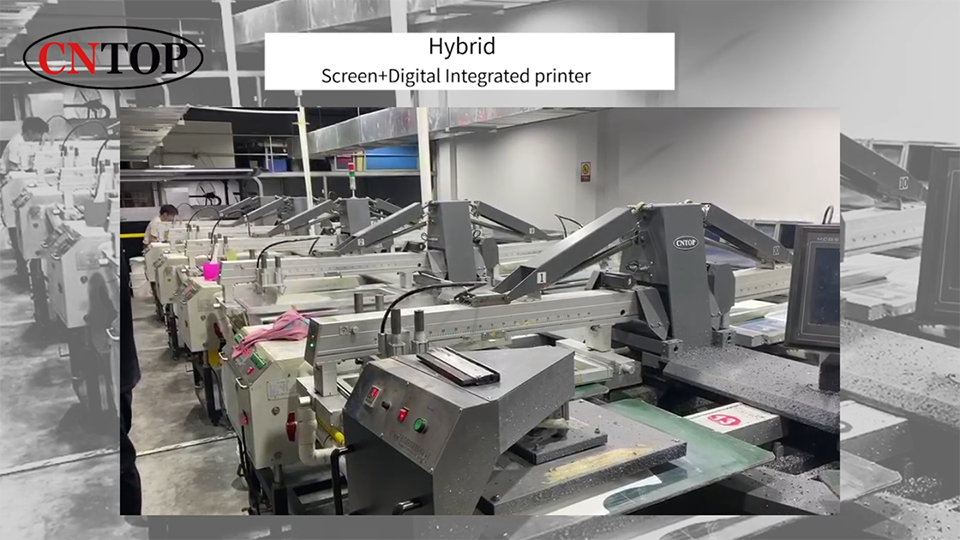

Hybrid

Screen+Digital Integrated printer

Traditional printing+ CMYK digital printing, fusion of screen & digital

Production efficiency up to 450pcs/h

Printing resolution reaches 600*1200dpi and above

Bright and multiple colour with minimum screens and processes

Mature ink solution matches with a wide range of sizes and fabrics

· Advantage · Parameters

D10B Main parameters of digital machine
Print	Productivity (A4 size):400pcs/h Printing Height:3-15mm (0.12"0.59") Max. Image Area:6570cm (25.59"*27.56") Fabric Types: Natural fibers, synthetic fibers, nylon, polyester, etc.
Printheads	Printheads Quantity:10 Printheads:Grayscale Industrial Printhead Printing Resolution:600*1200dpi Cleaning System:Automatic cleaning system Moisturizing:Non-contact Moisturizing
Machine	Overall Size:294180190cm (LWH)(115.75"70.87"74.80") G.W.:1500kg
Ink	Ink Type:Pigment ink Ink Channel:CMYK
Software	RIP Software:Hybrid dedicated RIP software Operating:Windows
Requirements	Temperature:25℃±2℃ Relative Humidity:60%-70% Power Supply:AC220V,1ph,10A,50/60Hz,4kW Compressed Air:0.1m³/min,0.7Mpa
D08/D12B/D14B/D16 Main parameters of digital machine
Print	Productivity (A4 size):300-450pcs/h Printing Height:3-15mm (0.12"0.59") D08/D16Max. Image Area:4260cm (16.54"23.62") D12BMax. Image Area:3160cm (12.20"23.62) D14BMax. Image Area:3660CM (14.17"*23.62") Fabric Types: Natural fibers, synthetic fibers, nylon, polyester, etc.
Printheads	Printheads Quantity:8/12/14/16 Printheads:Grayscale Industrial Printhead Printing Resolution:600*1200dpi Cleaning System:Automatic cleaning system Moisturizing:Non-contact Moisturizing
Machine	Overall Size:264121219cm (LWH)(103.94"47.64"86.22") G.W.:1200kg
Ink	Ink Type:Pigment ink Ink Channel:CMYK
Software	RIP Software:Hybrid dedicated RIP software Operating:Windows
Requirements	Temperature:25℃±2℃ Relative Humidity:60%-70% Power Supply:AC220V,1ph,10A,50/60Hz,4kW Compressed Air:0.1m³/min,0.8Mpa
KTY8 Main parameters of digital machine
Print	Productivity (A4 size):350pcs/h Printing Height:3-20mm (0.12"0.79") Max. Image Area:9070cm (35.43"*26.56') Fabric Types: Natural fibers, synthetic fibers, nylon, polyester, etc.
Printheads	Printheads Quantity:8 Printheads:Grayscale Industrial Printhead Printing Resolution:600*800dpi/1200dpi Cleaning System:Automatic cleaning system Moisturizing:Non-contact Moisturizing
Machine	Overall Size:294180190cm (LWH)(115.75"70.87"74.80") G.W.:1500kg
Ink	Ink Type:Pigment ink Ink Channel:CMYK
Software	RIP Software:Hybrid dedicated RIP software Operating:Windows
Requirements	Temperature:25℃±2℃ Relative Humidity:60%-70% Power Supply:AC220V,1ph,10A,50/60Hz,4kW Compressed Air:0.1m³/min,0.9Mpa
KTY12 Main parameters of digital machine
Print	Productivity (A4 size):400pcs/h Printing Height:3-20mm (0.12"0.79") Max. Image Area:9070cm (35.43"*26.56') Fabric Types: Natural fibers, synthetic fibers, nylon, polyester, etc.
Printheads	Printheads Quantity:12 Printheads:Grayscale Industrial Printhead Printing Resolution:600*800dpi/1200dpi Cleaning System:Automatic cleaning system Moisturizing:Non-contact Moisturizing
Machine	Overall Size:294180190cm (LWH)(115.75"70.87"74.80") G.W.:1500kg
Ink	Ink Type:Pigment ink Ink Channel:CMYKRG
Software	RIP Software:Hybrid dedicated RIP software Operating:Windows
Requirements	Temperature:25℃±2℃ Relative Humidity:60%-70% Power Supply:AC220V,1ph,10A,50/60Hz,4kW Compressed Air:0.1m³/min,0.10Mpa

Hybird

Automatic Digital Integrated Printer

Integration of Automatic Oval+CMYK Digital printing

● Pioneer in digital + oval printing mode, productivity up to 450pcs/h

● Data-variable greyscale printing, resolution up to 600x1200dpi and above

● Digital inkjet printing, creates simple printing process with no colour separation

● Bright and multiple colour with minimum screens, creates excellent colour fastness

● Specific digital ink, match with a wide range of sizes and fabrics

● Industry leading printing software and ink path control system make it a flowing printing solution

● Optional equipped with Digi-Screen and Robot Arm, realizing intelligent operation scenarios

● CNTOP self- developed Oval and Digital unit, full integration provides ultra-smooth user experience

● Over 10 years of rich experience in applying high-speed industrial-grade printhead, tens of thousands of practical printhead application cases to share with customers

● Service outlets cover the whole world, perfect pre-sale proofing and after-sale protection services, 24-hour feedback mechanism
