  • Single Pass Printer
  • Scanning Digital Printer

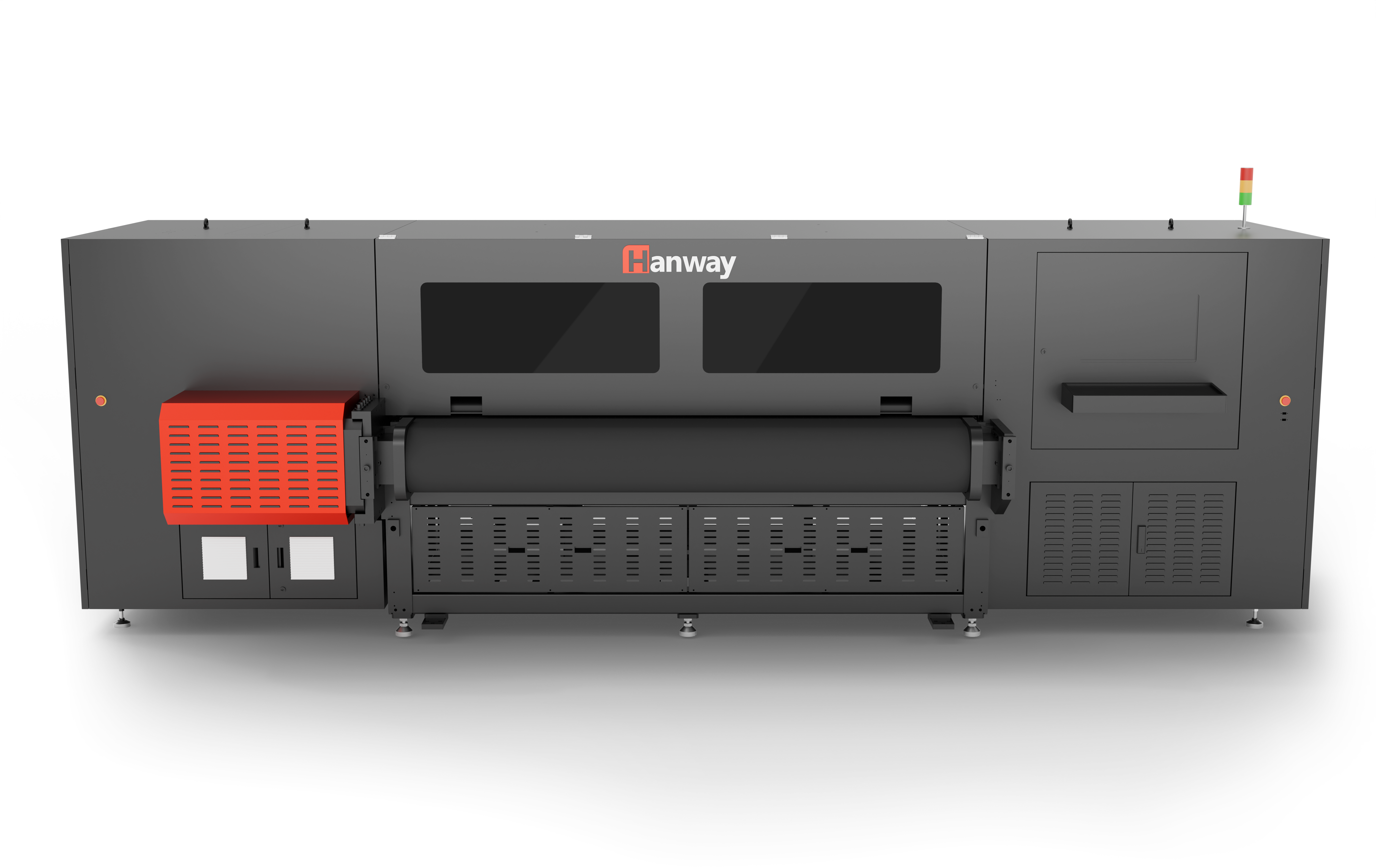

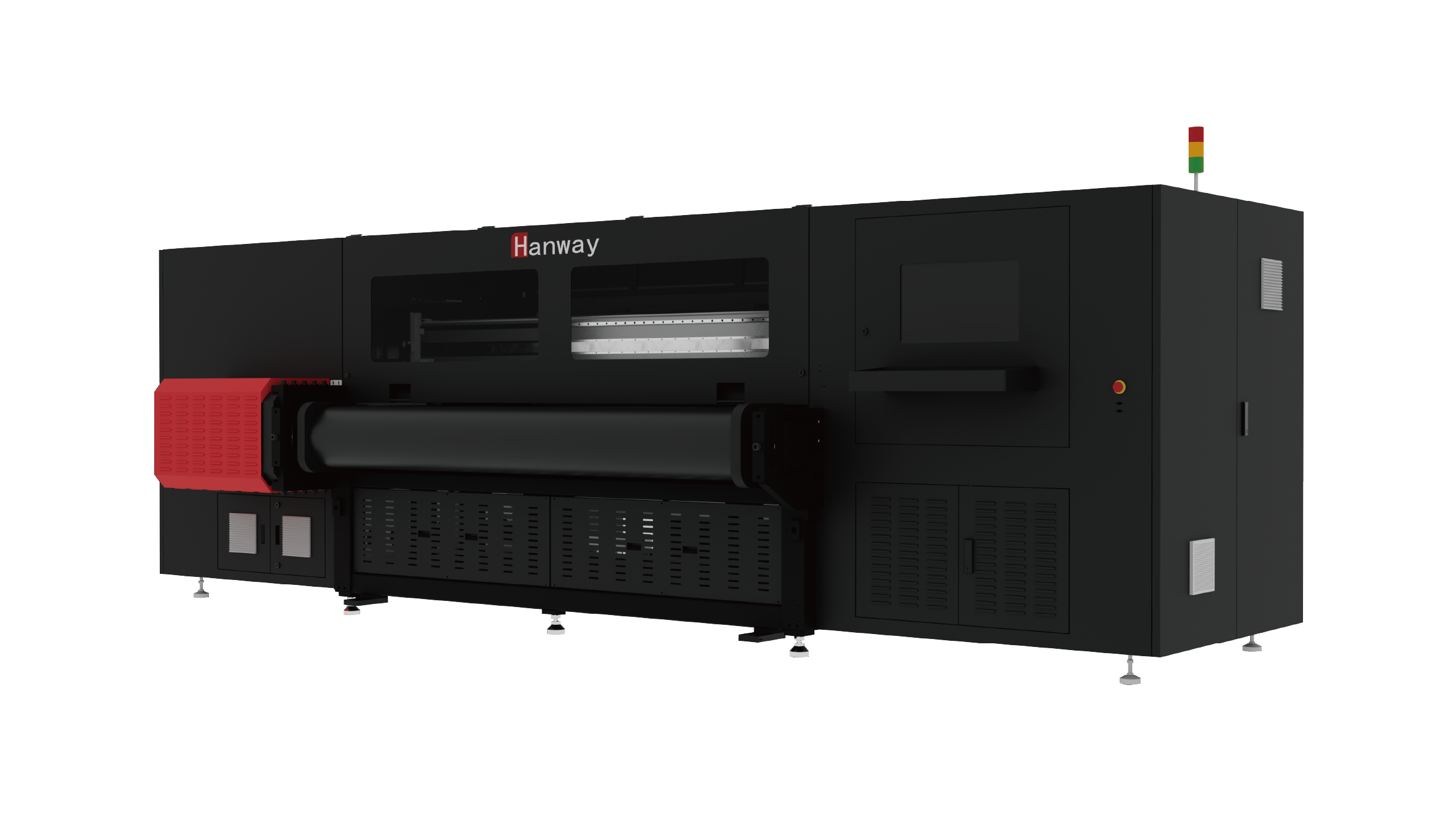

  • HighJet2500A

    Digital Corrugated Board Printer

    High cost performance to meet small batch order business

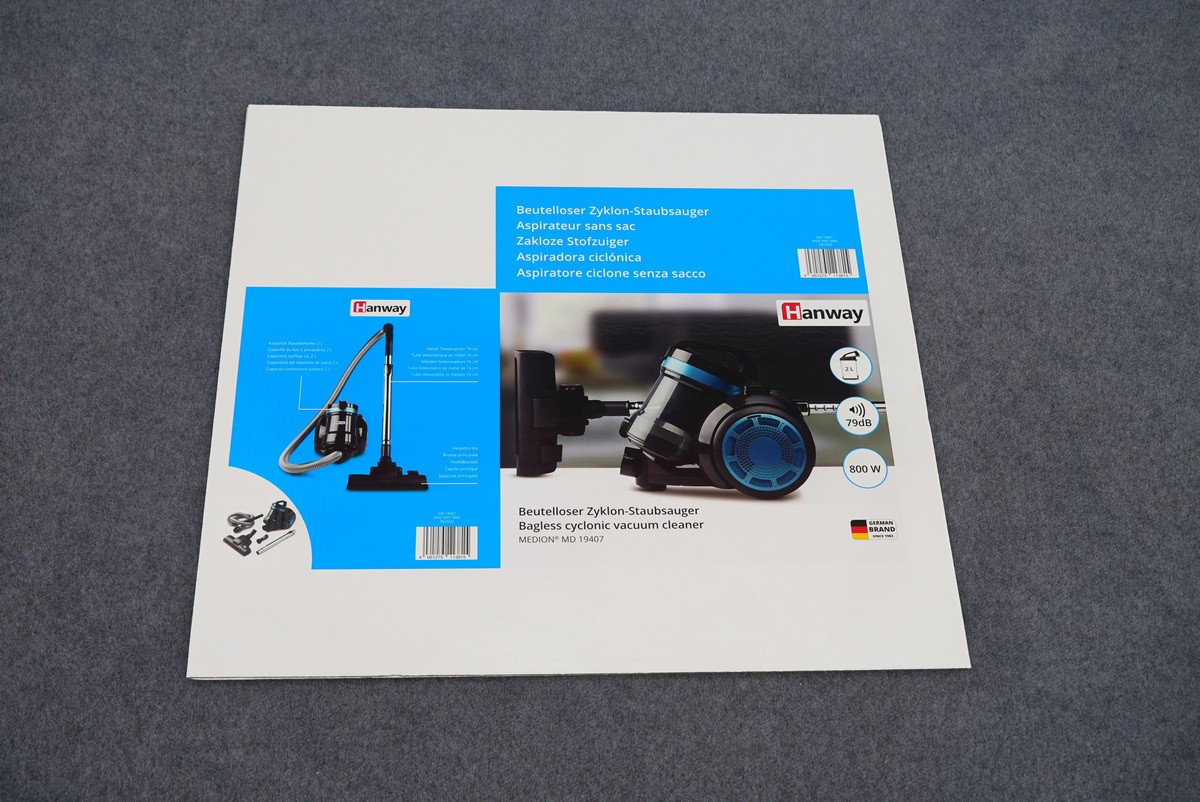

    Superior color performance on printing of brown and white krafts

    No pre-coating, flexible and convenient, safe and eco-friendly

    Model HighJet2500A
    Applications Craft / White / Customized etc.
    Ink Type Han FullColor Water-Based Ink
    Print head Industrial inkjet print heads with piezo technology
    Drying Air Cooling
    Ink Supply Automatic
    Features Double-row & 4-color, Inkjet Width 224mm
    Printing modes



    pass1pass2pass3pass4pass
    Resolution600x300600x600600x900600x1200
    Capacity600㎡/hr300㎡/hr195㎡/hr144㎡/hr
    MediaMax. Width:2500mm
    Automatic loading length:1350mm
    Manual loading length:4000mm
    Manual loading length:1.5-15mm
    Loading & Receiving SystemLoading:Auto,Receiving:Manual
    Software 3rd party RIP Software
    Input format PDF, JPEG, TIFF、AI、CDR etc.
    Space Requirement 6800 mm (W)*7100 mm (L)*2500 mm (H)
    Power Triple 380,20A,50HZ, Total power 10KW
    Barometric pressure Pressure: ≥ 6Kg/cm² flow rate ≥34 liters/min.
    Operating environment Relative humidity:40%-60﹪; Environmental temperature: 18℃-28℃
    Measurement 4800 mm (W)*3800 mm (loading direction)*1900 mm (H)
    Net Weight 3600 kg
    © The above information is for reference only. Shenzhen Hanway Industrial Digital Equipment Co., Ltd. reserves the right for final interpretation. If any modification happens, no notification will be made and the provisions of the contract shall prevail.
