    UV Hybrid Printer

    Maximum productivity: 104m²/h

    Maximum resolution: 1200*1200dpi

    Printhead: Kyocera Ricoh G5/G6

    Model HT3200UV
    Printhead RicohG5 RicohG6 Kyocera
    Quantity of printheads 4-8pcs(Double row) 4-8pcs(Double row) 4-8pcs(Double row)
    Resolution 1200*1200dpi
    Printing speed
    Draf 51㎡/h 74㎡/h 104㎡/h
    Production 36㎡/h 55㎡/h 75㎡/h
    Quality 24㎡/h 40㎡/h 53㎡/h
    Print mode Unidirectional and bidirectional
    Media type Various films and sheets such as soft film, knife cloth, 3P cloth, glass, ceramic tile, acrylic, PVC board, etc.
    Max width 3.2m
    Max media thickness 50mm
    Ink environmental friendly UV curable ink (excluding VOC)
    Ink color C、M、Y、K、Lc、Lm、W
    Image format Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
    Machine size 6.19m(L)*1.59m(W)*1.56m(H)
    Machine net weight 2260KG
    Machine gross weight 3130KG
    Power consumption 9.0KW(20A)
    Power supply 400VAC.50Hz 3P/N/PE
    Certification CE,FCC
    RIP support Caldera,Onyx optional
    UV curing LED curing
    Interface high speed PCIE
    Environment Seperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%
    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.

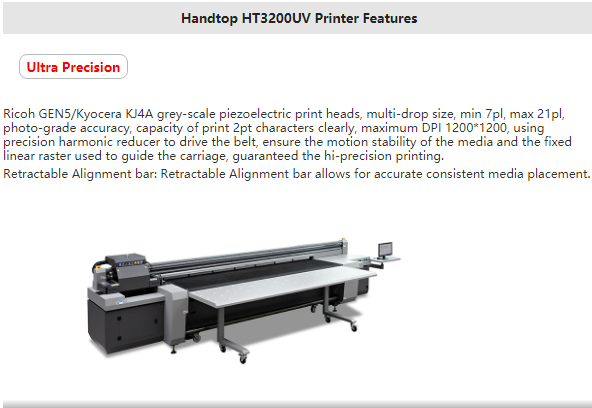

    HT3200UV(图1)

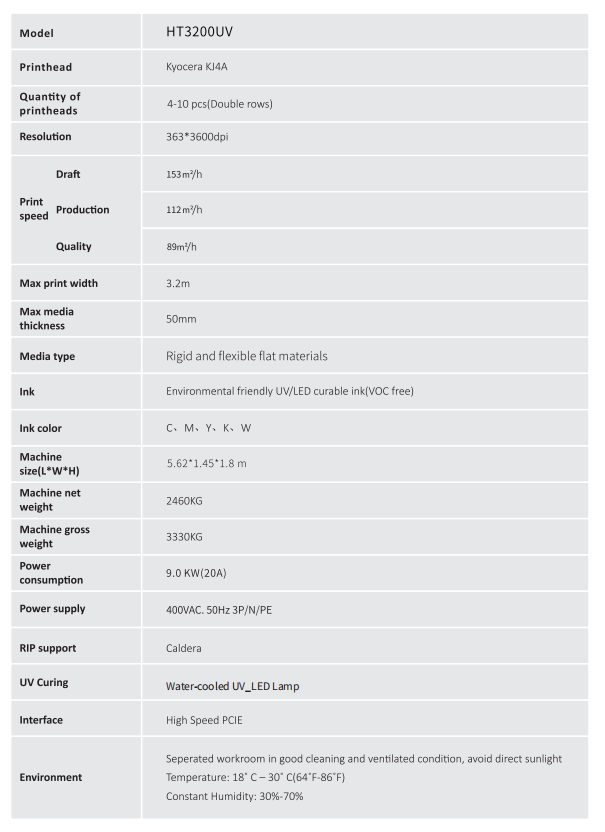

    HT3200UV(图2)

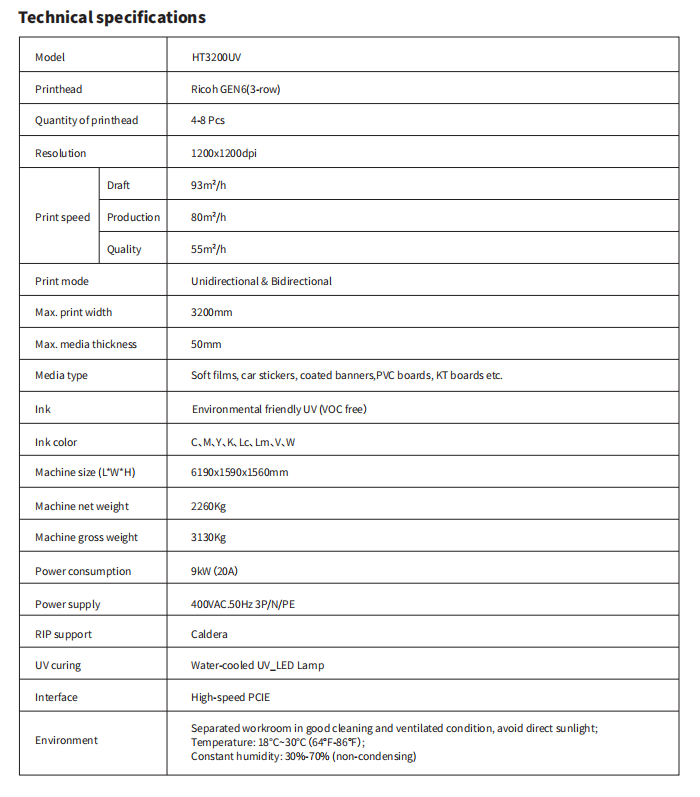

    HT3200UV(图3)

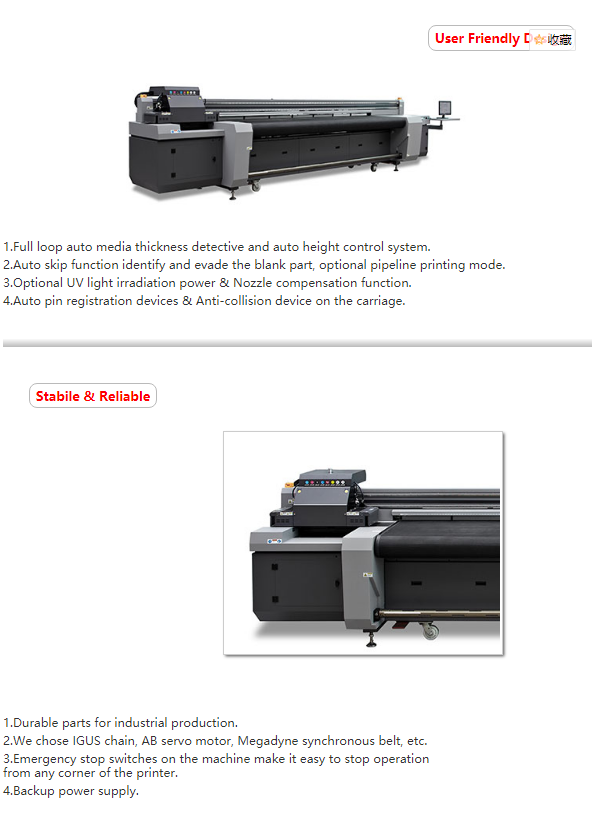

    HT3200UV(图4)
