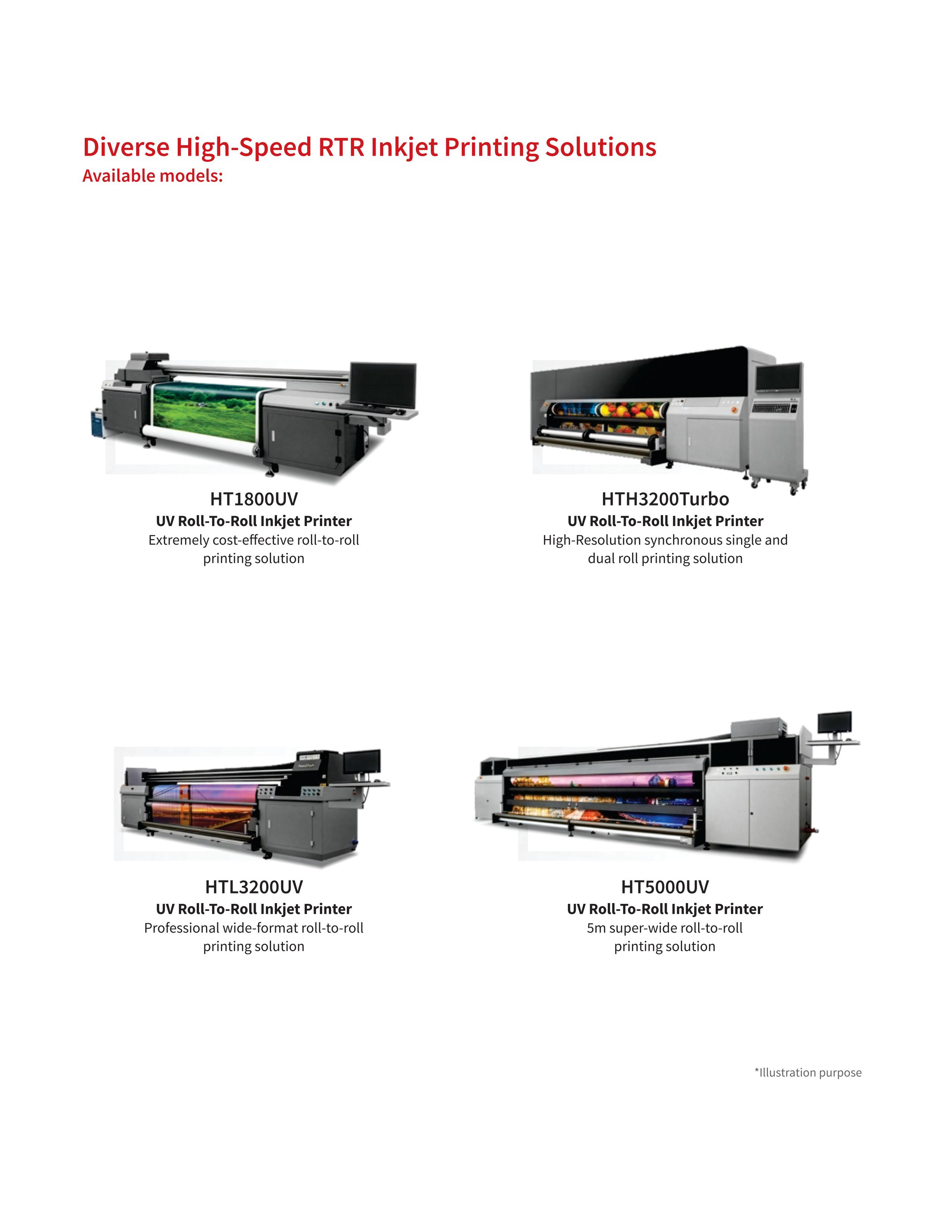

  • UV RTR Printer
    HTH3200Turbo HTL3200UV HT5000UV
  • High Speed Printer
    HT500-Single Pass HTA2500 Robo

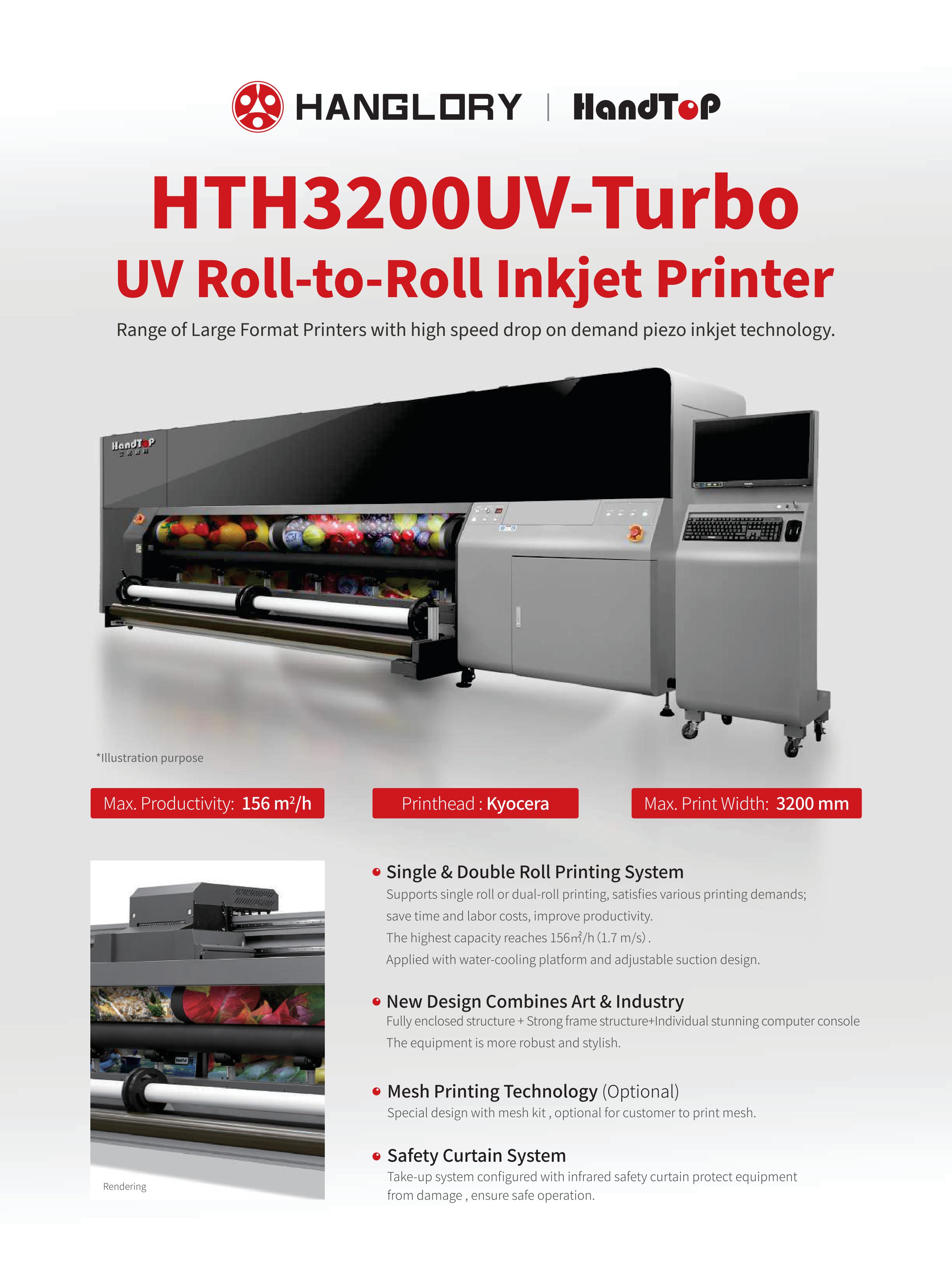

    • HTH3200Turbo

    UV Roll to Roll Printer

    Maximum productivity: 156m²/h

    Maximum resolution: 360*3600dpi

    Printhead: Kyocera

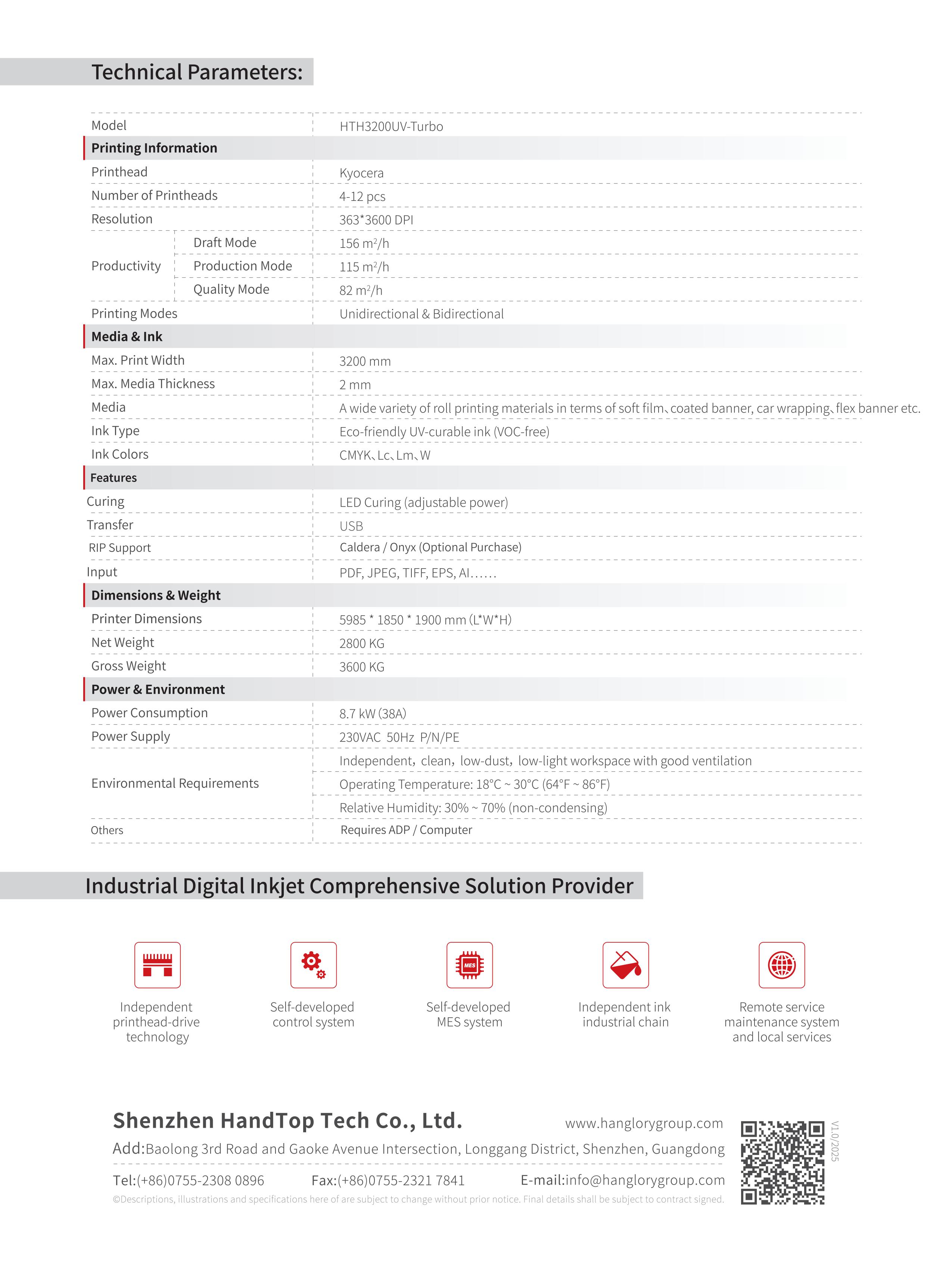

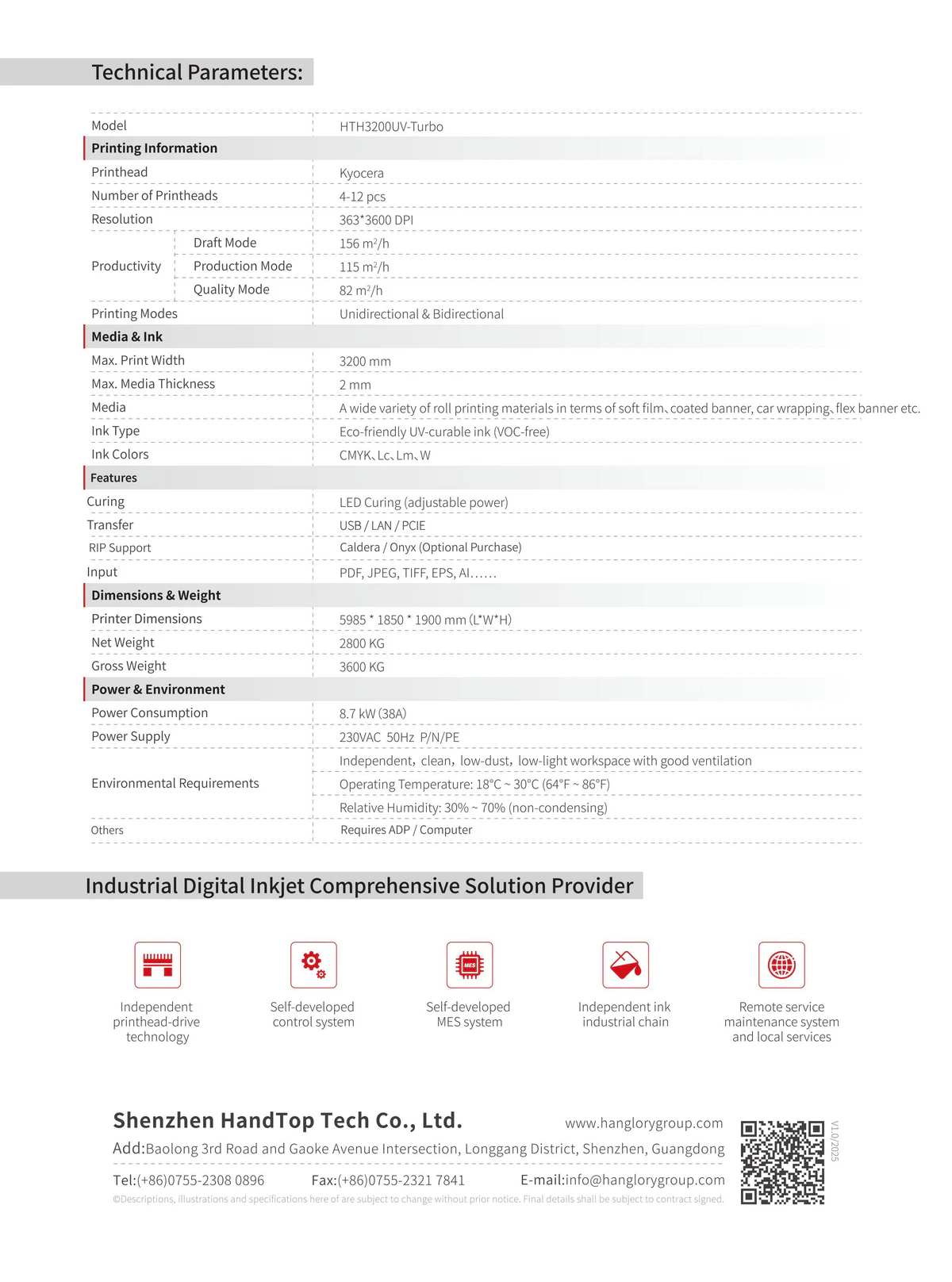

    · Advantage · Parameters
    ModelHTH3200UVTurbo


    PrintheadKyocera


    Quantity of printheads4-12pcs


    Resolution363*3600dpi


    Printing speed



    Draf156㎡/h


    Production115㎡/h


    Quality82㎡/h


    Media typeVarious films such as soft film, knife scraper cloth, car stickers, inkjet cloth, light film, etc.
    Max width3.2m


    Max media thickness2mm


    InkFlexible UV ink


    Ink colorC、M、Y、K、Lc、Lm、W
    Machine size5985(L)*1850(W)*1900mm(H)
    Machine net weight3100KG


    Machine gross weight3800KG


    Power consumption7.1KW(31A)


    Power supply230VAC.50Hz L/N/PE


    RIP supportCaldera，Onyx optional


    UV curingLED


    Interfacehigh speed PCIE


    EnvironmentSeperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%
    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.
