UV Hybrid Series
Empower UV Competitiveness
  • HT1600UV

    Easily competent for small and medium orders

  • UV Flatbed Printer
  • UV Hybrid Printer
  • UV RTR Printer

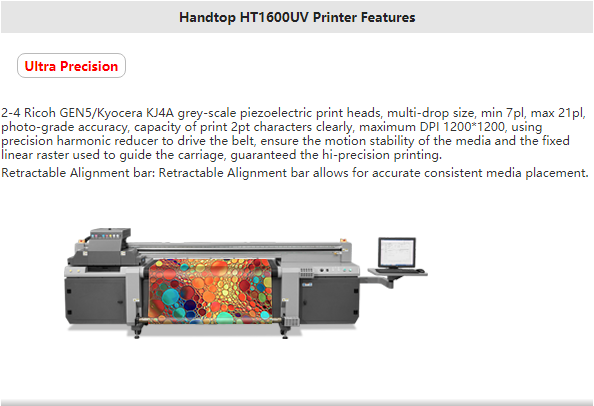

  • HT1600UV

    UV Hybrid Printer

    Maximum productivity: 52m²/h

    Maximum resolution: 1200*1200dpi

    Printhead: Kyocera Ricoh G5/G6

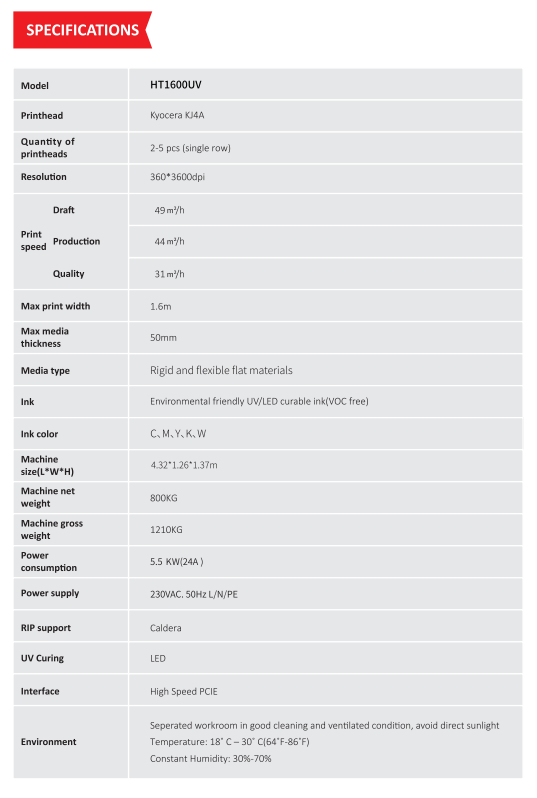

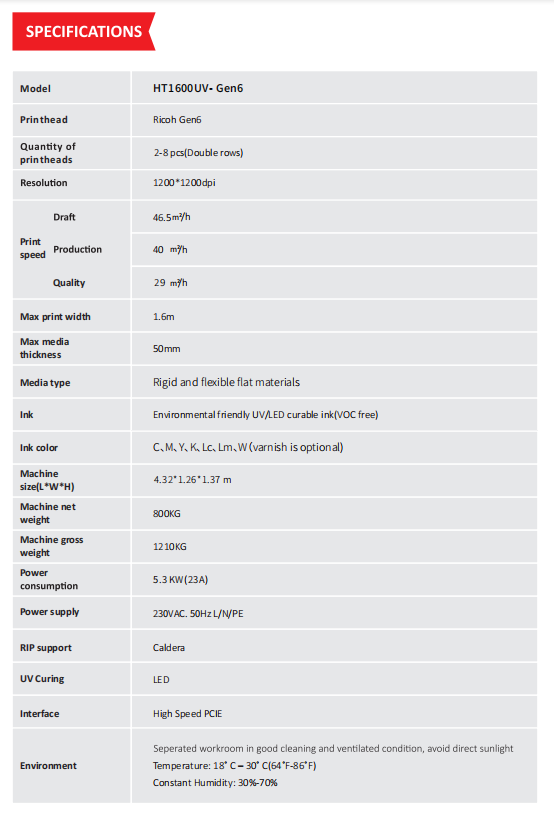

    ModelHT1600UV


    PrintheadRicoh Gen5Ricoh Gen6Kyocera
    Quantity of Printheads2-4pcs(single row)2-8pcs(Double row) 2-5pcs(single row)
    Resolution1200*1200dpi


    Printing speed



    Draf22㎡/h46.5㎡/h49㎡/h
    Production14㎡/h40㎡/h44㎡/h
    Quality10㎡/h29㎡/h31㎡/h
    Print modeUnidirectional and bidirectional


    Media typeVarious films and sheets such as soft film, knife cloth, 3P cloth, glass, ceramic tile, acrylic, PVC board, etc.


    Max width1.6m


    Max media thickness50mm


    Inkenvironmental friendly UV curable ink (excluding VOC)


    Ink colorC、M、Y、K、Lc、Lm、W(Varnish optional)


    Image formatAdobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI


    Machine size4.15m(L)*1.19m(W)*1.33m(H)


    Machine net weight760KG


    Machine gross weight1170KG


    Power consumption5.3KW(27A)


    Power supply230VAC.50Hz L/N/PE


    CertificationCE,FCC


    RIP supportCaldera,Onyx optional


    UV curingLED curing


    Interfacehigh speed PCIE


    EnvironmentSeperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%



    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.

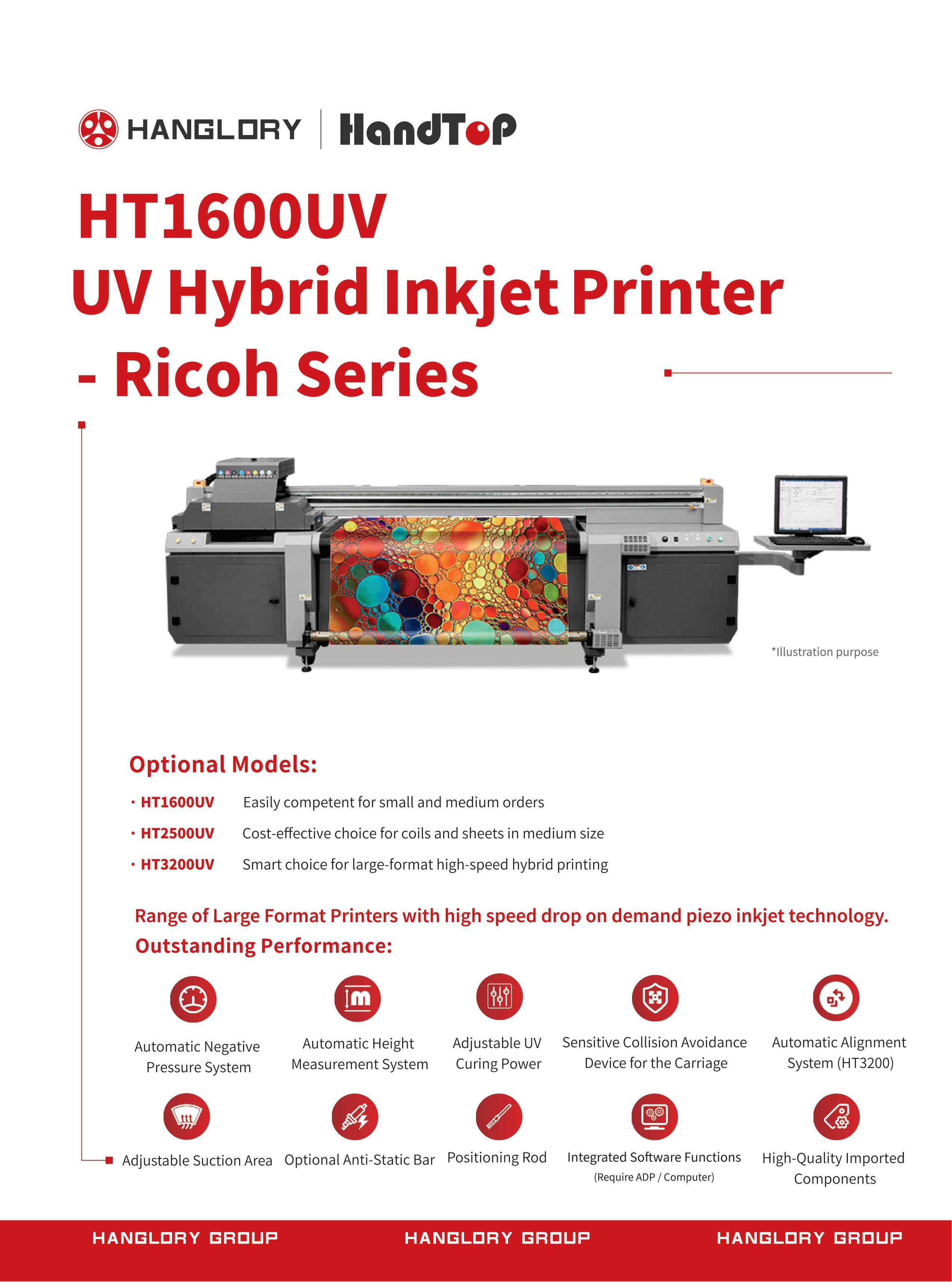

    HT1600UV(图2)

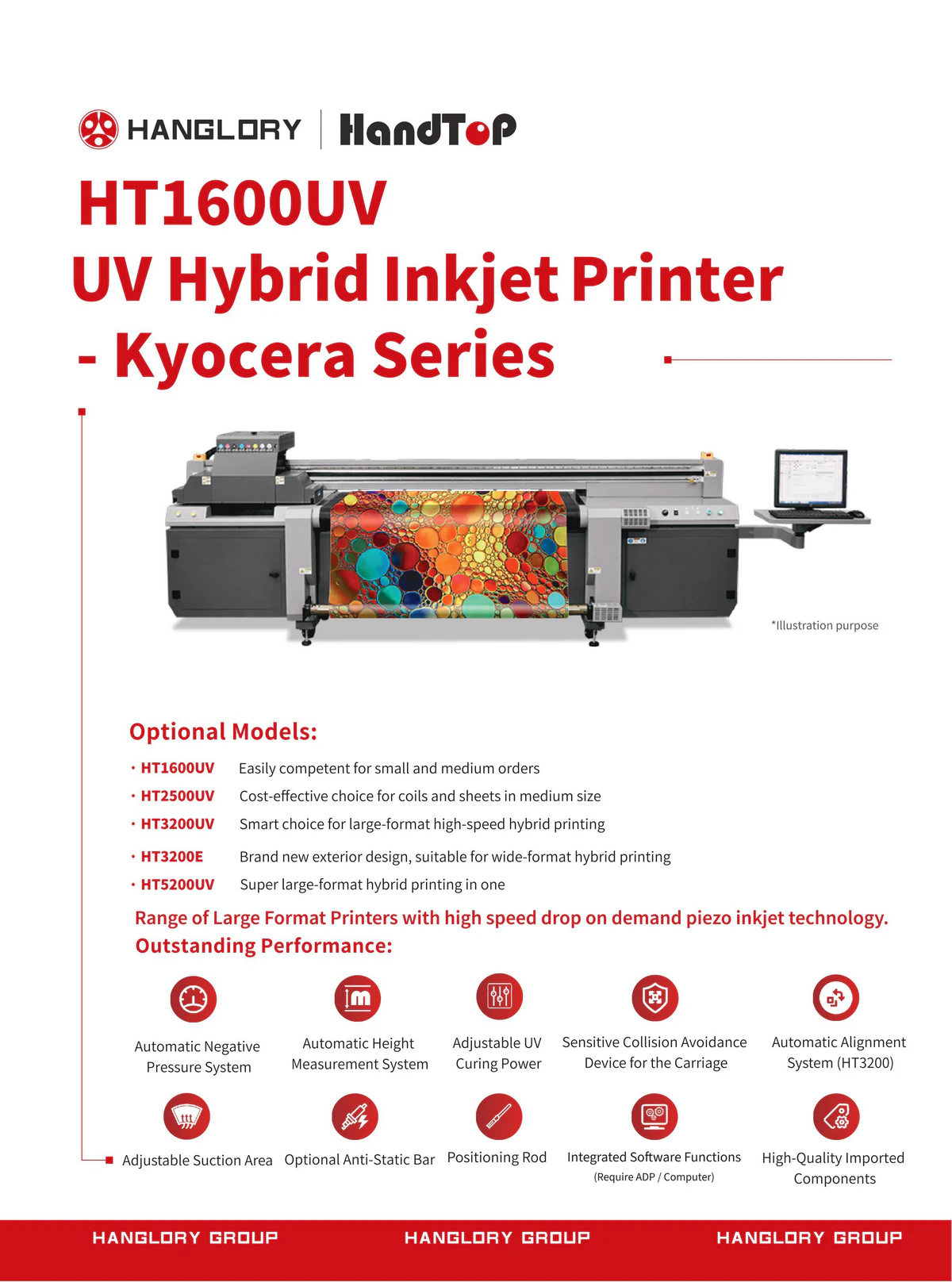

    HT1600UV(图3)

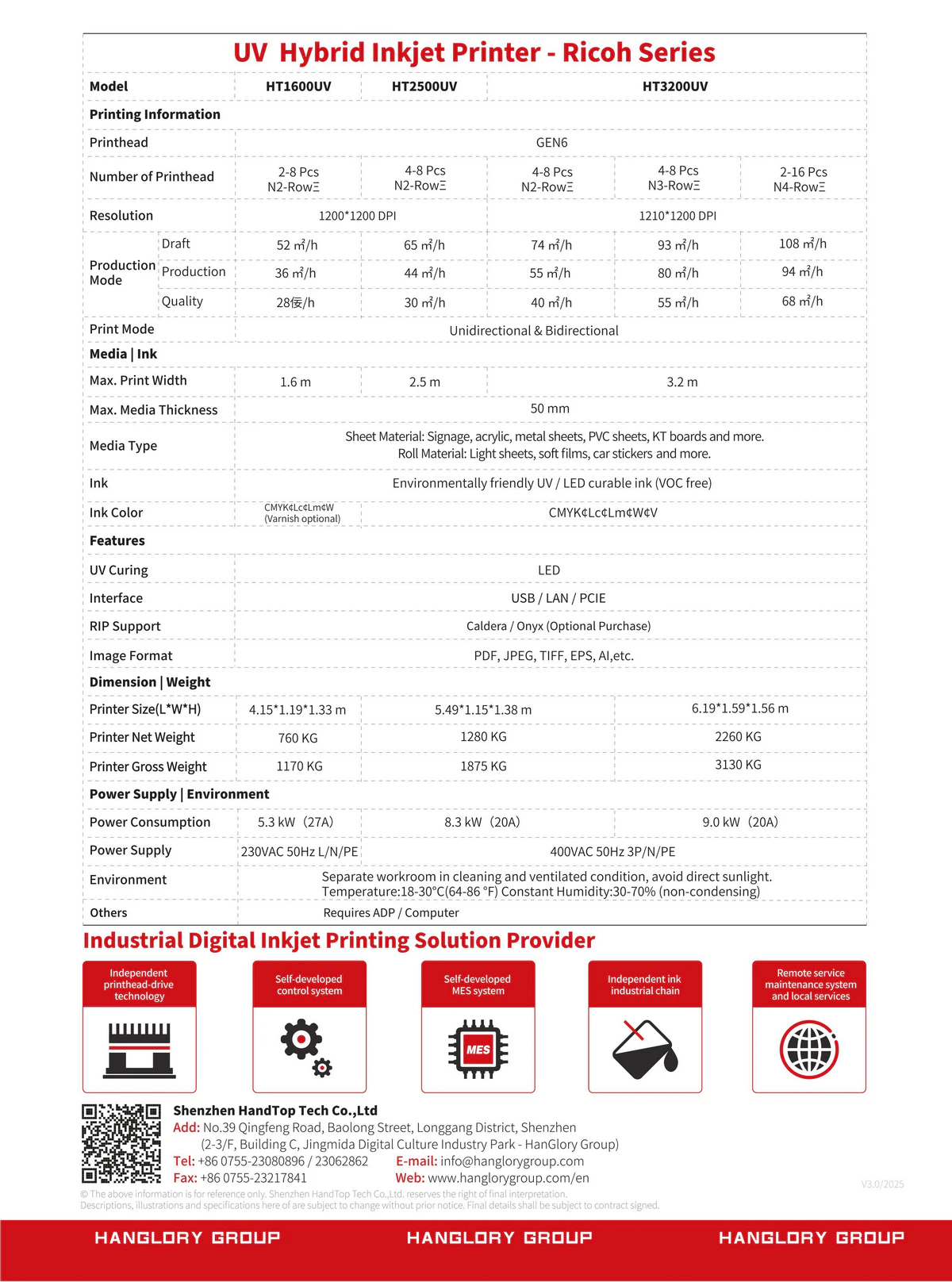

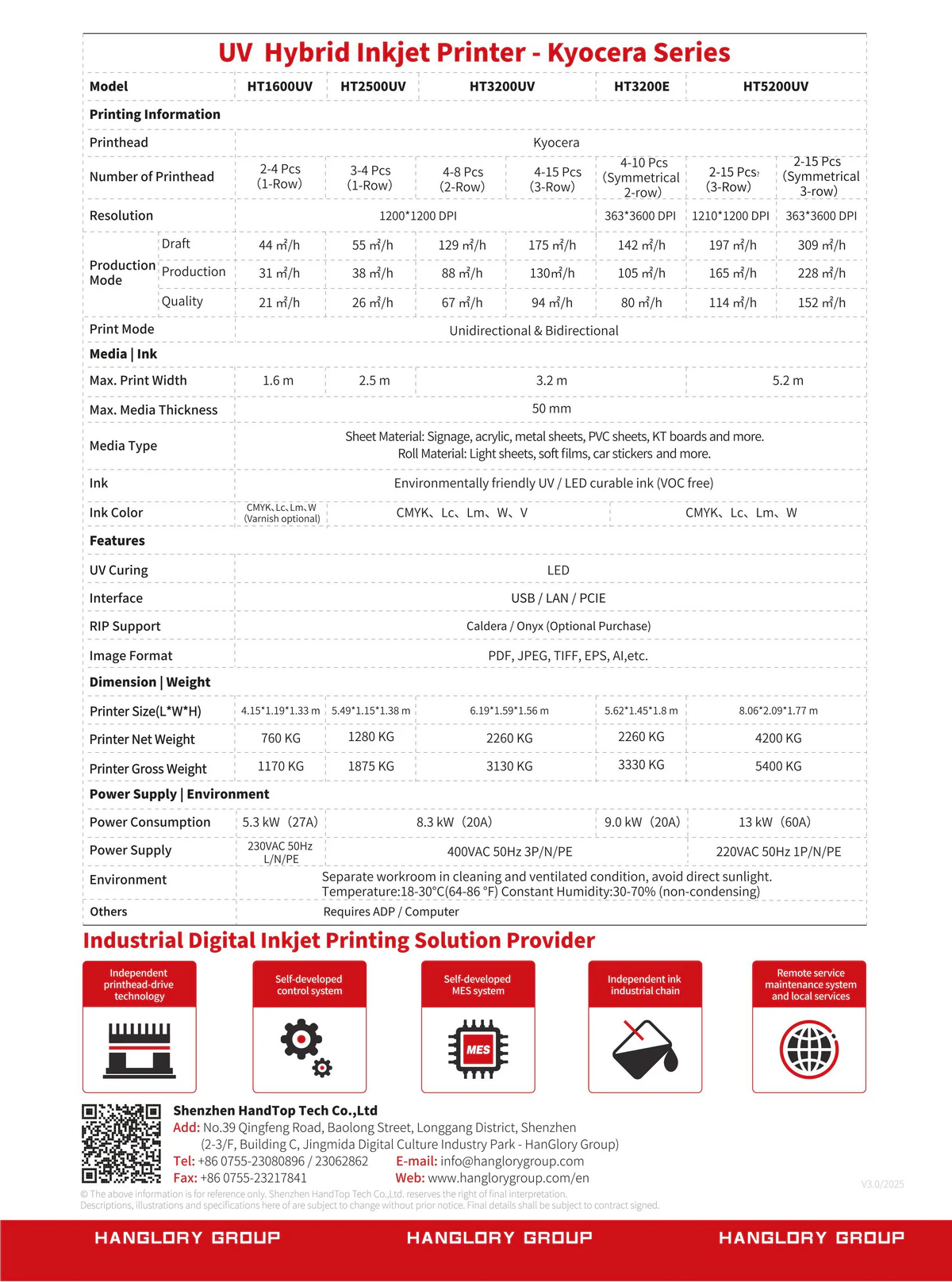

    HT1600UV(图4)
