UV Hybrid Printer

Overall improvement of business value

HTA2500 Robo

The productivity is up to 312㎡/h; high automation brings faster orders

HT1610UV HT2512UV HT3116UV HT3020UV

HT1600UV HT2500UV HT3200UV

HTH3200Turbo HTL3200UV HT5000UV

HT500-Single Pass HTA2500 Robo

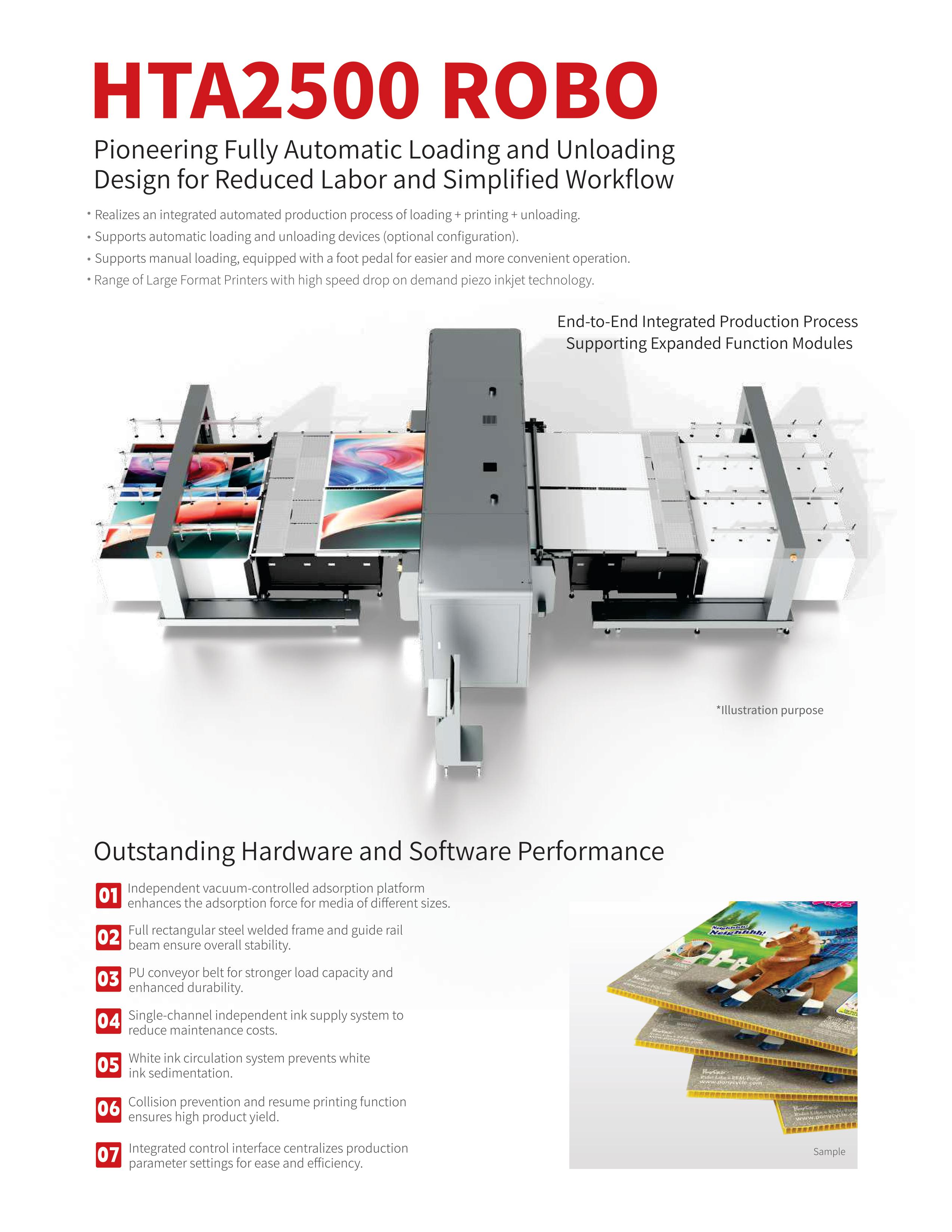

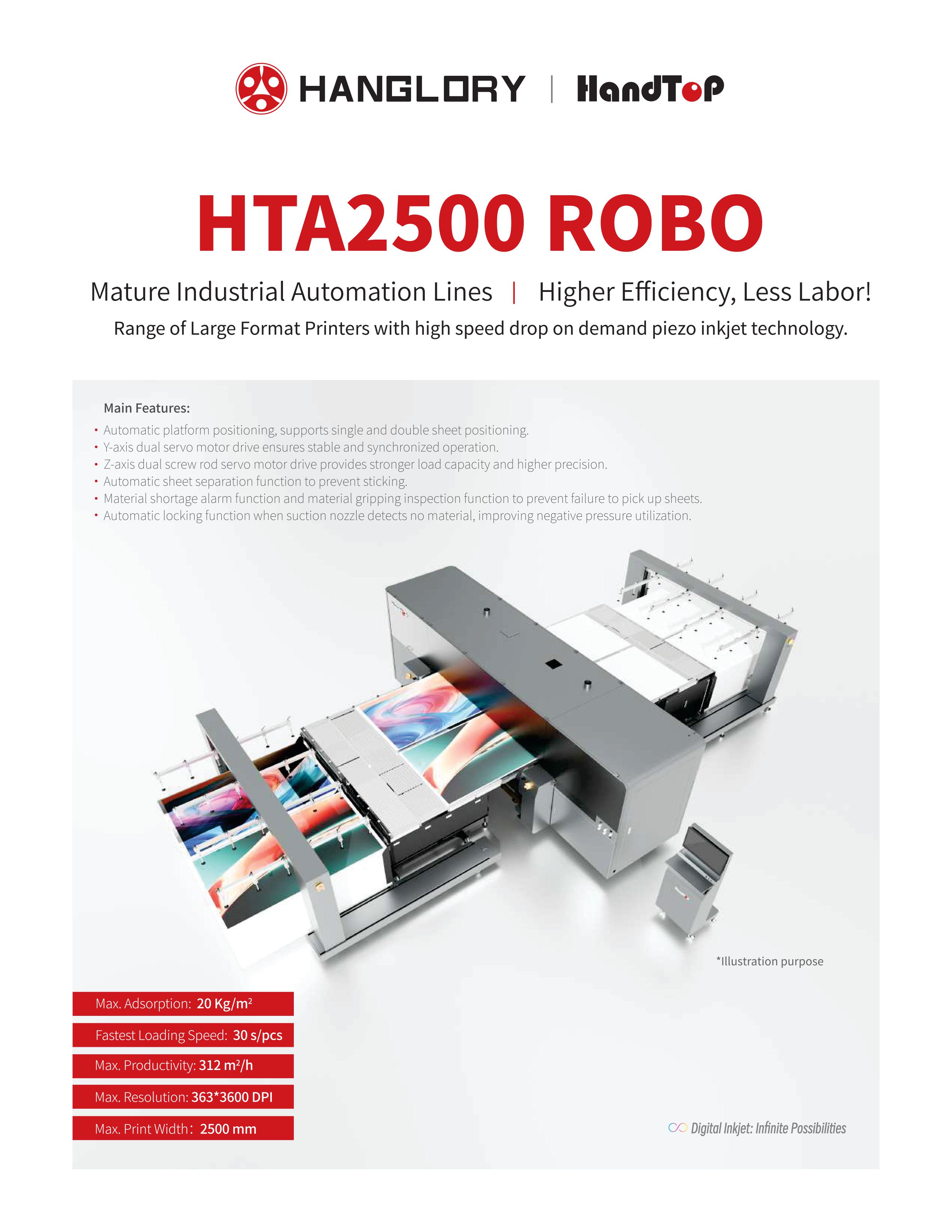

HTA2500 Robo

UV Hybrid Printer

Maximum productivity: 312㎡/h

Maximum resolution: 363X3600dpi

Print-head: Kyocera

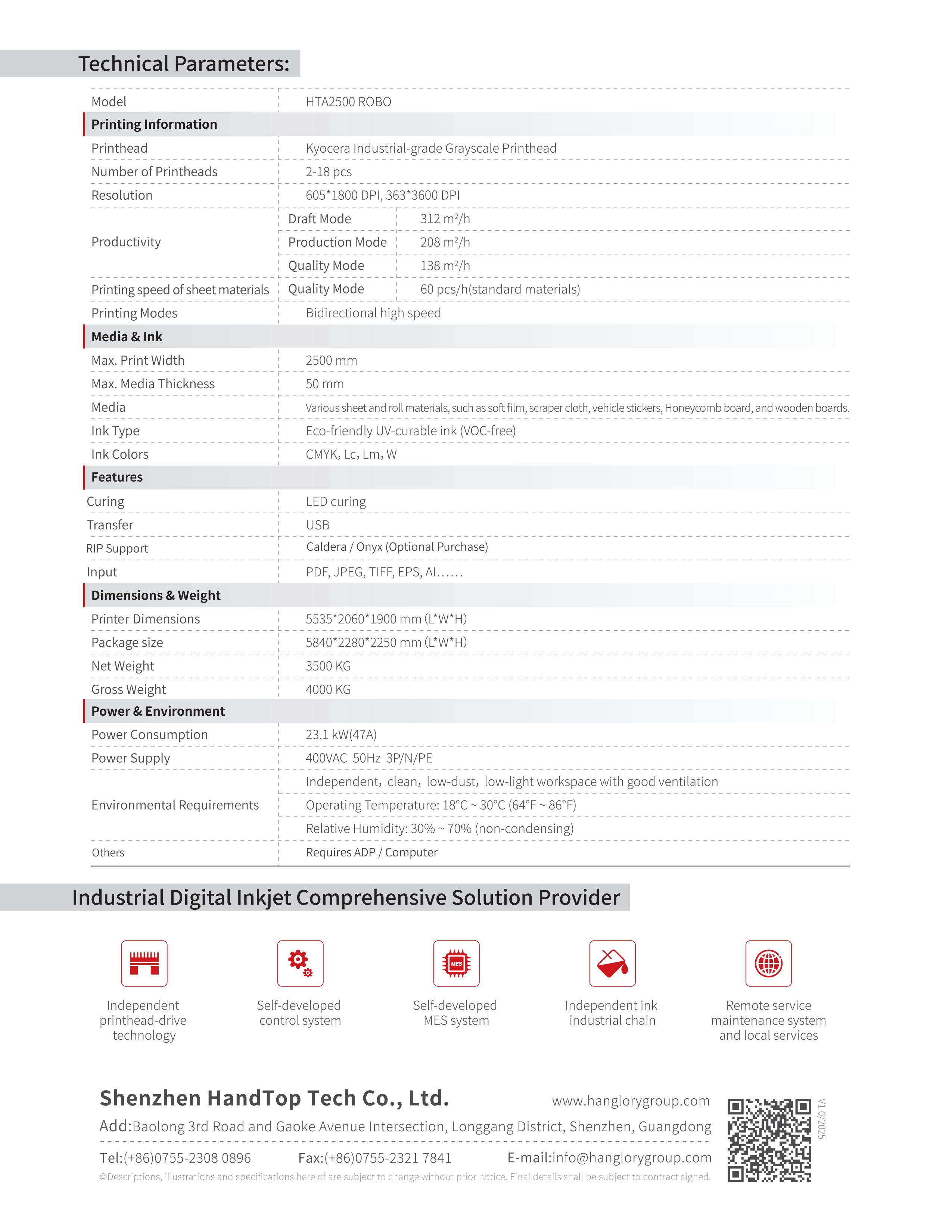

· Advantage · Parameters

Confifigurable Model	HTA2500 Robo
Max. Print Width	2.5m, support multi-sheet printing
Max. Media Thickness	50mm (depending on weight)
Max. Suction	20KG/sheet
Media Type	Rigid and flflexible flflat materials
Loading Method	Step Sucker
Air Supply	≥0.5MPa，600L/min
Machine Size (LWH)	4200X3500X1700mm (R is for a single loading & unloading system / a single unloading system)
Machine Net Weight	1200KG
Machine Gross Weight	1500KG
Power Consumption	2KW(9A)
Power Supply	220VAC 50HZ 1P/N/PE
Environment	Separate workroom in cleaning and ventilated condition, avoid direct sunlight Temperature: 18° C -30° C(64°F-86°F) Constant Humidity: 30%-70% (non-condensing)

new product

HandTop brand-new automatic loading and unloading solutions

UV printing industry is improved to automatic production from high-efficient production

HT2500 Robo

To improve your business value

Related scheme display
