  • HT5000UV

    UV Roll to Roll Printer

    Maximum productivity: 192m²/h

    Maximum resolution: 363*3600dpi

    Printhead: Kyocera

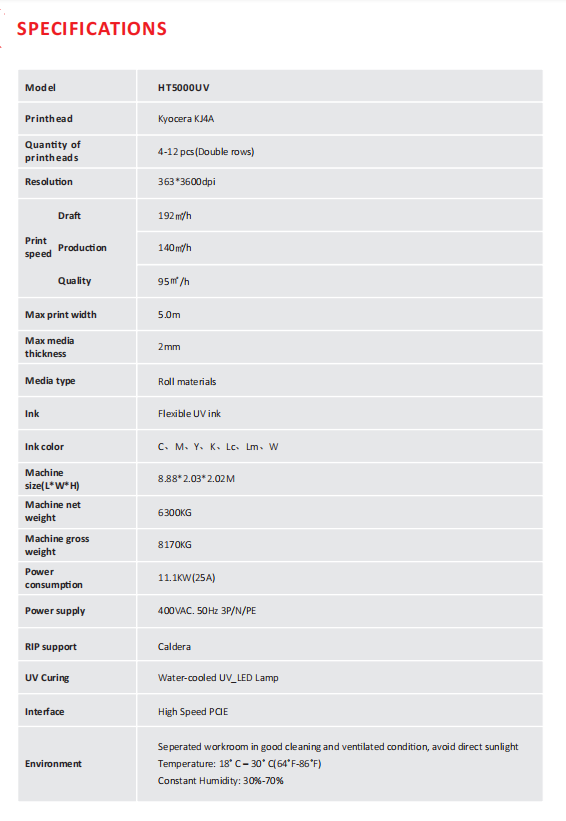

    ModelHT5000UV


    PrintheadKyocera


    Quantity of printheads4-12pcs


    Resolution363*3600dpi


    Printing speed



    Draf192㎡/h


    Production140㎡/h


    Quality95㎡/h


    Print modeUnidirectional and bidirectional


    Media typeVarious films such as soft film, knife cloth, 3P cloth, wallpaper, car stickers, inkjet cloth, grid cloth, light film, etc.
    Max width5m


    Max media thickness2mm


    InkFlexible UV ink


    Ink colorC、M、Y、K、Lc、Lm、W
    Machine size8.88m(L)*2.03m(W)*2.02m(H)
    Machine net weight6300KG


    Machine gross weight8170KG


    Power consumption11.1KW(25A)


    Power supply400VAC.50Hz 3P/N/PE


    RIP supportCaldera,Onyx optional


    UV curingLED


    Interfacehigh speed PCIE


    EnvironmentSeperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%
    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.

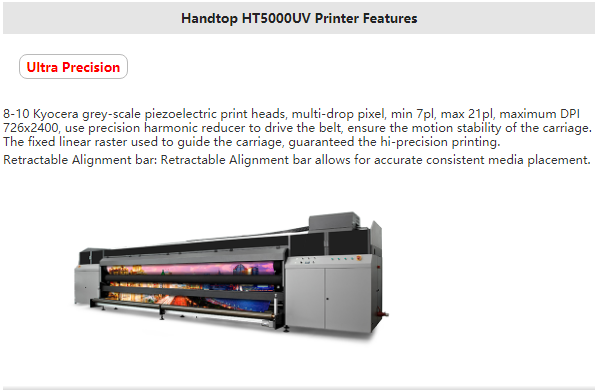

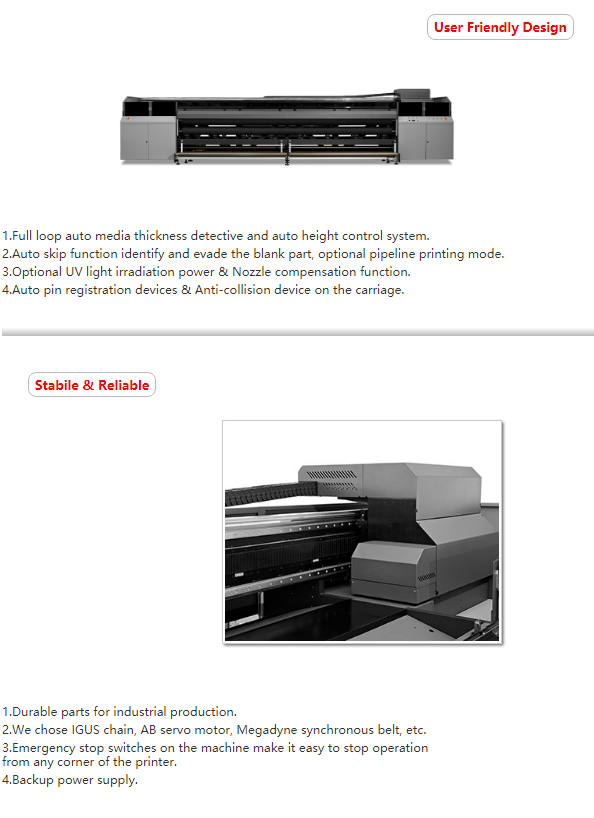

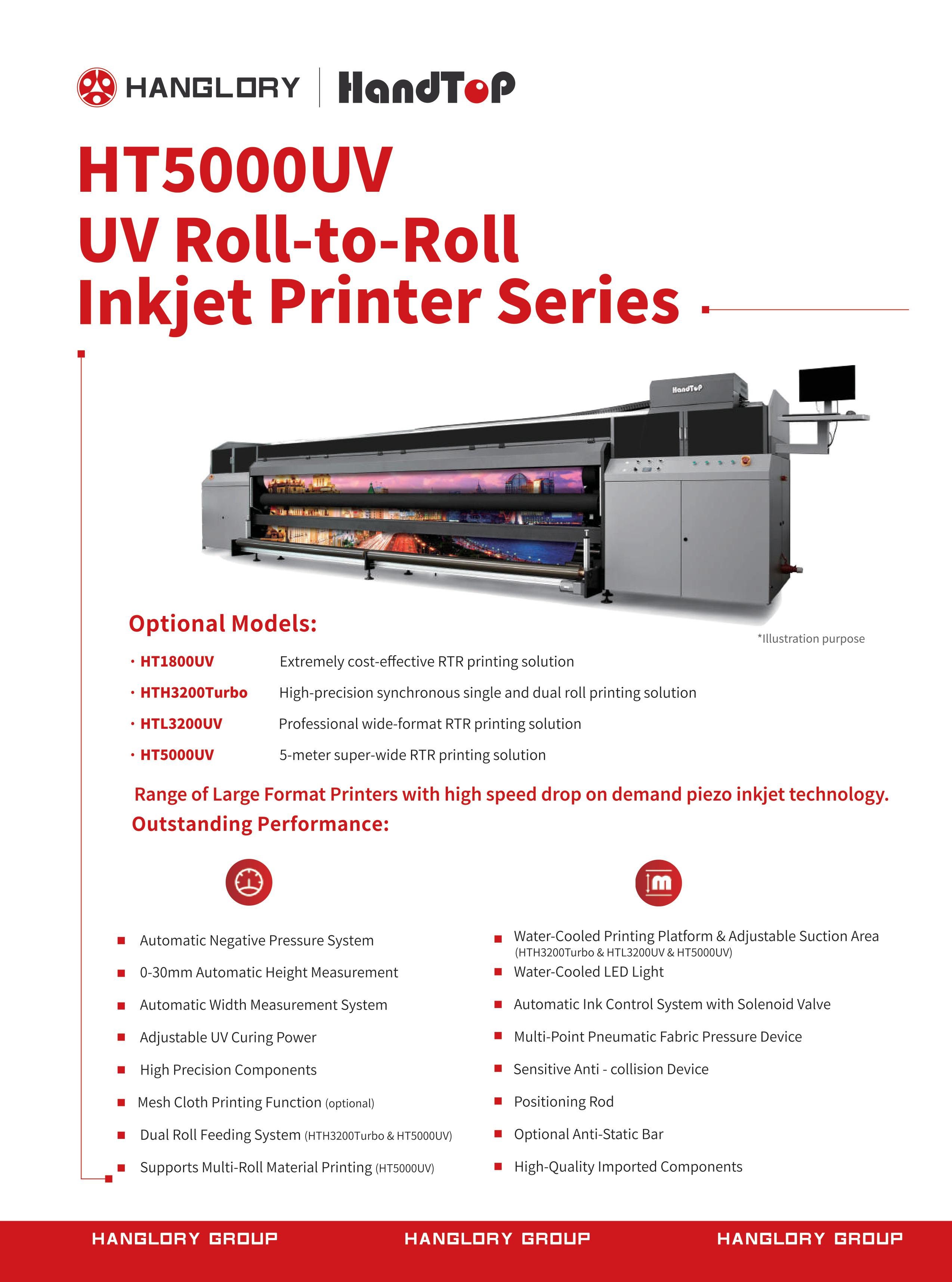

    HT5000UV(图1)

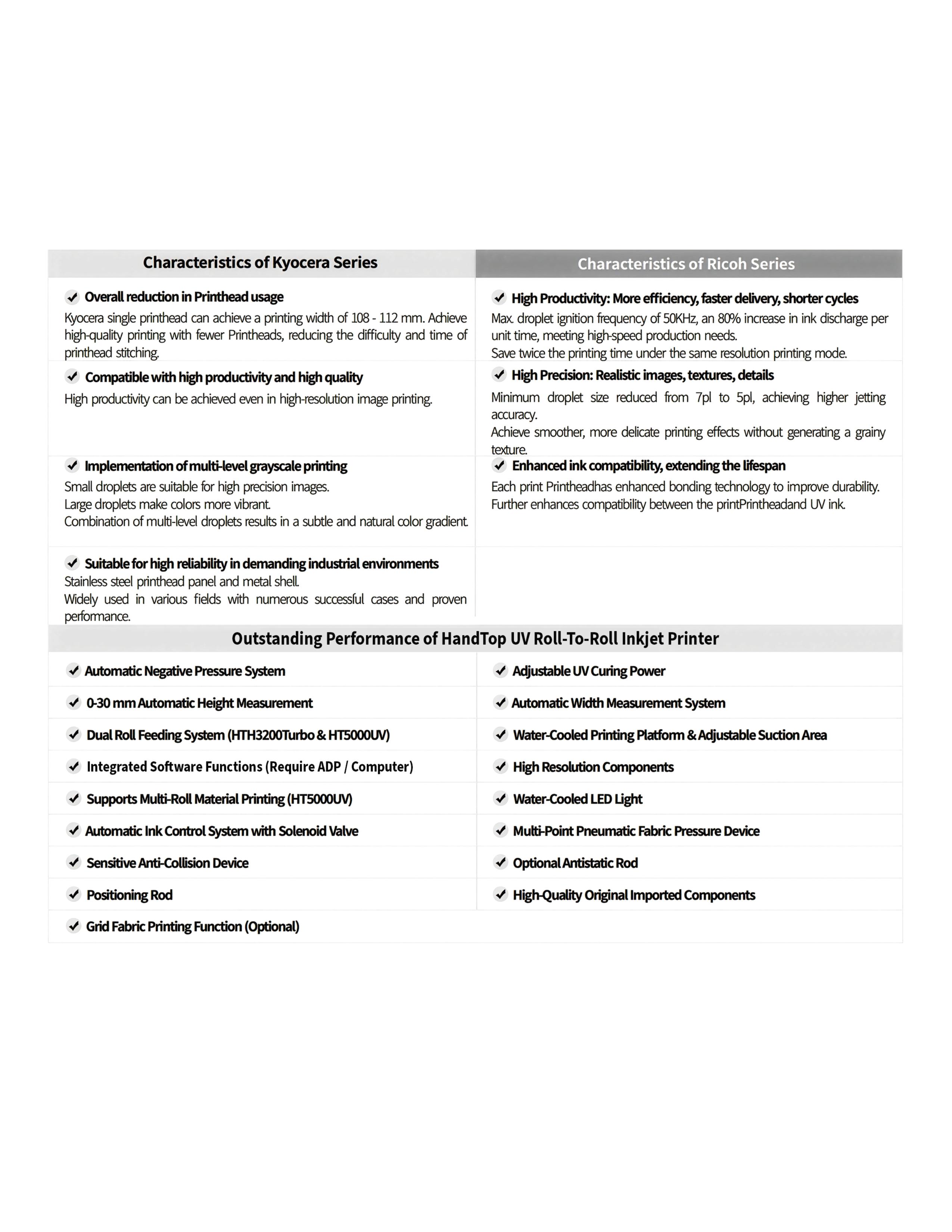

    HT5000UV(图2)

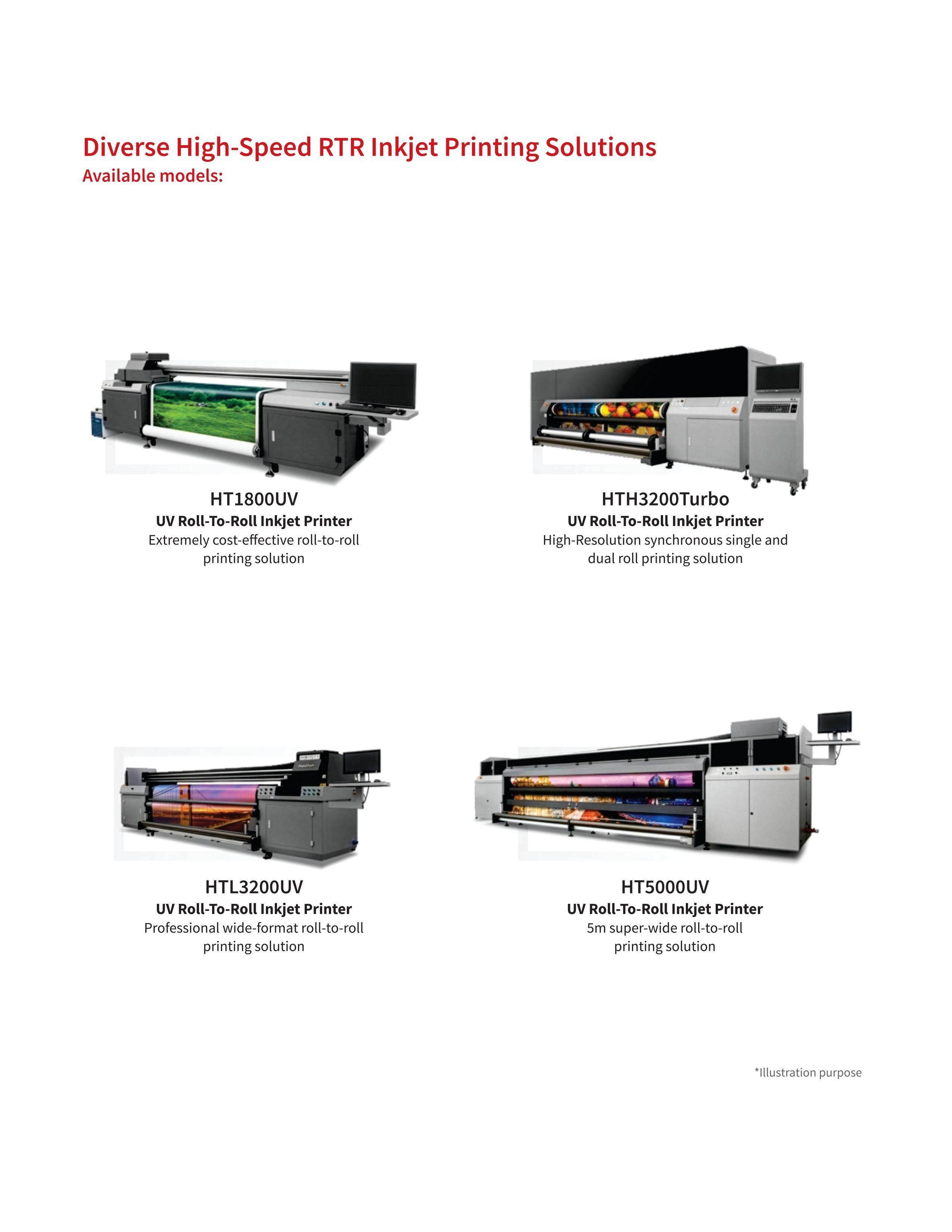

    HT5000UV(图3)

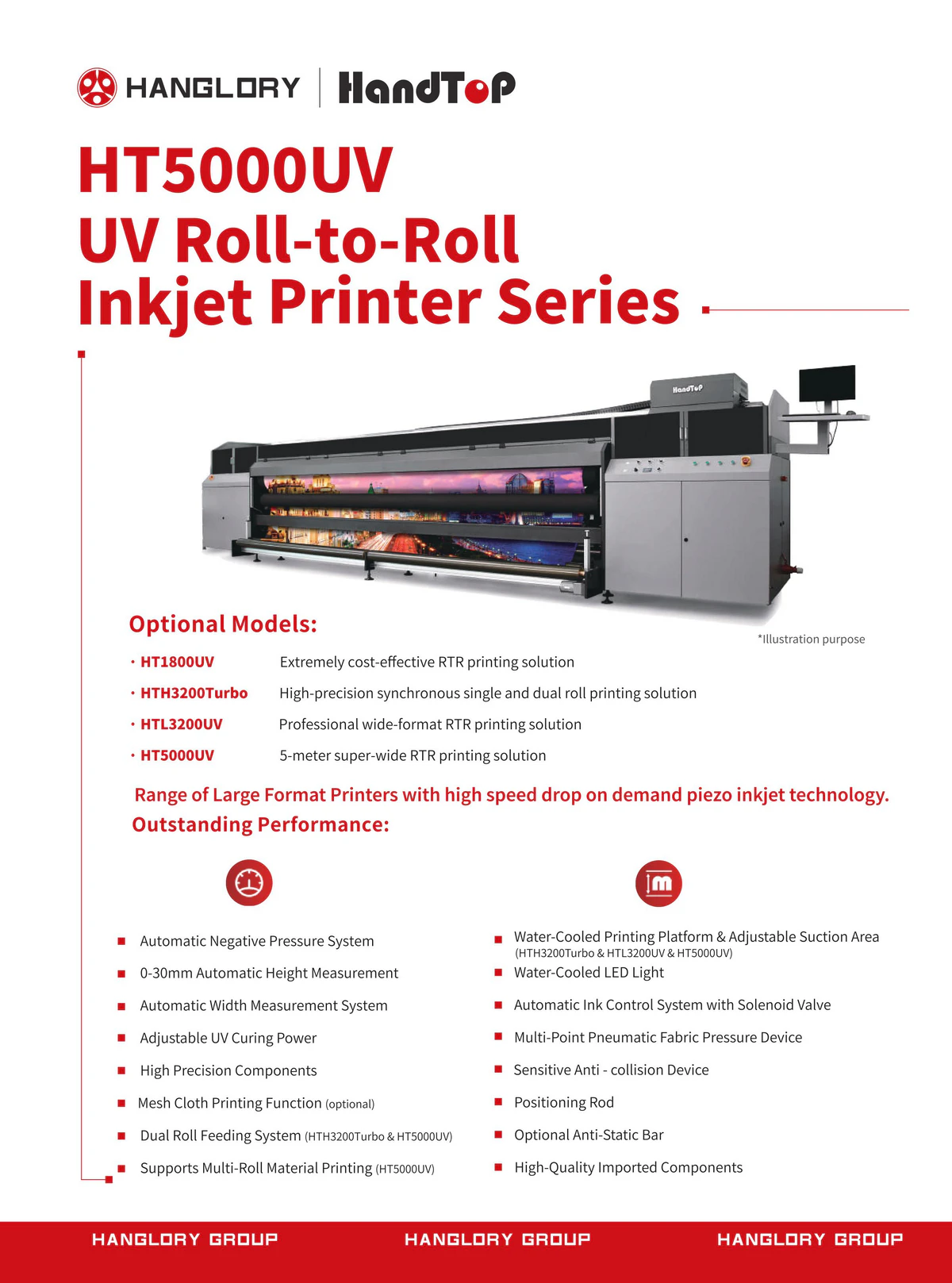

    HT5000UV(图4)

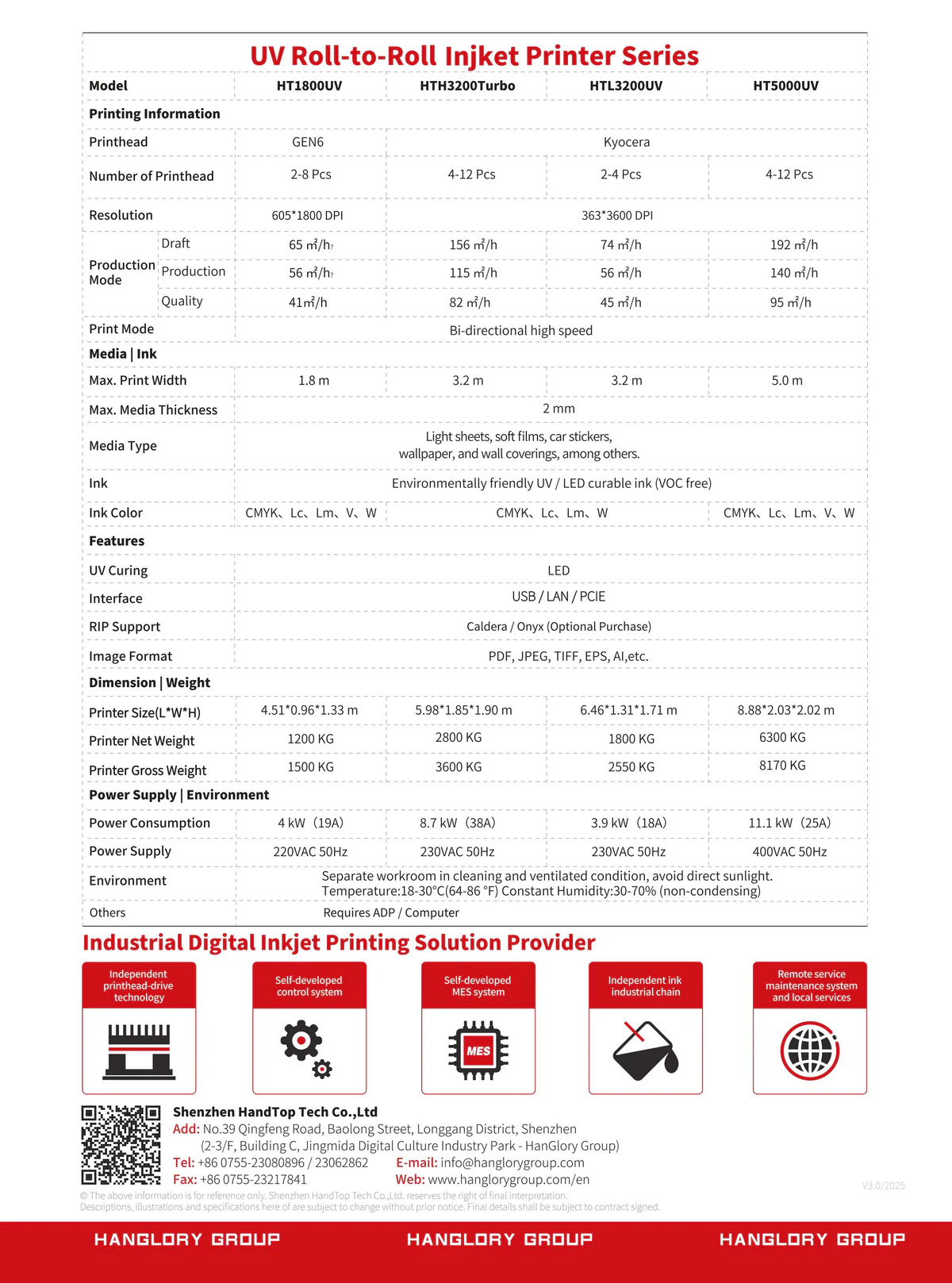

    HT5000UV(图5)
