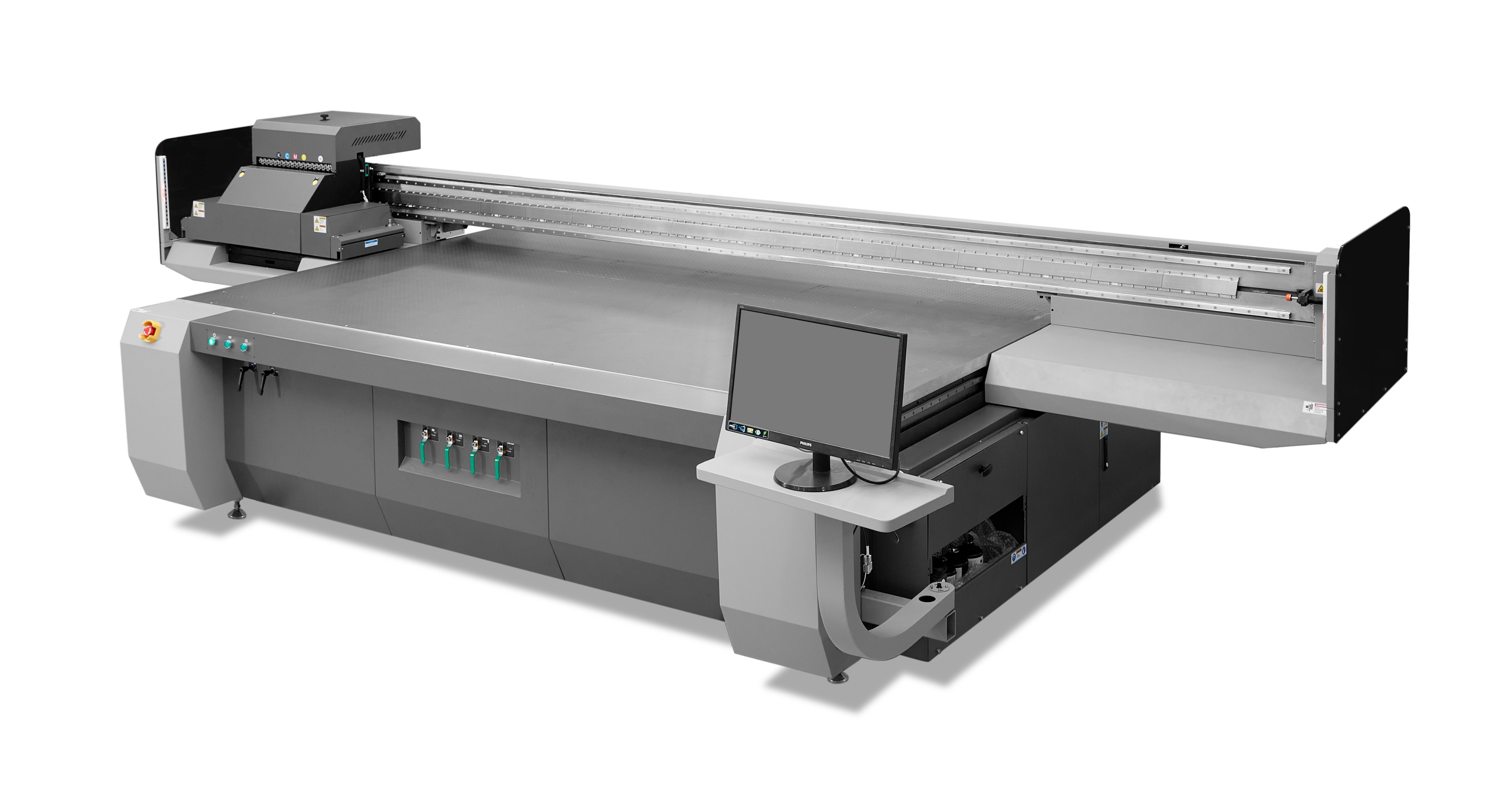

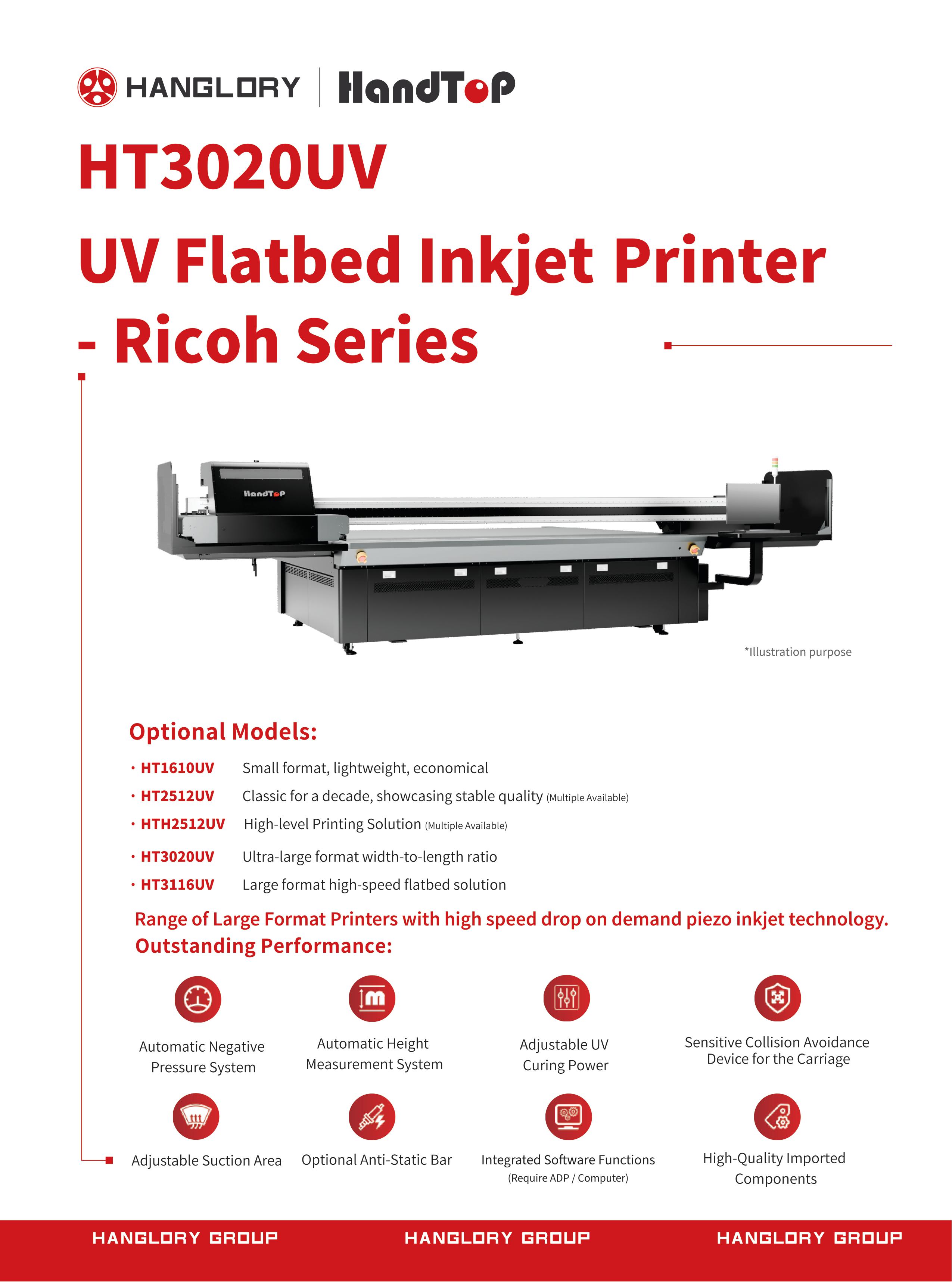

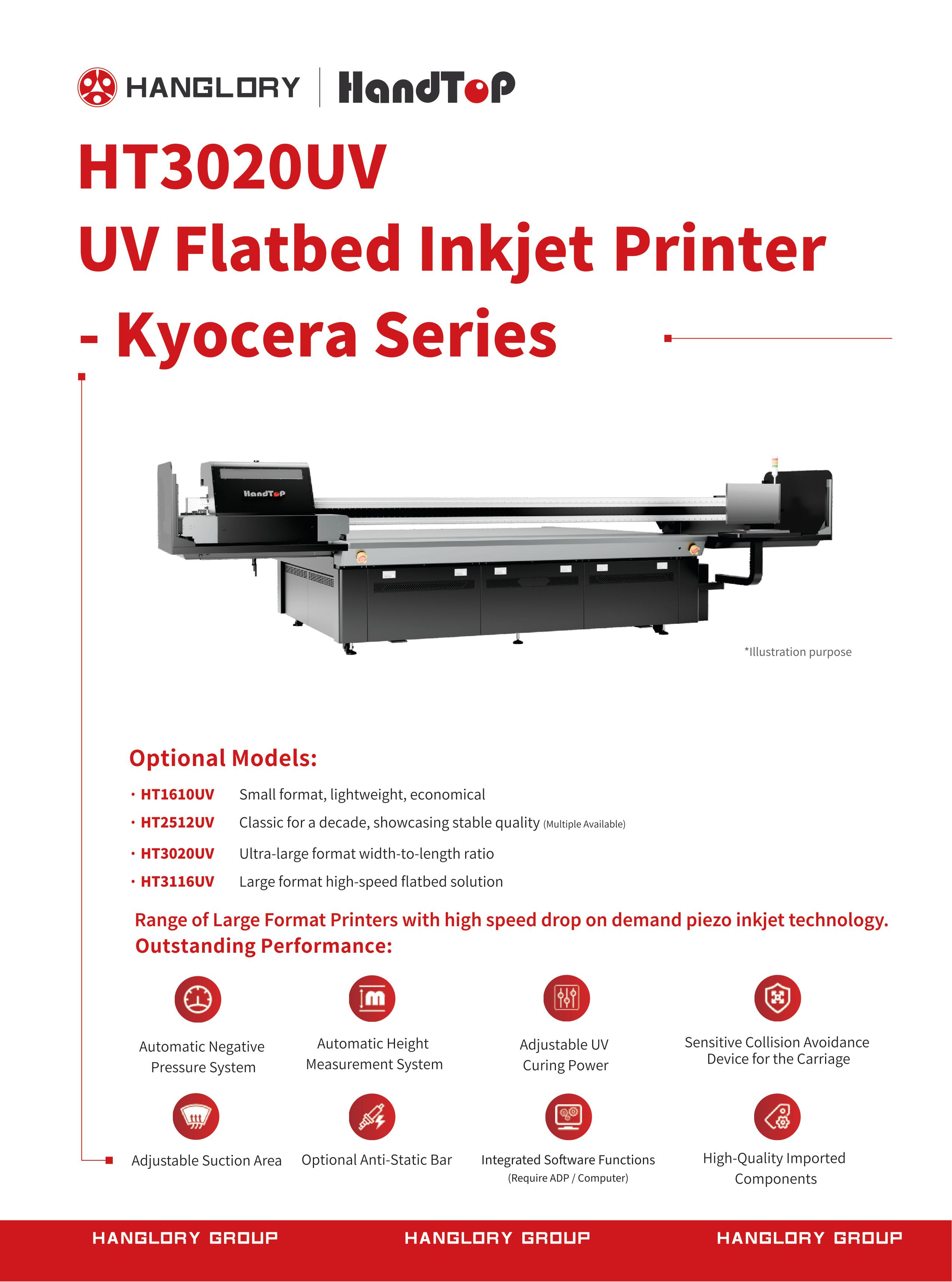

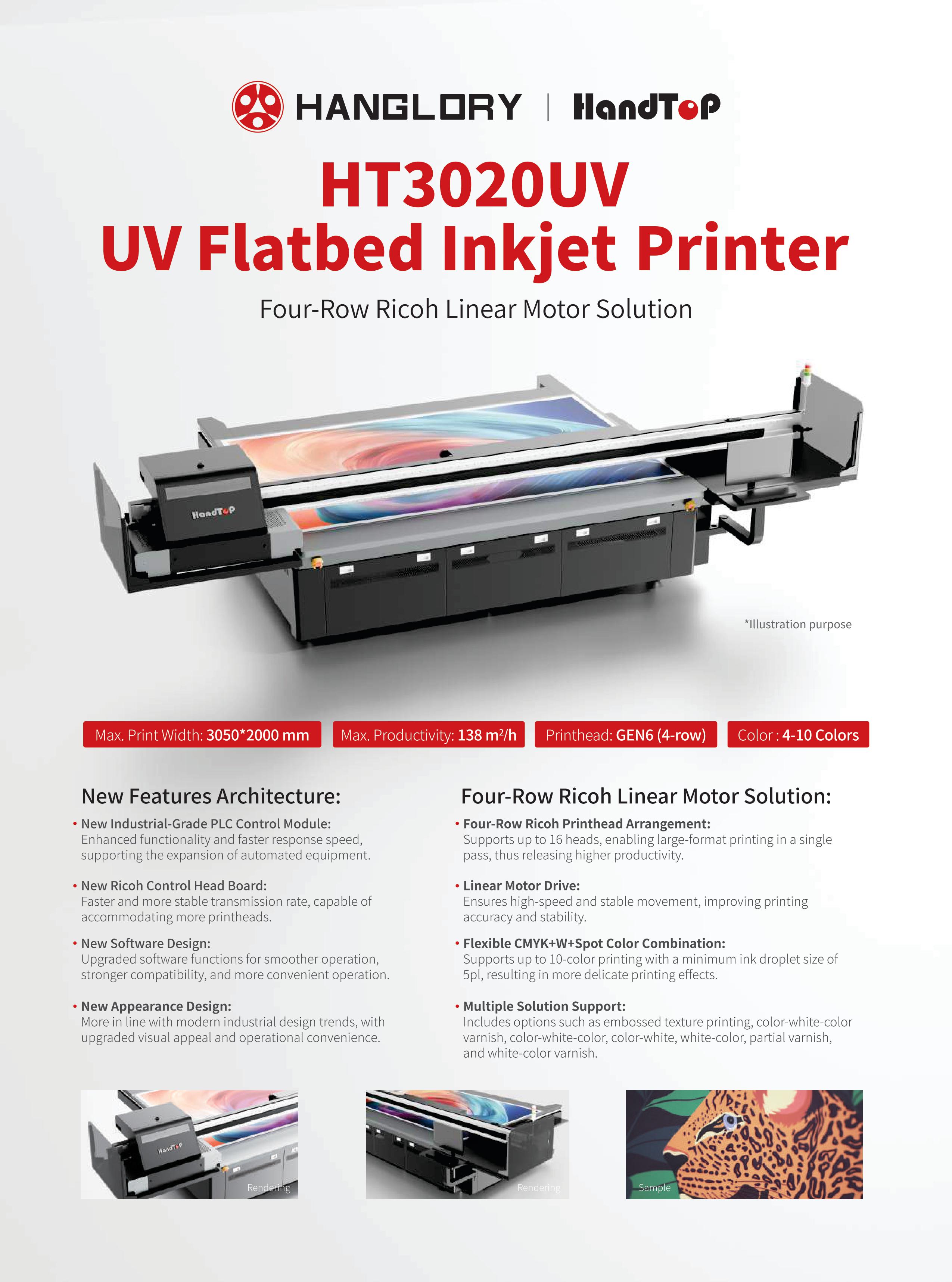

HT3020UV

UV Flatbed Printer

Maximum productivity: 130m²/h

Maximum resolution: 1200*1200dpi

Printhead: Kyocera Ricoh G5/G6

· Advantage · Parameters

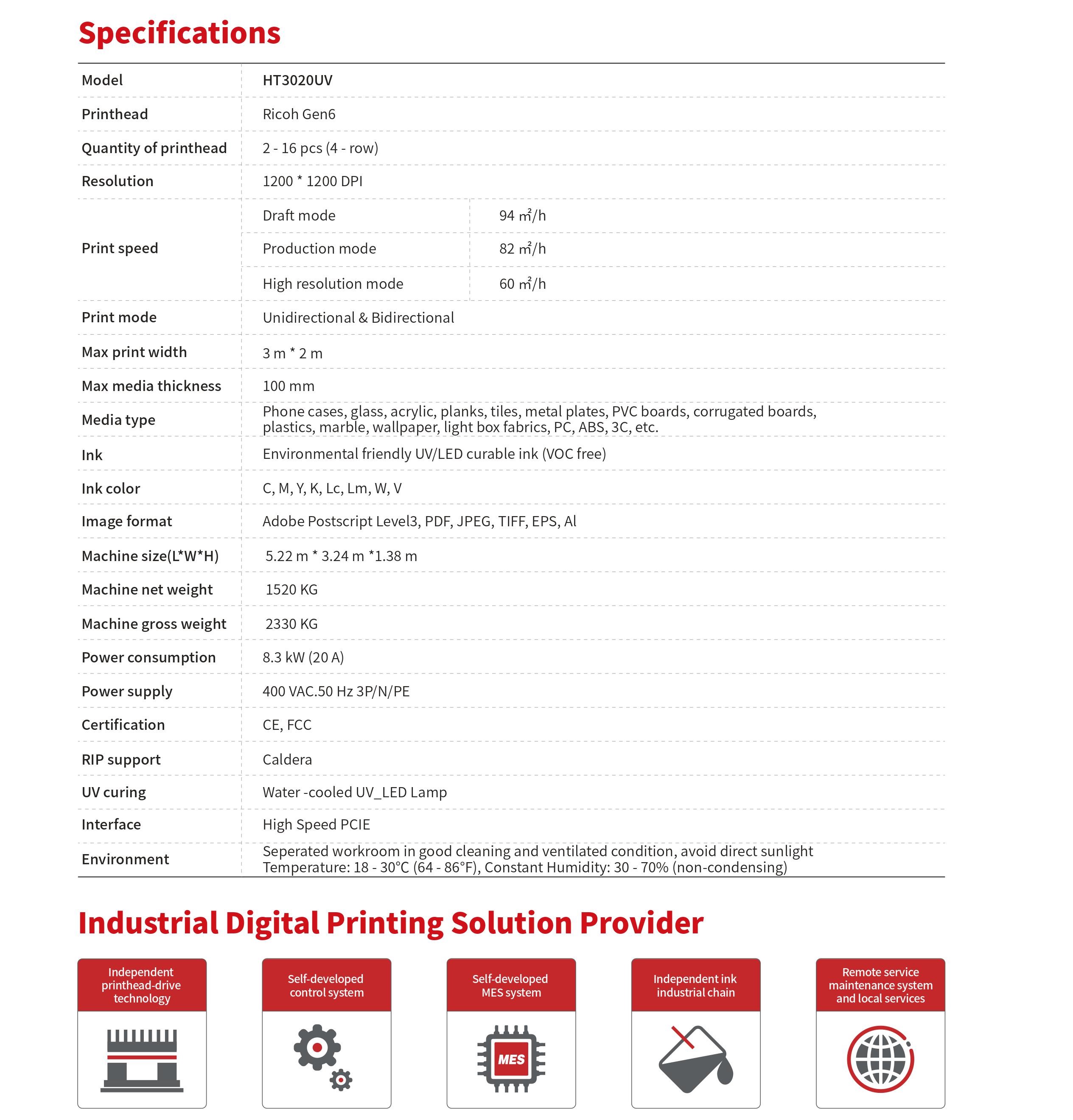

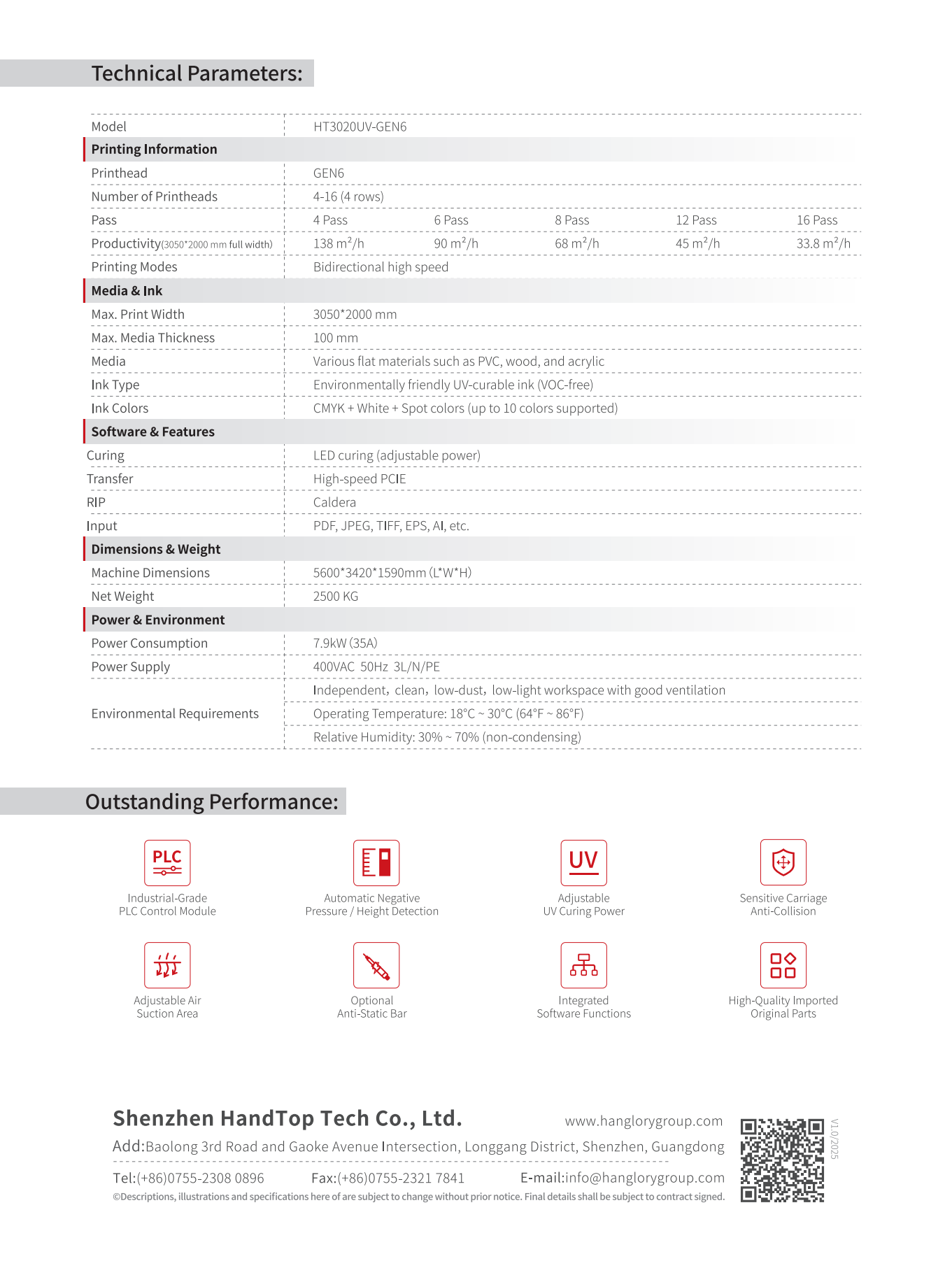

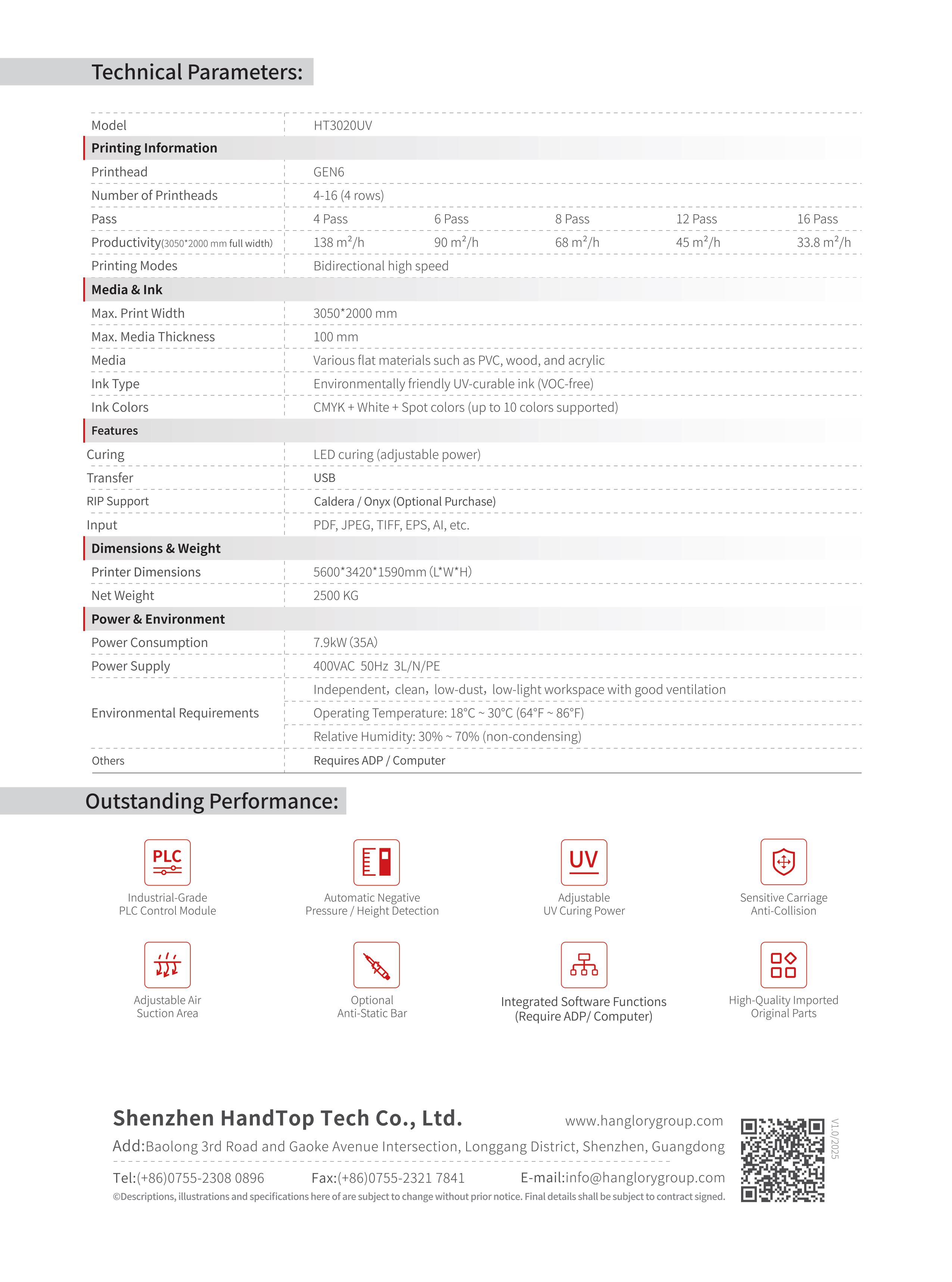

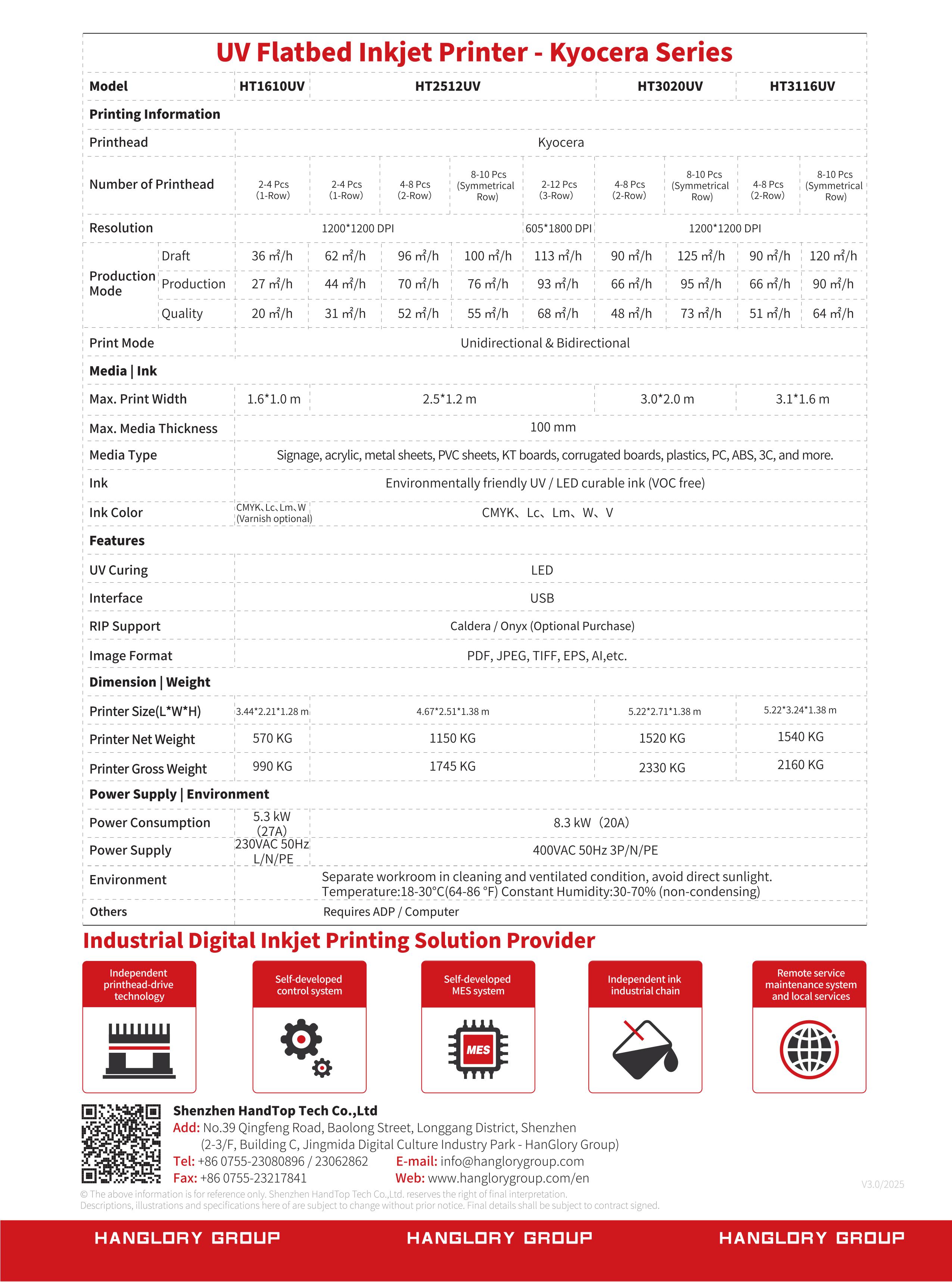

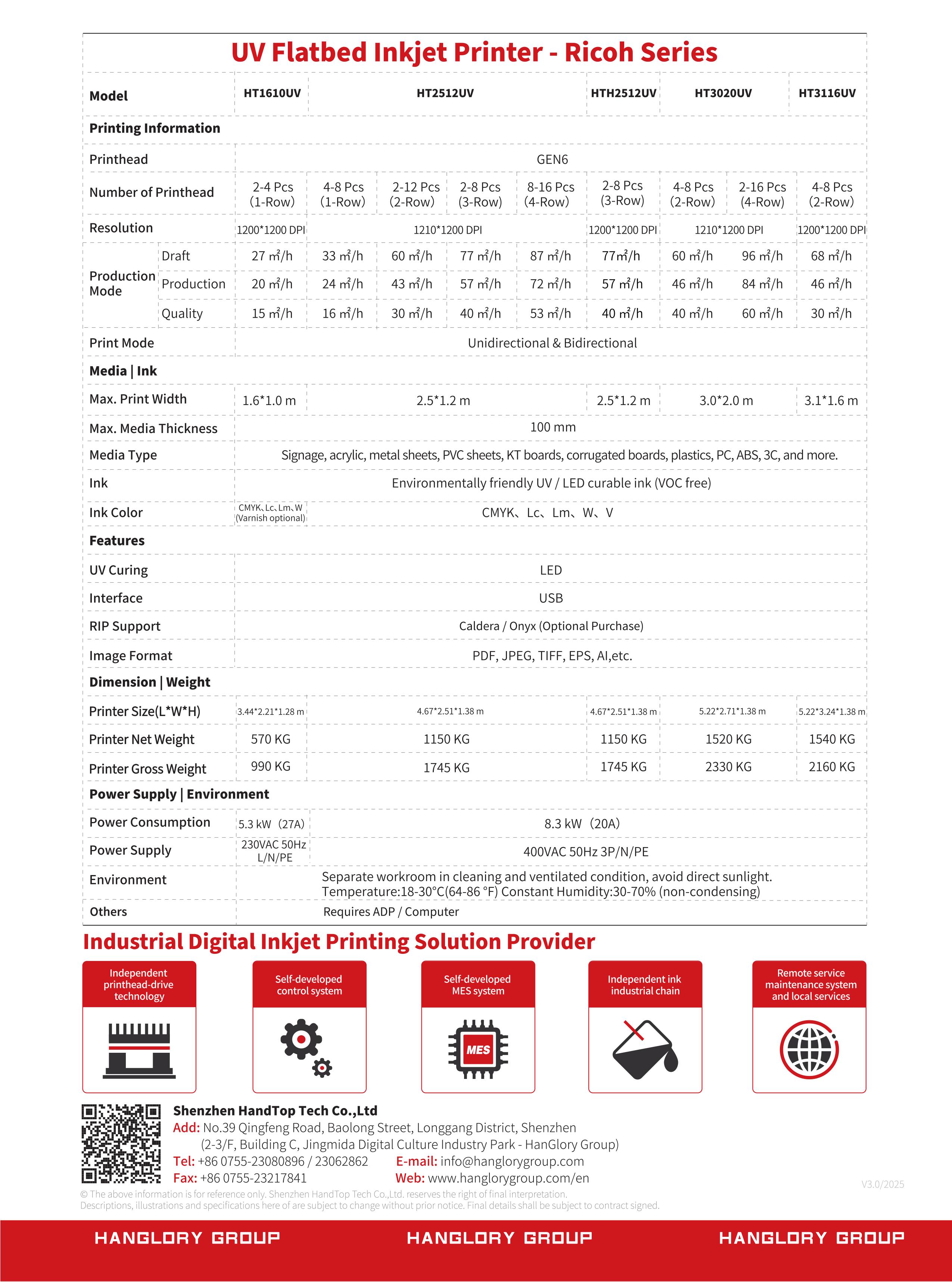

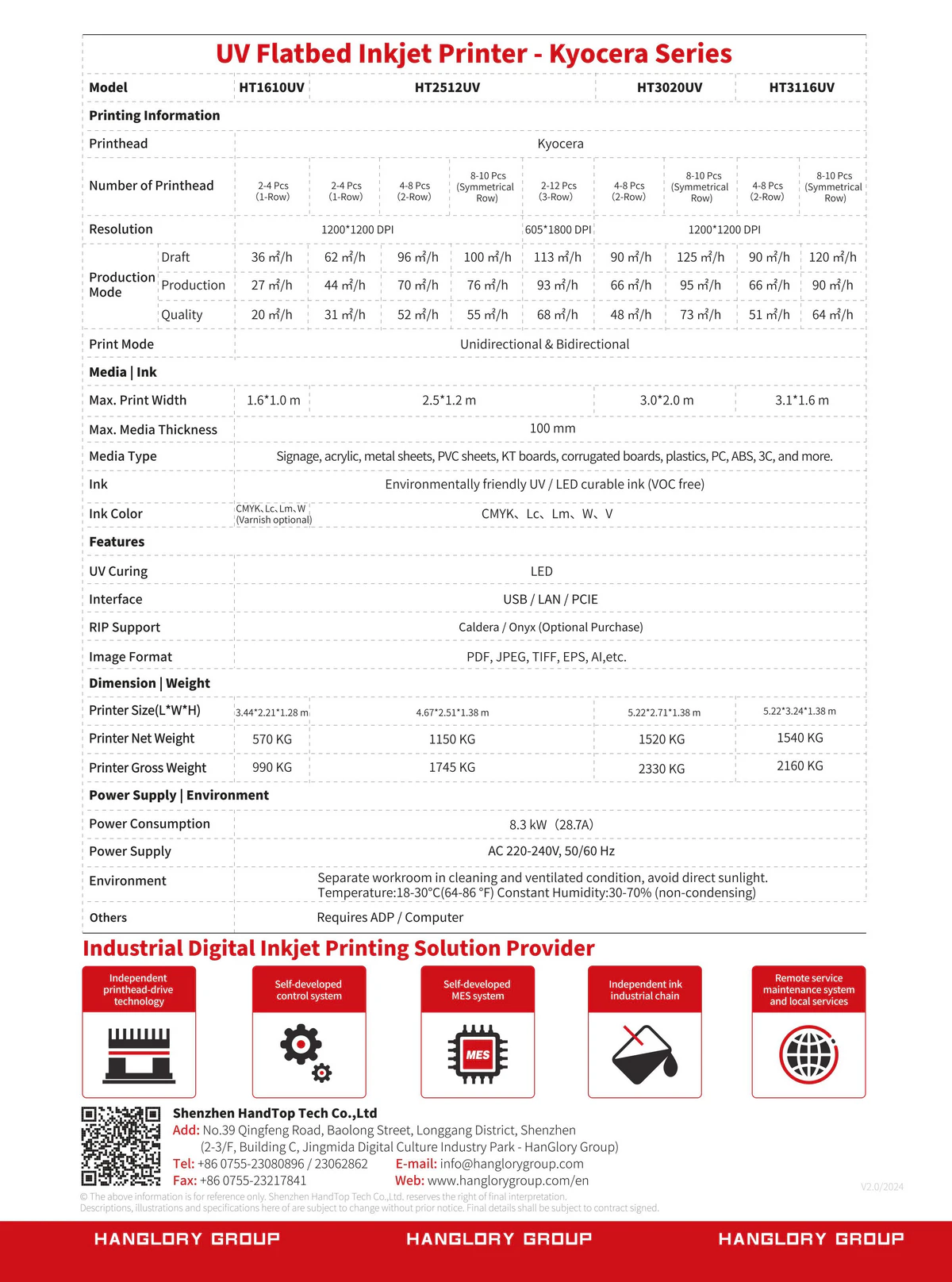

Model	HT3020UV
Printhead	RicohG5	RicohG6	Kyocera	Kyocera
Quantity of printheads	4-8pcs（Double row）	4-8pcs（Double row）	4-8pcs（Double row）	8-10pcs（symmetric array）
Resolution	1200*1200dpi
Printing speed
Draf	54㎡/h	70㎡/h	95㎡/h	125㎡/h
Production	38㎡/h	46㎡/h	70㎡/h	95㎡/h
Quality	27㎡/h	37㎡/h	53㎡/h	73㎡/h
Print mode	Unidirectional and bidirectional
Media type	mobile phone case, glass, acrylic, wood plate, ceramic tile, metal plate, PVC plate, corrugated plate, plastic, marble, wallpaper, light box cloth, PC, ABS, 3C and other plates
Max width	3.0m*2.0m
Max media thickness	100mm
Ink	environmental friendly UV curable ink (excluding VOC)
Ink color	C、M、Y、K、Lc、Lm、V、W
Image format	Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
Machine size	5.22m(L)3.24m(W)1.38m(H)
Machine net weight	1520KG
Machine gross weight	2330KG
Power consumption	8.3KW(20A)
Power supply	400VAC.50Hz 3P/N/PE
Certification	CE，FCC
RIP support	Caldera，Onyx optional
UV curing	LED curing
Interface	high speed PCIE
Environment	Seperated workroom in good cleaning and ventilated condition, avoid direct sunlight Temperature: 18˚ C – 30˚ C(64˚F-86˚F) Constant Humidity: 30%-70%
Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.
