  • HT1610UV

    UV Flatbed Printer

    Maximum productivity: 36m²/h

    Maximum resolution: 1200*1200dpi

    Printhead: Kyocera Ricoh G5/G6

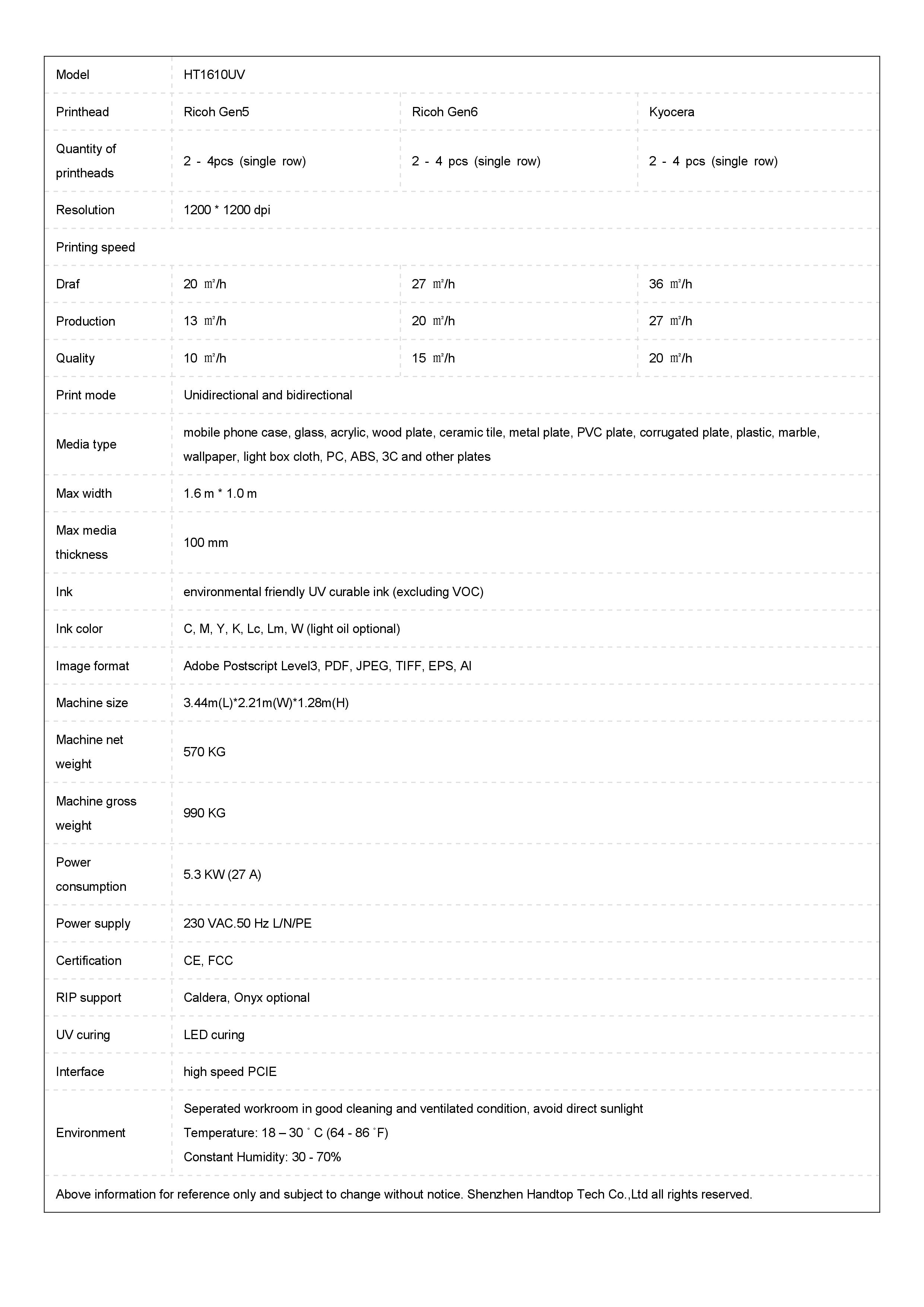

    Model HT1610UV
    Printhead Ricoh Gen5 Ricoh Gen6 Kyocera
    Quantity of printheads 2-4pcs(single row) 2-4pcs(single row) 2-4pcs(single row)
    Resolution 1200*1200dpi
    Printing speed
    Draf 20㎡/h 27㎡/h 36㎡/h
    Production 13㎡/h 20㎡/h 27㎡/h
    Quality 10㎡/h 15㎡/h 20㎡/h
    Print mode Unidirectional and bidirectional
    Media type mobile phone case, glass, acrylic, wood plate, ceramic tile, metal plate, PVC plate, corrugated plate, plastic, marble, wallpaper, light box cloth, PC, ABS, 3C and other plates
    Max width 1.6m*1.0m
    Max media thickness 100mm
    Ink environmental friendly UV curable ink (excluding VOC)
    Ink color C、M、Y、K、Lc、Lm、W(light oil optional)
    Image format Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
    Machine size 3.44m(L)*2.21m(W)*1.28m(H)
    Machine net weight 570KG
    Machine gross weight 990KG
    Power consumption 5.3KW(27A)
    Power supply 230VAC.50Hz L/N/PE
    Certification CE,FCC
    RIP support Caldera,Onyx optional
    UV curing LED curing
    Interface high speed PCIE
    Environment Seperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%
    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.
