HTL3200UV

UV Roll to Roll Printer

Maximum productivity: 74m²/h

Maximum resolution: 1200*1200dpi

Printhead: Kyocera

· Advantage · Parameters

Model	HTL3200UV
Printhead	Kyocera
Quantity of printheads	2-4pcs
Resolution	1200*1200dpi
Printing speed
Draf	74㎡/h
Production	56㎡/h
Quality	45㎡/h
Print mode	Unidirectional and bidirectional
Media type	Various films such as soft film, knife cloth, 3P cloth, wallpaper, car stickers, inkjet cloth, grid cloth, light film, etc.
Max width	3.2m
Max media thickness	2mm
Ink	Flexible UV ink
Ink color	C、M、Y、K
Machine size	6.46m(L)1.31m(W)1.71m(H)
Machine net weight	1800KG
Machine gross weight	2550KG
Power consumption	3.9KW(18A)
Power supply	230VAC.50Hz L/N/PE
RIP support	Caldera，Onyx optional
UV curing	LED
Interface	high speed PCIE
Environment	Seperated workroom in good cleaning and ventilated condition, avoid direct sunlight Temperature: 18˚ C – 30˚ C(64˚F-86˚F) Constant Humidity: 30%-70%
Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.

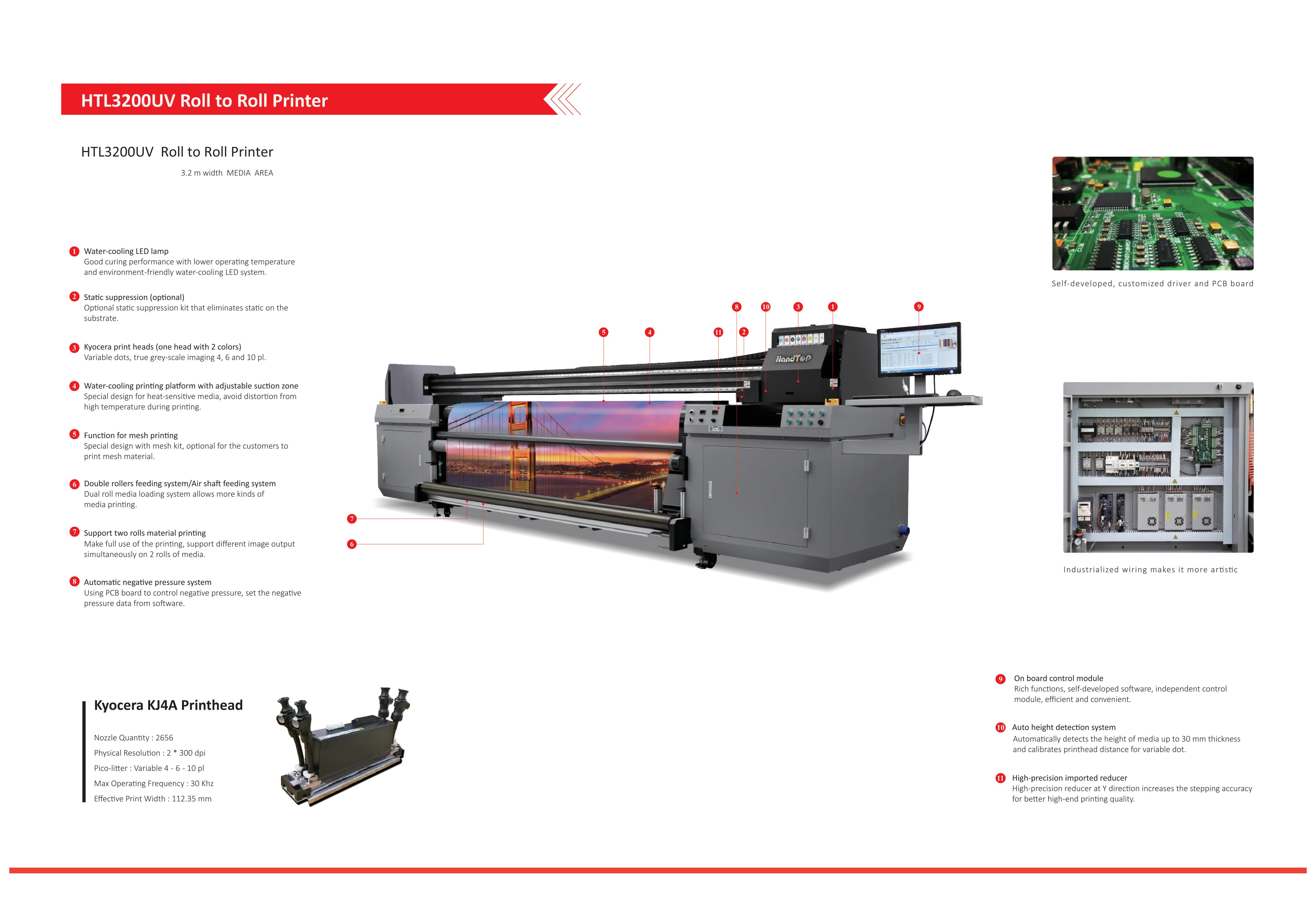

HTL3200UV(图1)

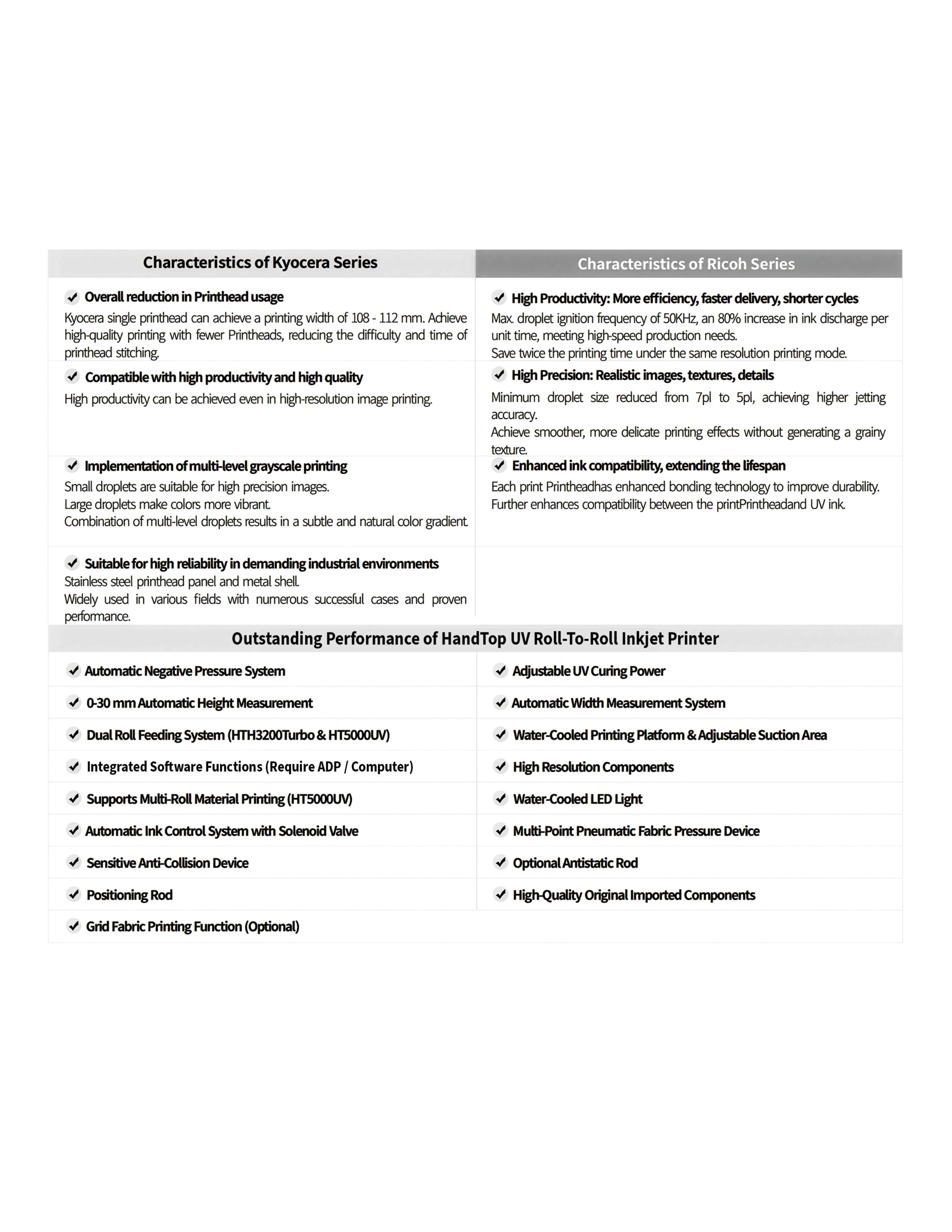

HTL3200UV(图2)

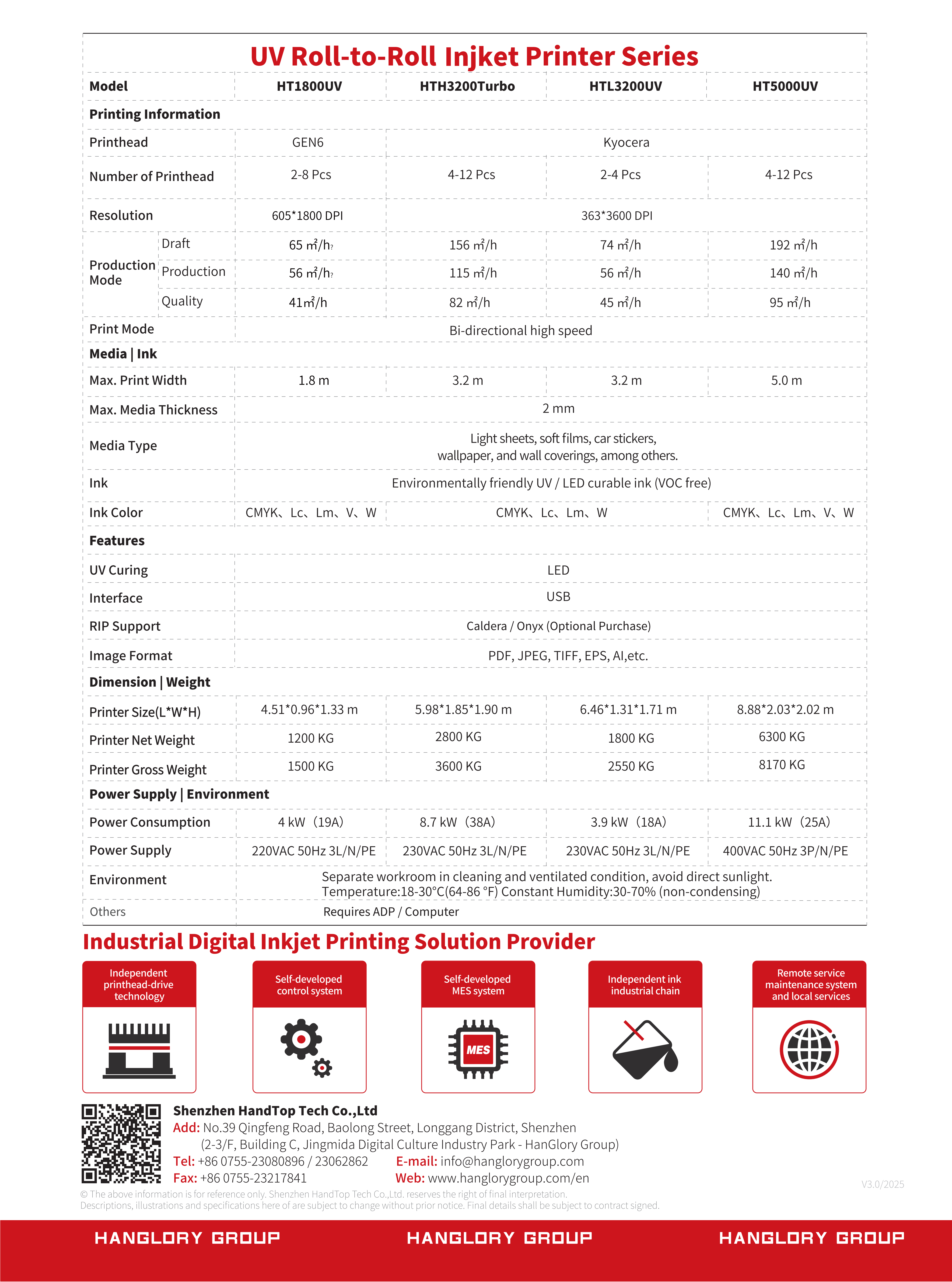

HTL3200UV(图3)

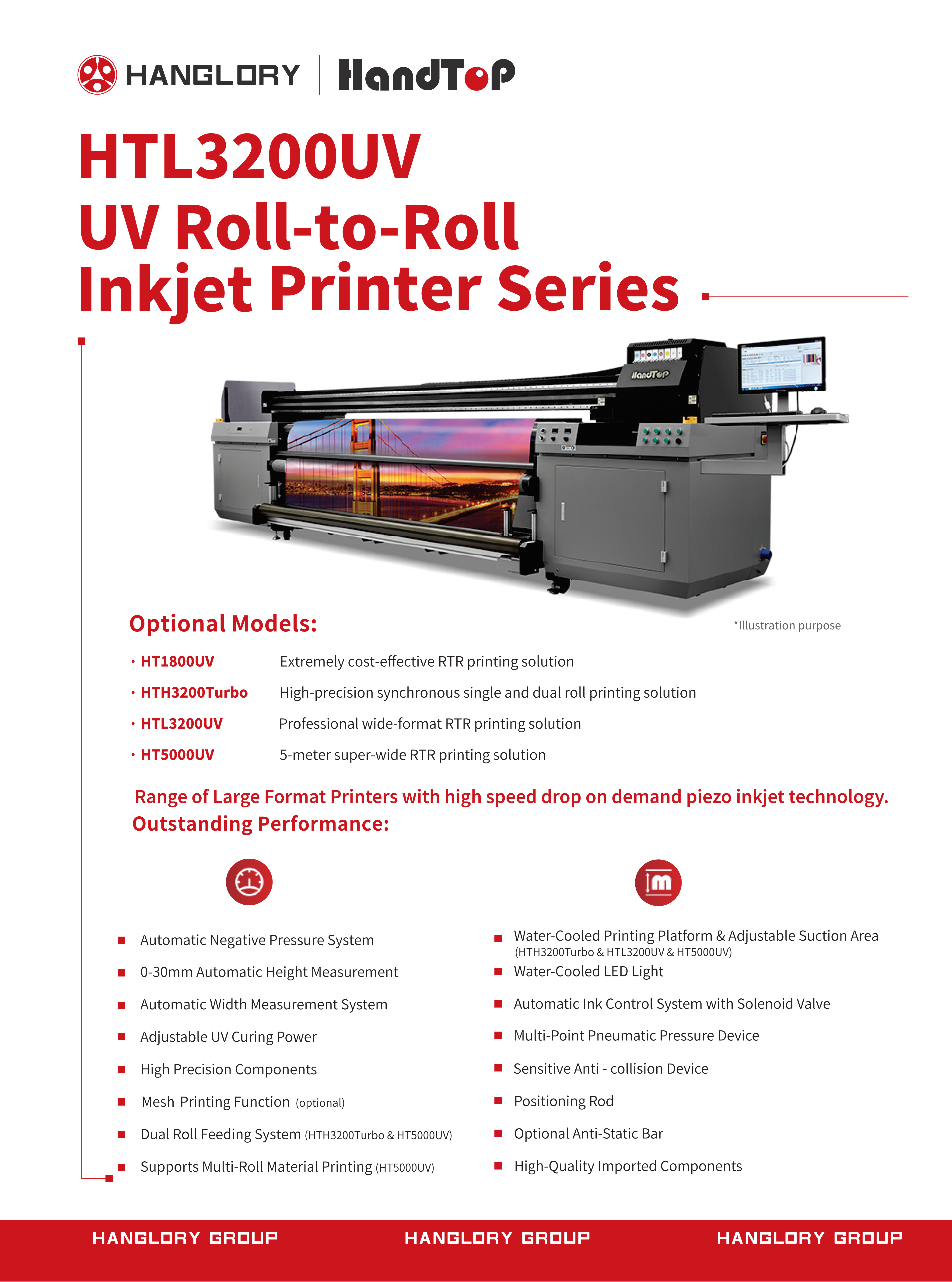

HTL3200UV(图4)
