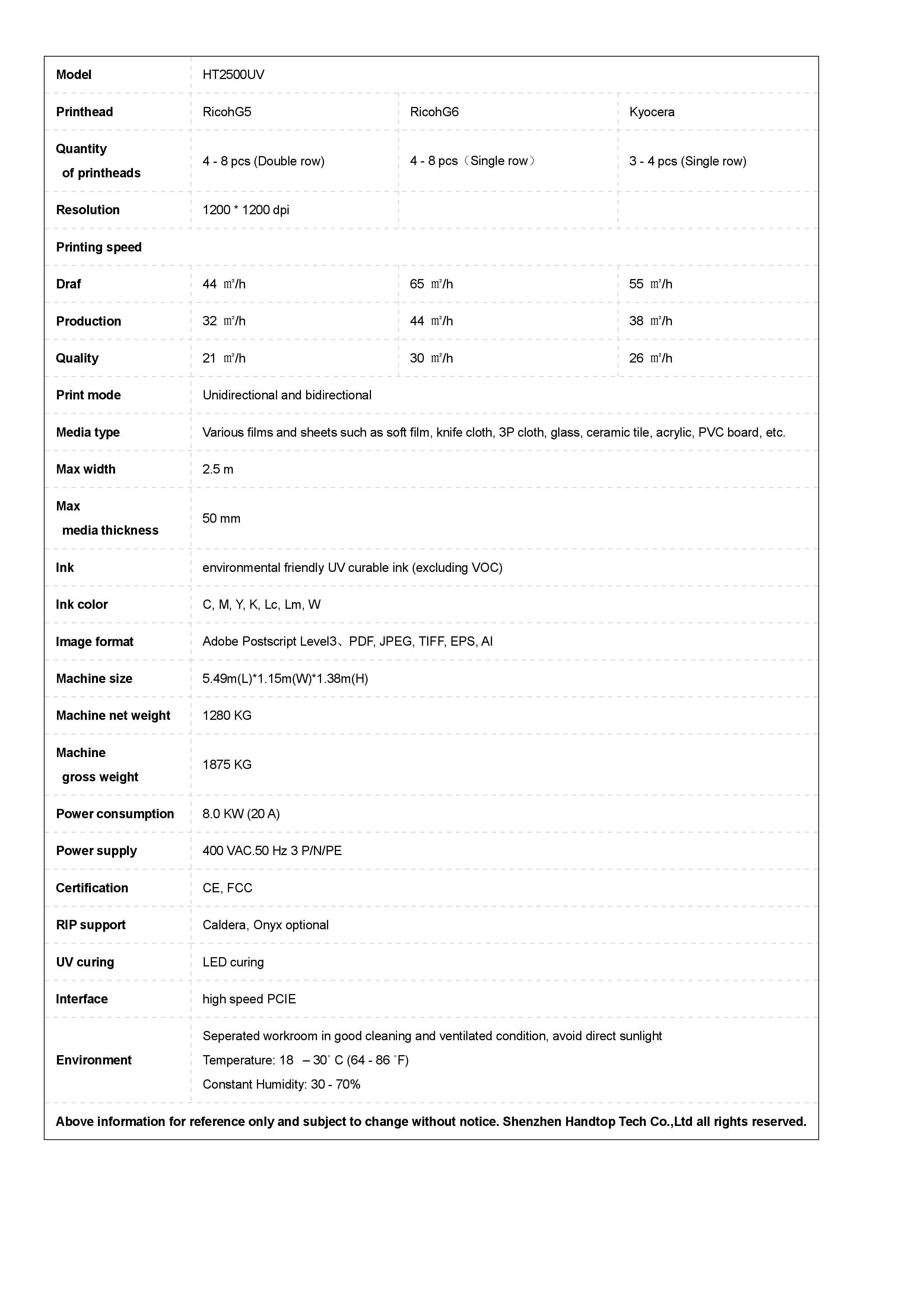

Model
|
HT2500UV
|
|
|
|
|
Printhead
|
RicohG5
|
RicohG6
|
Kyocera
|
|
|
Quantity of printheads
|
4-8pcs（Double row）
|
4-8pcs（Single row）
|
3-4pcs（Single row）
|
|
|
Resolution
|
1200*1200dpi
|
|
|
|
|
Printing speed
|
|
|
|
|
|
Draf
|
44㎡/h
|
65㎡/h
|
55㎡/h
|
|
|
Production
|
32㎡/h
|
44㎡/h
|
38㎡/h
|
|
|
Quality
|
21㎡/h
|
30㎡/h
|
26㎡/h
|
|
|
Print mode
|
Unidirectional and bidirectional
|
|
|
|
|
Media type
|
Various films and sheets such as soft film, knife cloth, 3P cloth, glass, ceramic tile, acrylic, PVC board, etc.
|
|
Max width
|
2.5m
|
|
|
|
|
Max media thickness
|
50mm
|
|
|
|
|
Ink
|
environmental friendly UV curable ink (excluding VOC)
|
|
Ink color
|
C、M、Y、K、Lc、Lm、W
|
|
Image format
|
Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
|
|
Machine size
|
5.49m(L)*1.15m(W)*1.38m(H)
|
|
Machine net weight
|
1280KG
|
|
|
|
|
Machine gross weight
|
1875KG
|
|
|
|
|
Power consumption
|
8.0KW(20A)
|
|
|
|
|
Power supply
|
400VAC.50Hz 3P/N/PE
|
|
|
|
|
Certification
|
CE，FCC
|
|
|
|
|
RIP support
|
Caldera，Onyx optional
|
|
|
|
|
UV curing
|
LED curing
|
|
Interface
|
high speed PCIE
|
|
|
|
|
Environment
|
Seperated workroom in good cleaning and ventilated condition, avoid direct sunlight
Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
Constant Humidity: 30%-70%
|
|
Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.
|
