  • HT3200UV

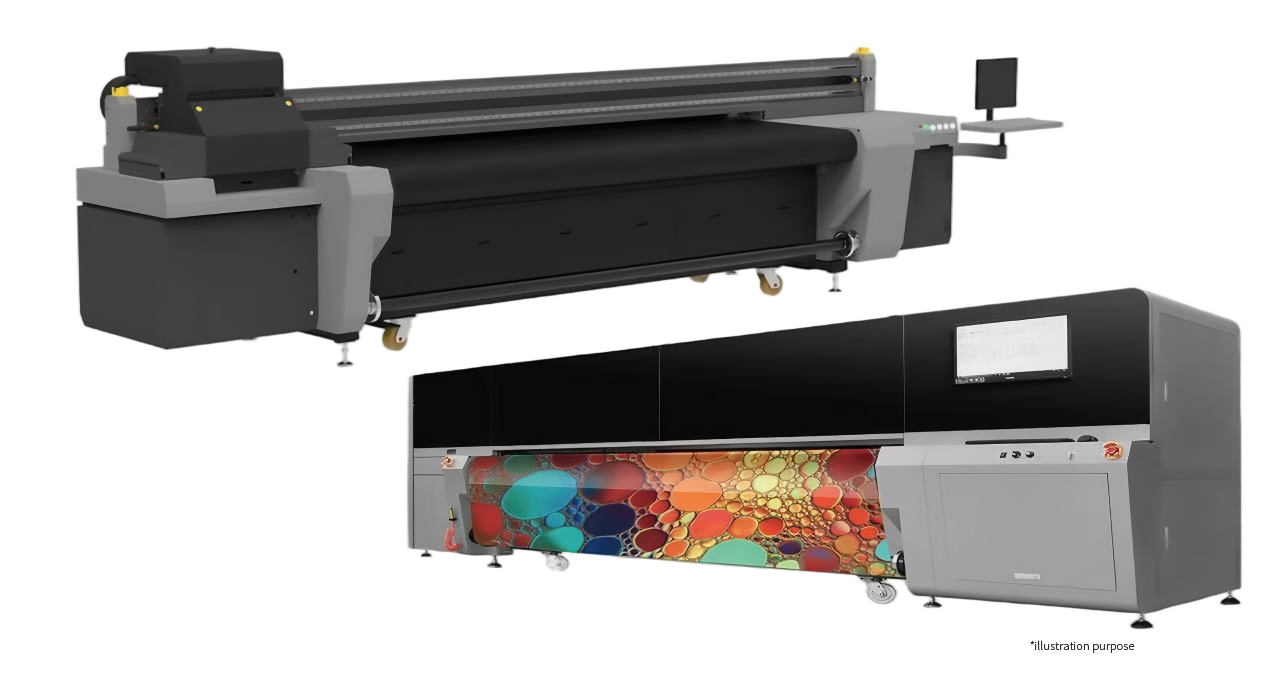

    UV Hybrid Printer

    Maximum productivity: 104m²/h

    Maximum resolution: 1200*1200dpi

    Printhead: Kyocera Ricoh G5/G6

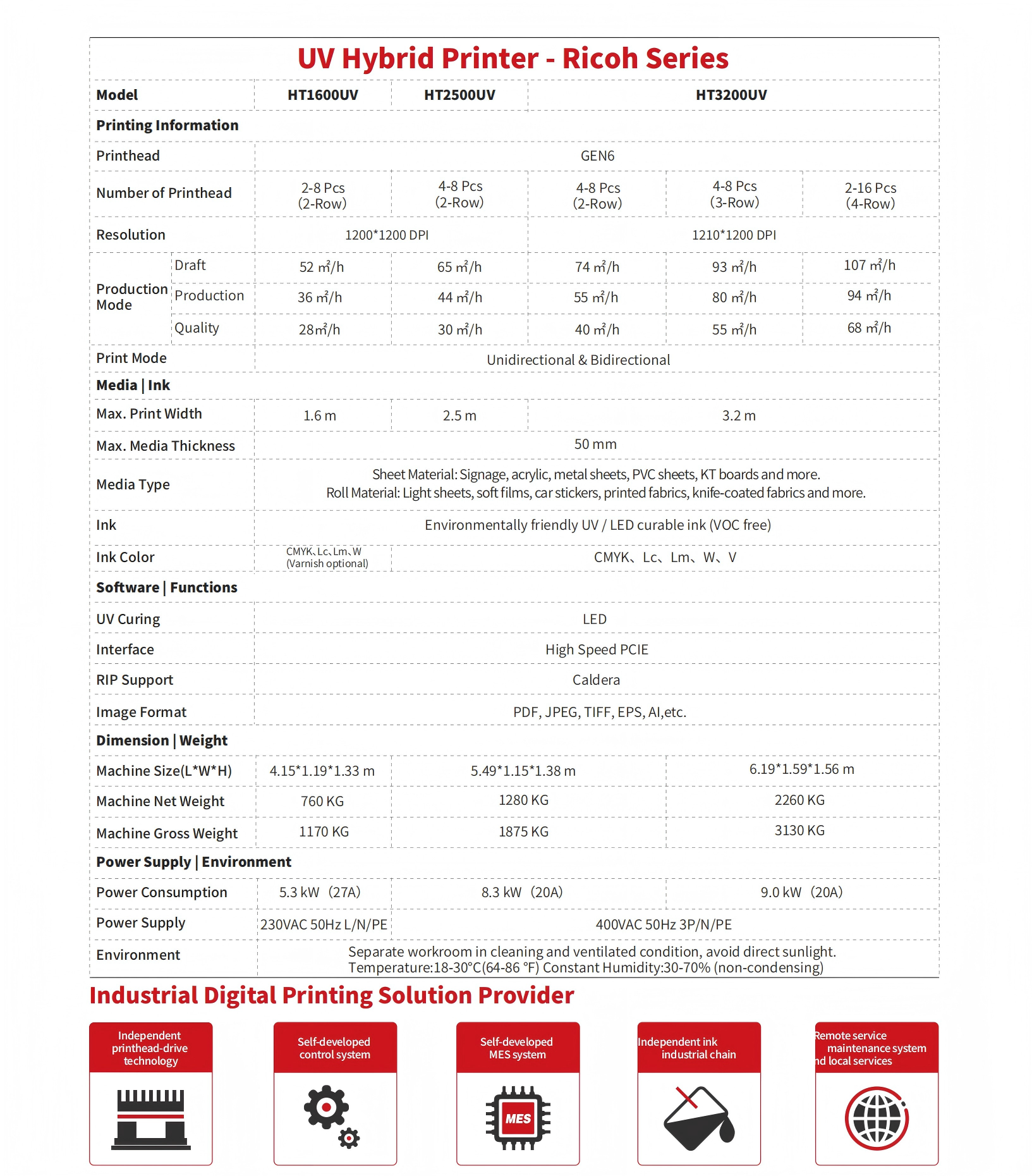

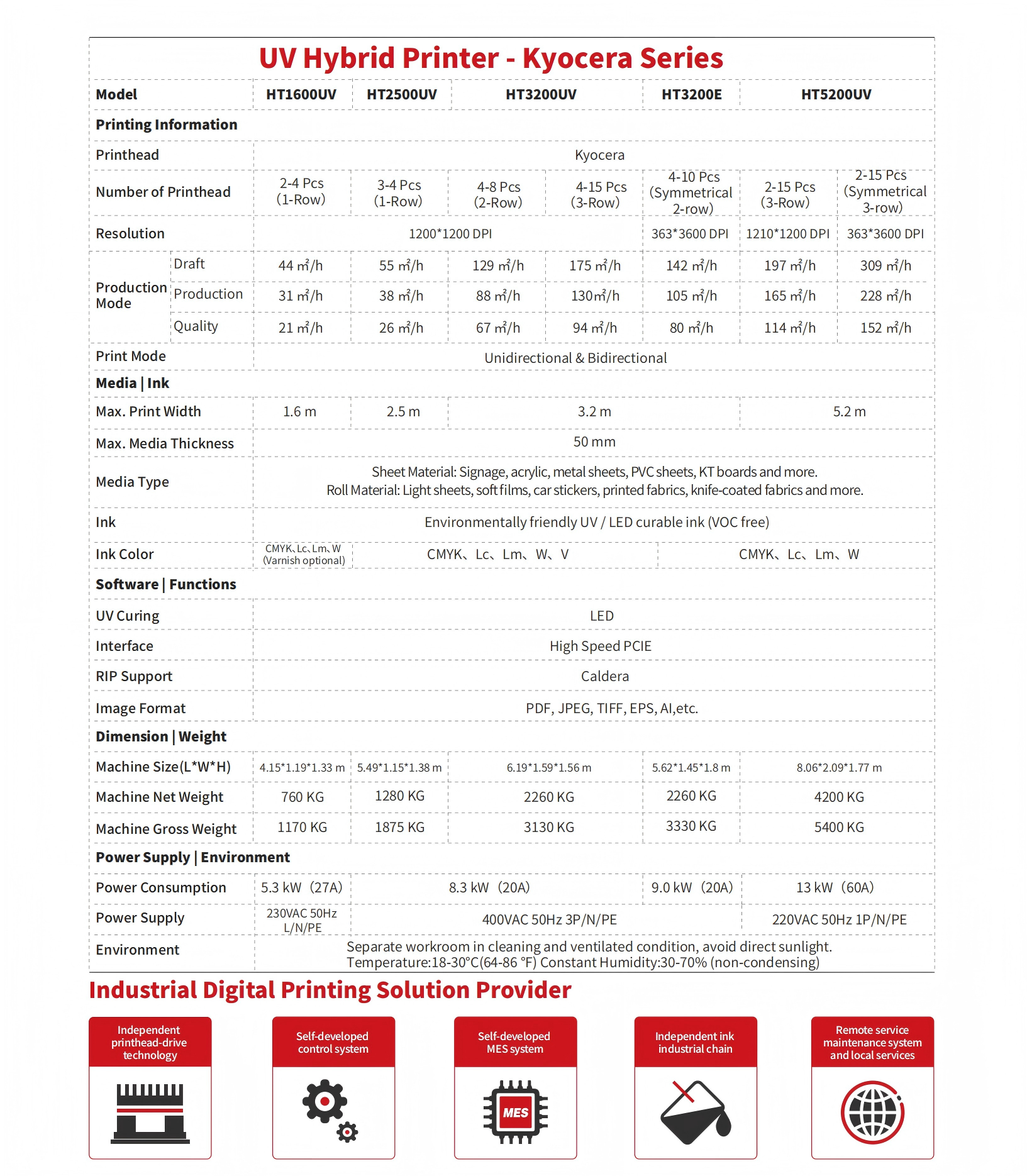

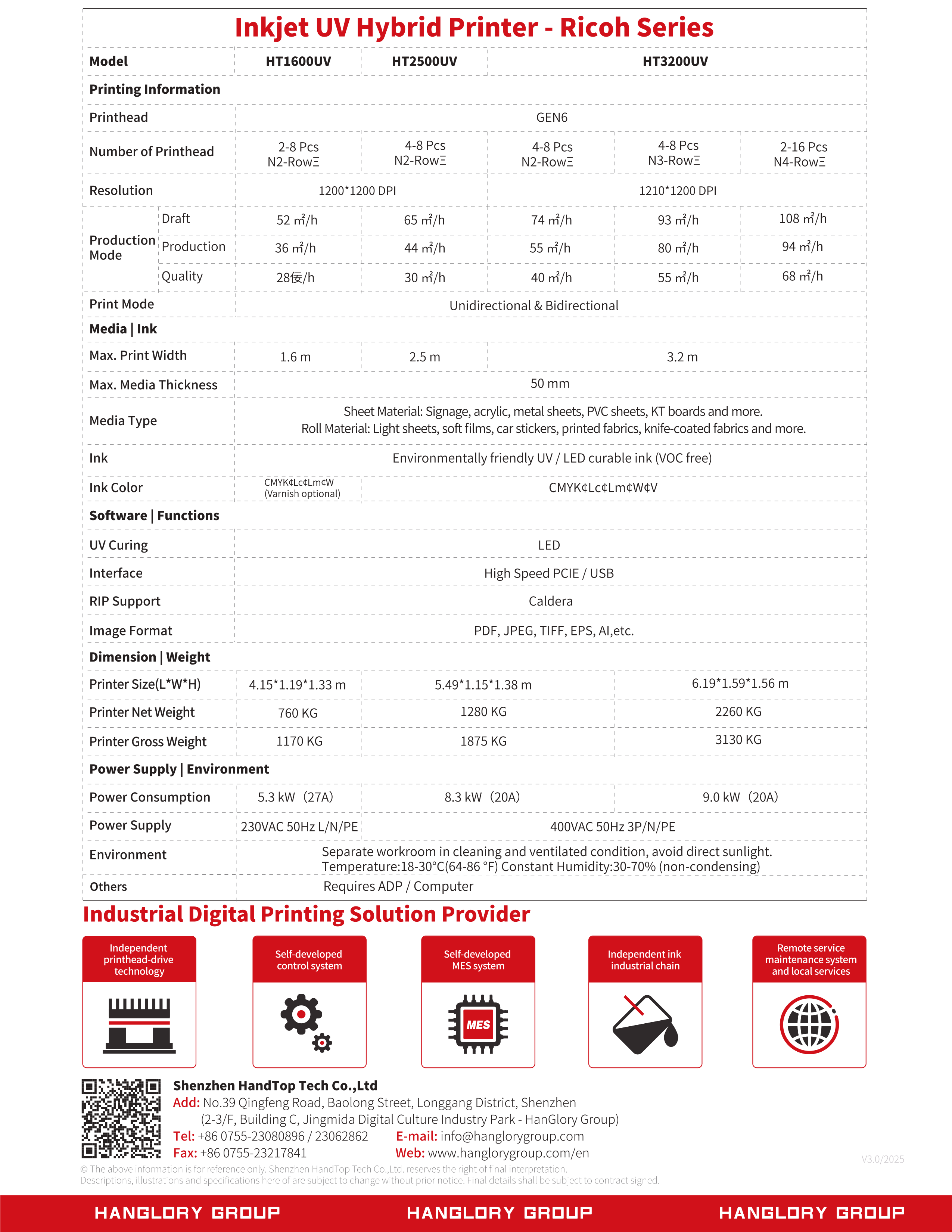

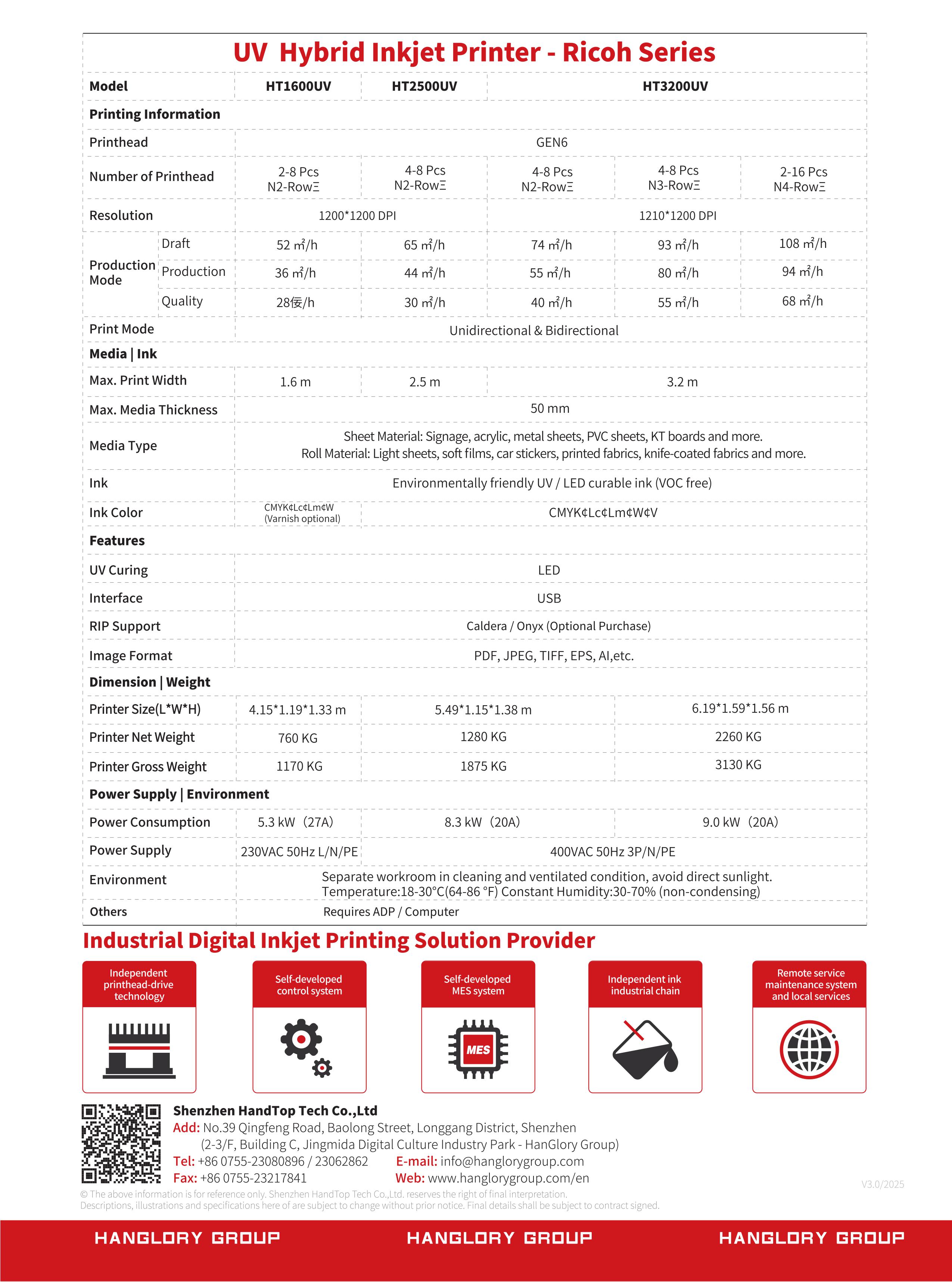

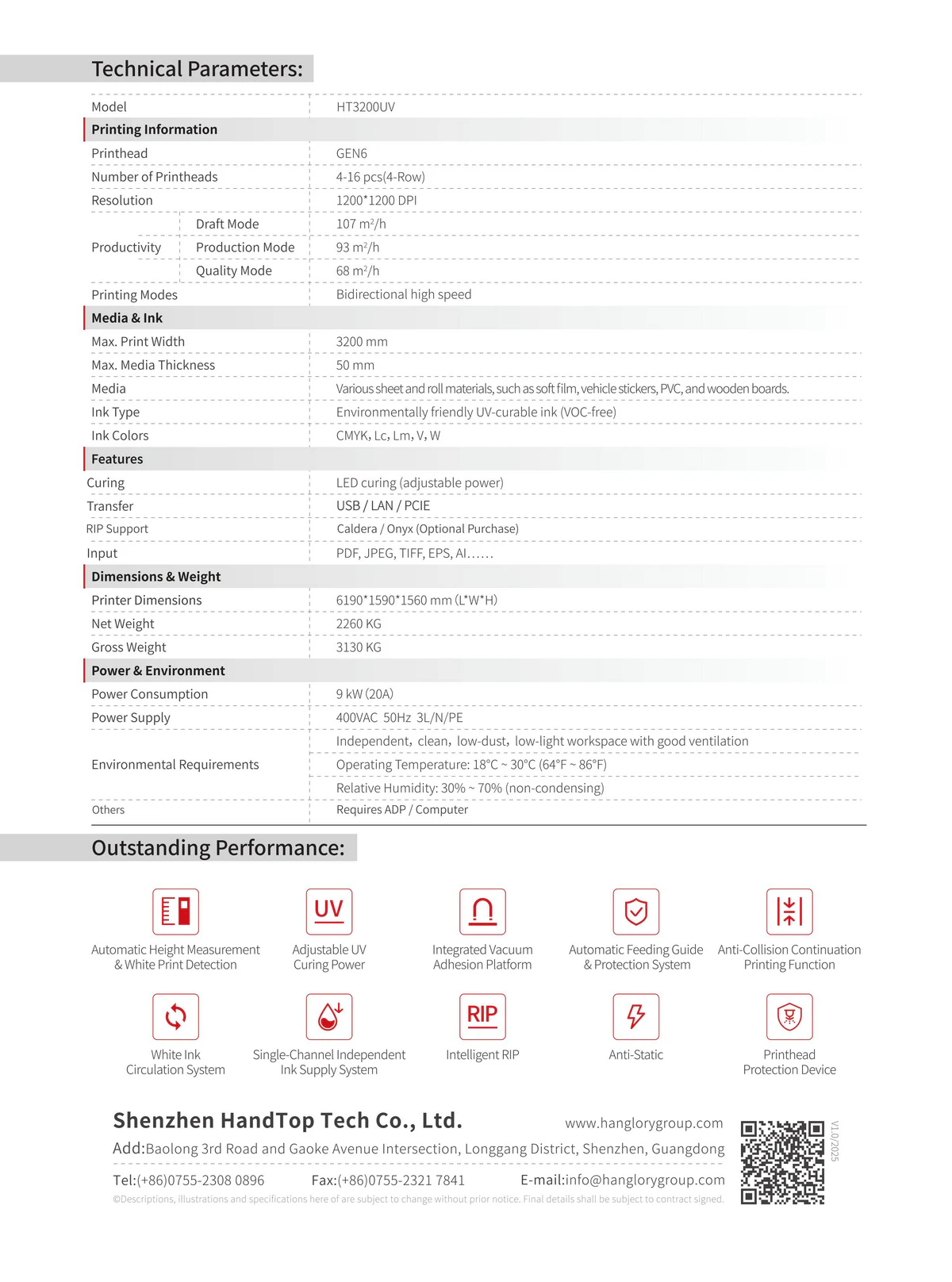

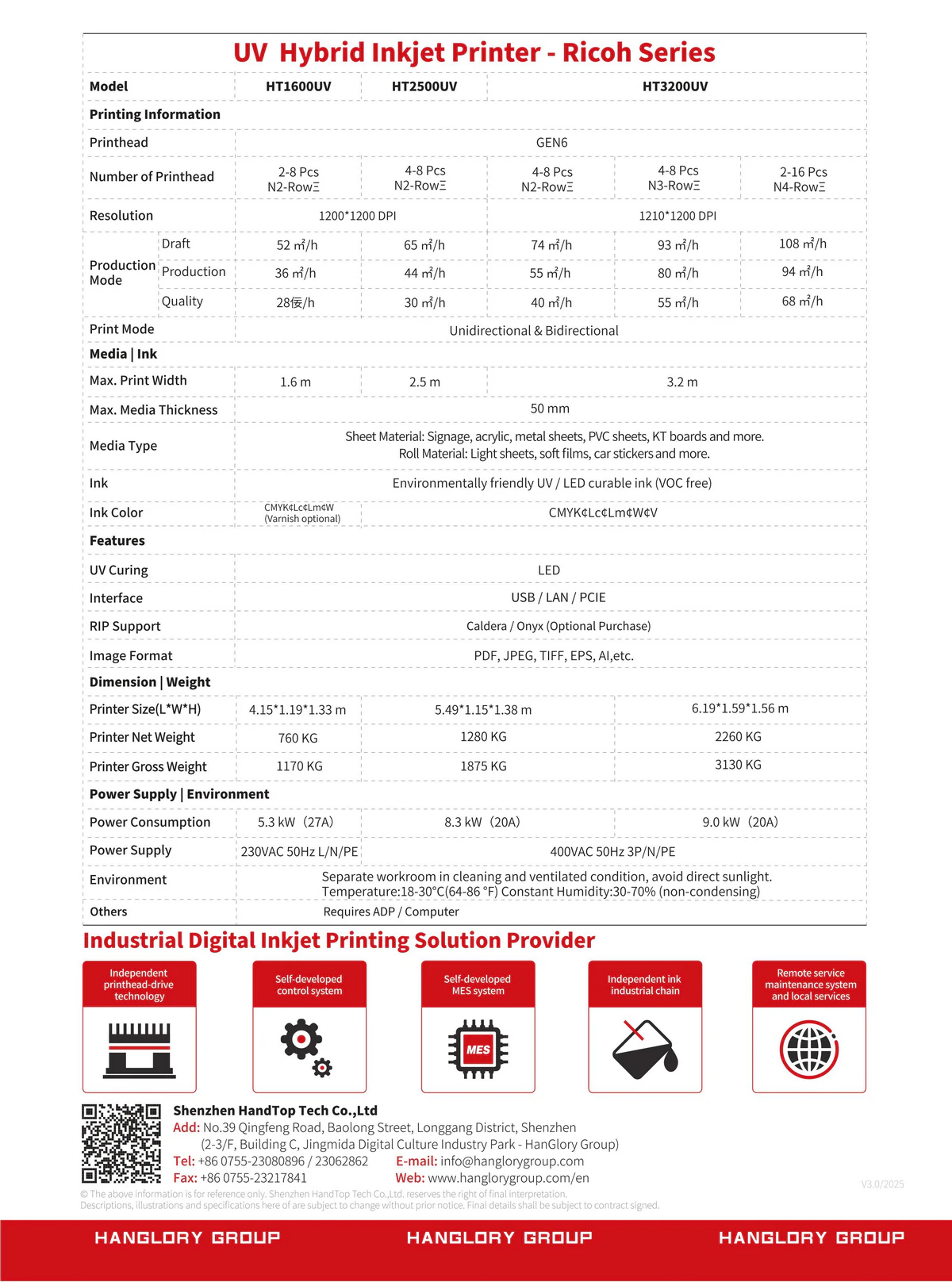

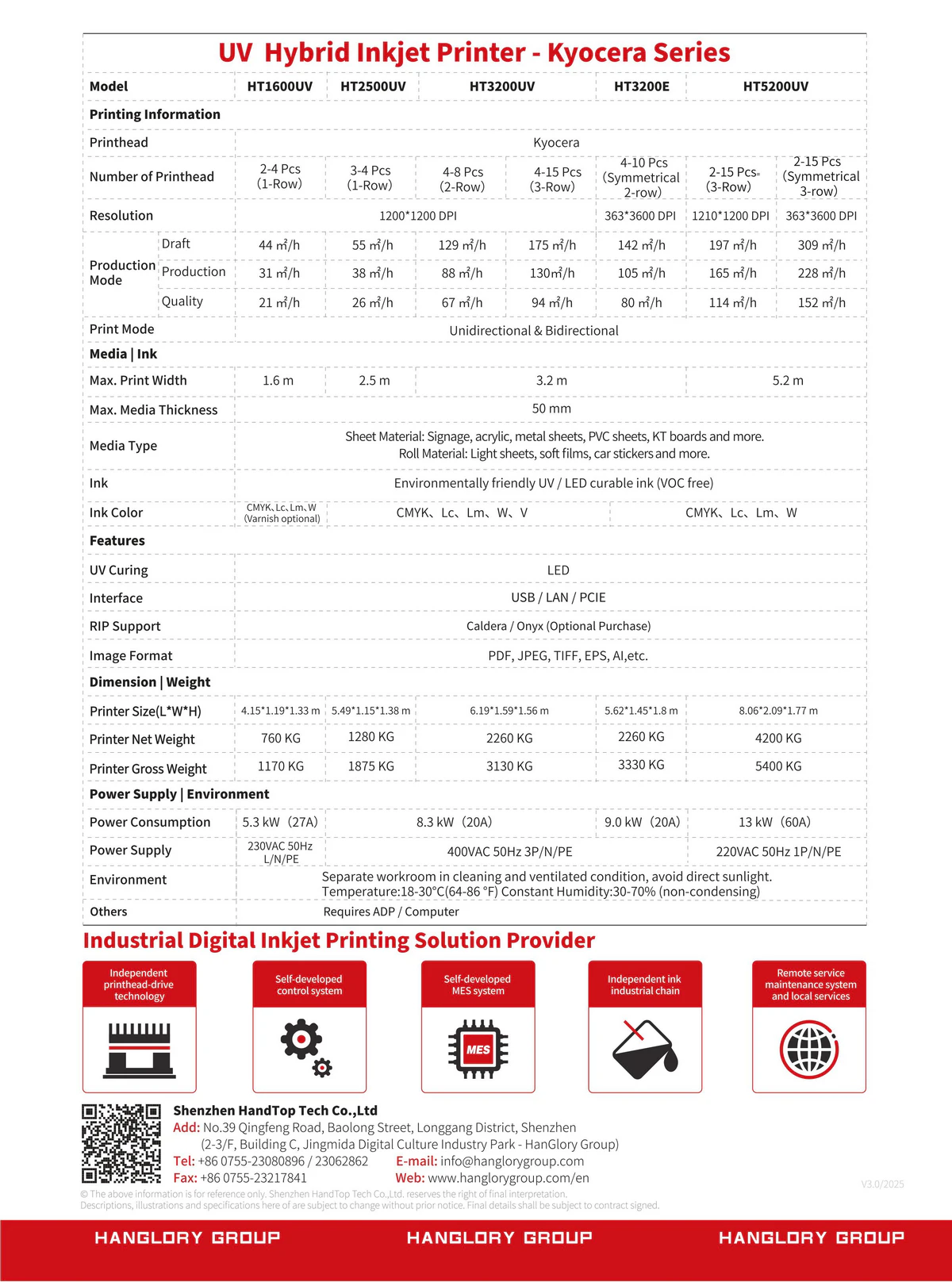

    ModelHT3200UV


    PrintheadRicohG5RicohG6Kyocera

    Quantity of printheads4-8pcs(Double row)4-8pcs(Double row)4-8pcs(Double row)

    Resolution1200*1200dpi


    Printing speed



    Draf51㎡/h74㎡/h104㎡/h

    Production36㎡/h55㎡/h75㎡/h

    Quality24㎡/h40㎡/h53㎡/h

    Print modeUnidirectional and bidirectional


    Media typeVarious films and sheets such as soft film, knife cloth, 3P cloth, glass, ceramic tile, acrylic, PVC board, etc.
    Max width3.2m


    Max media thickness50mm


    Inkenvironmental friendly UV curable ink (excluding VOC)
    Ink colorC、M、Y、K、Lc、Lm、W
    Image formatAdobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
    Machine size6.19m(L)*1.59m(W)*1.56m(H)
    Machine net weight2260KG


    Machine gross weight3130KG


    Power consumption9.0KW(20A)


    Power supply400VAC.50Hz 3P/N/PE


    CertificationCE,FCC


    RIP supportCaldera,Onyx optional


    UV curingLED curing
    Interfacehigh speed PCIE


    EnvironmentSeperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%
    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.

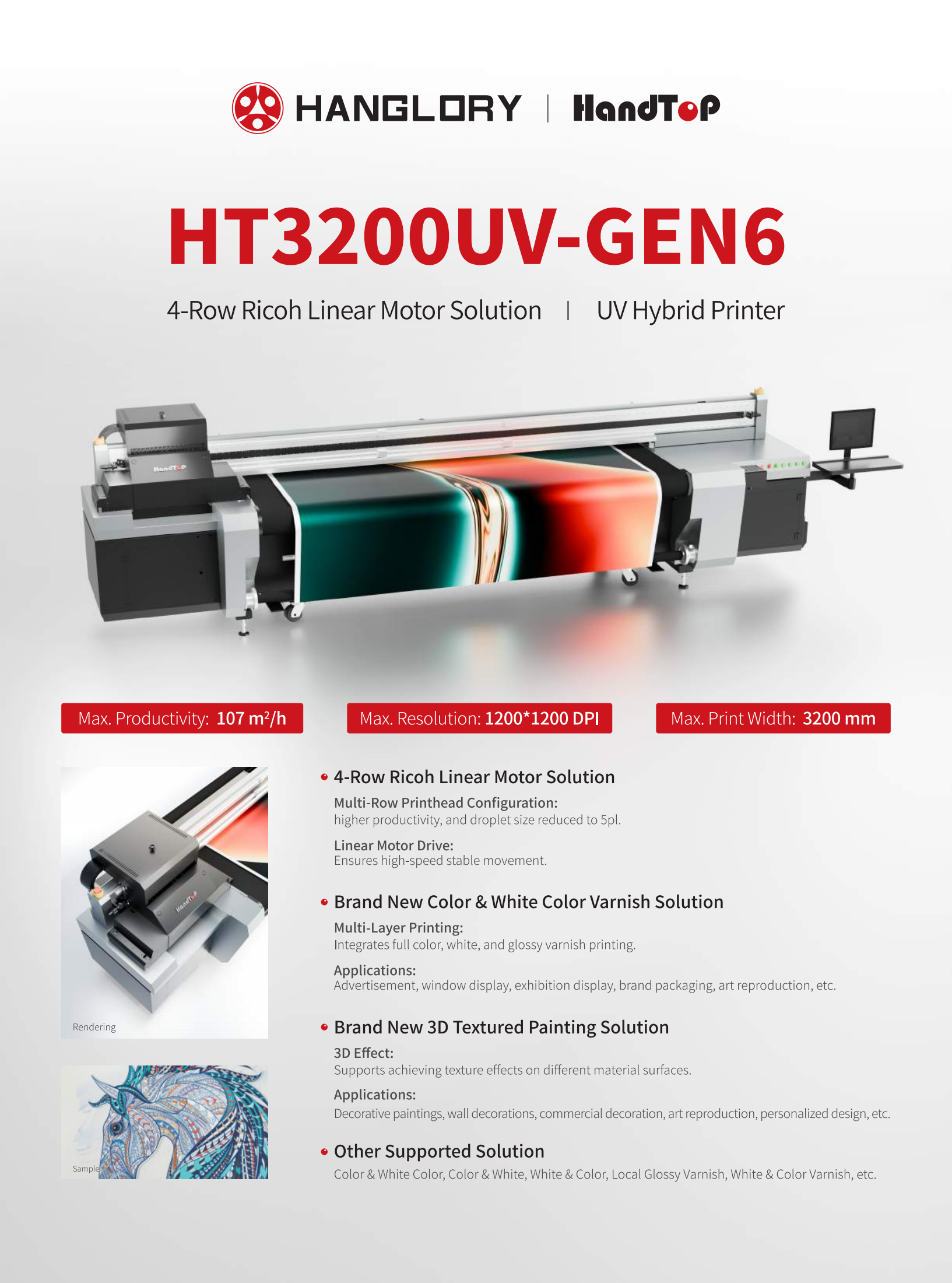

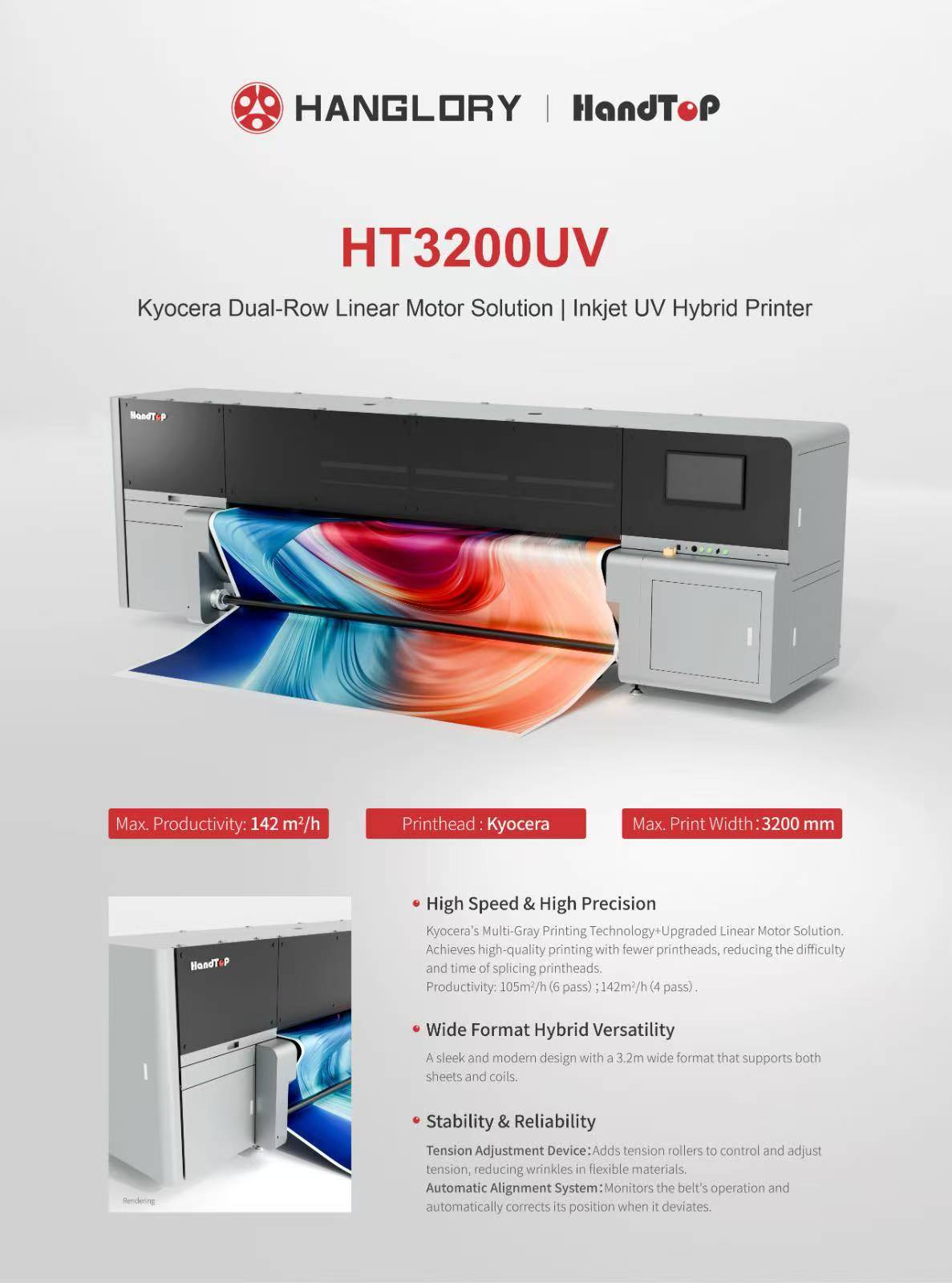

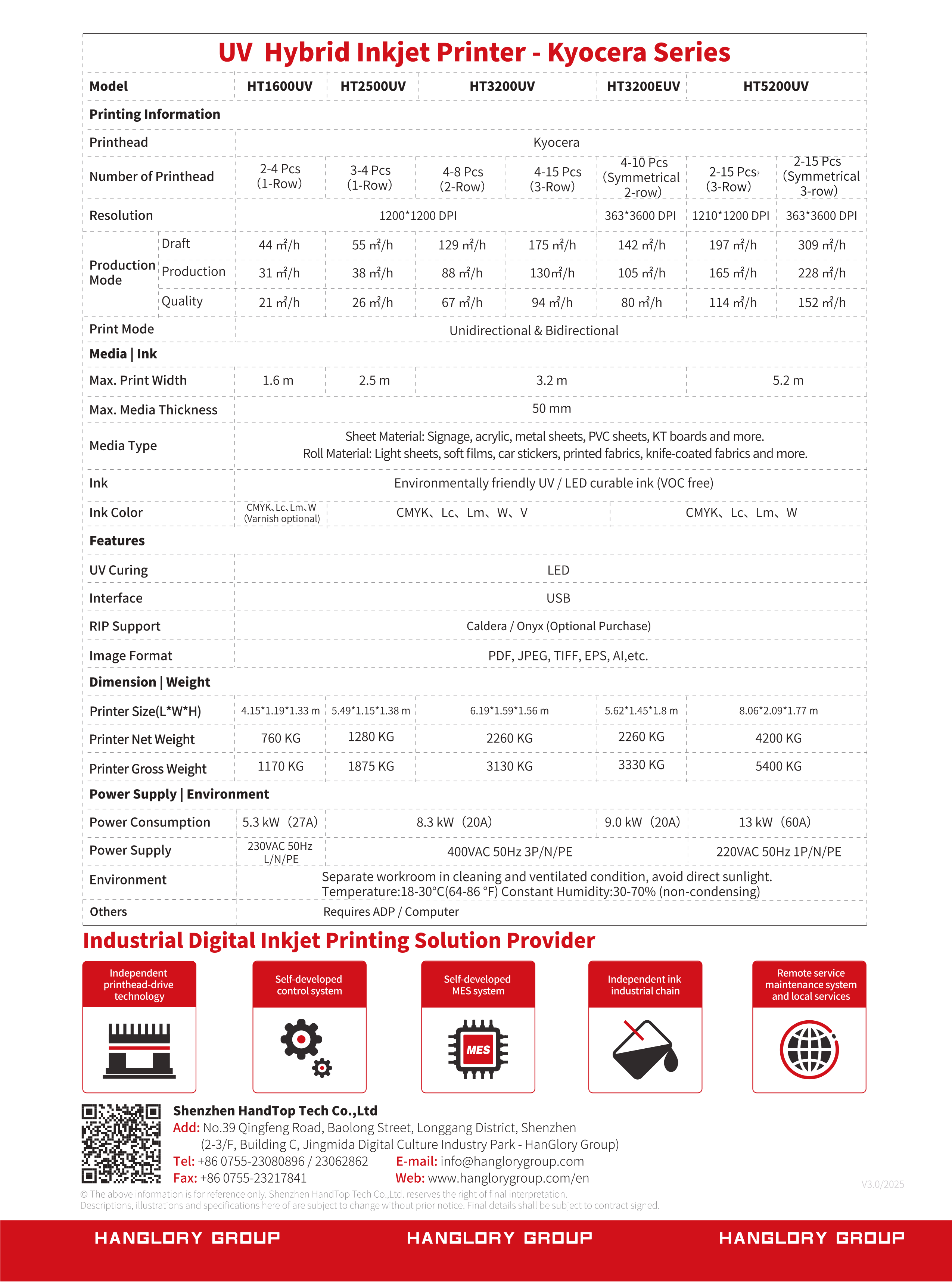

    HT3200UV(图1)

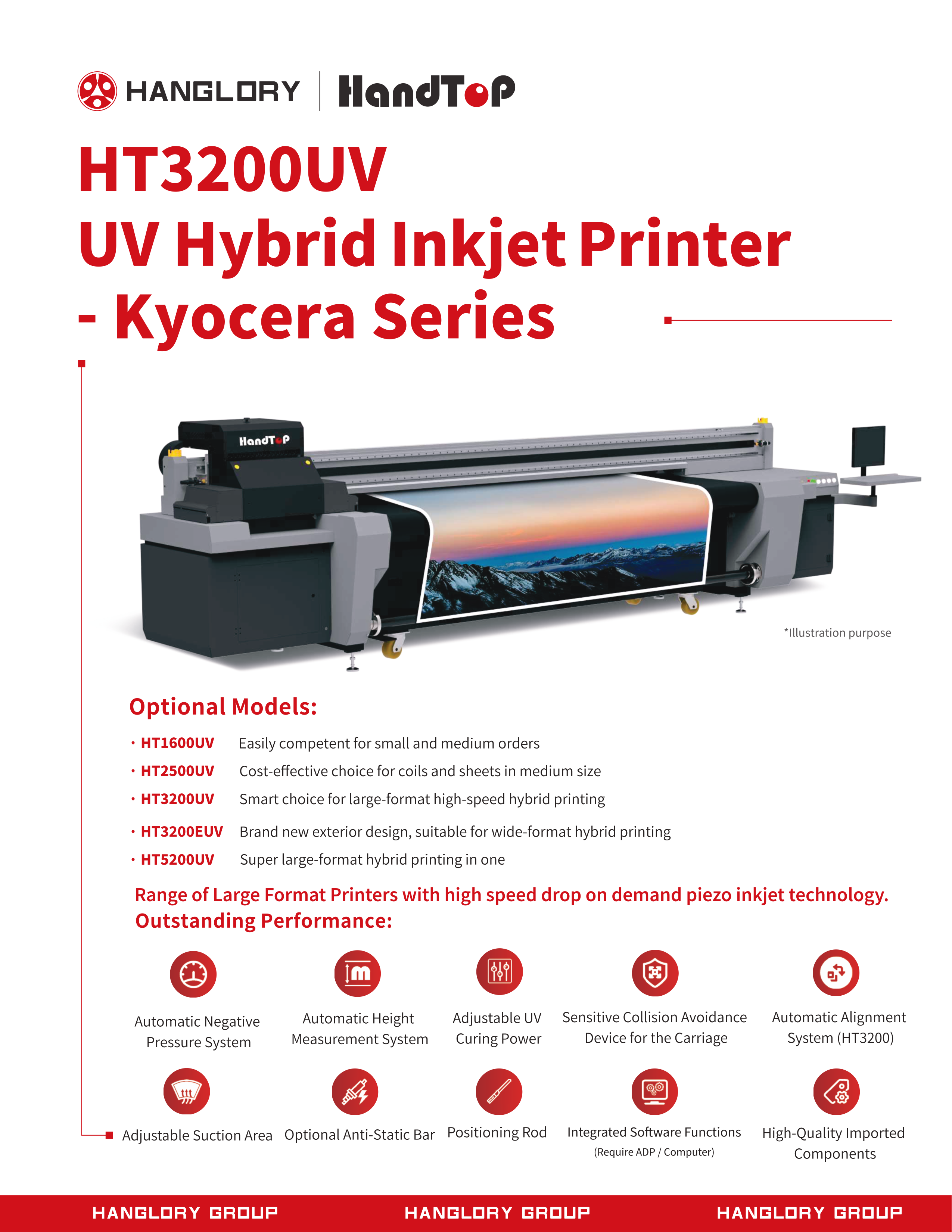

    HT3200UV(图2)

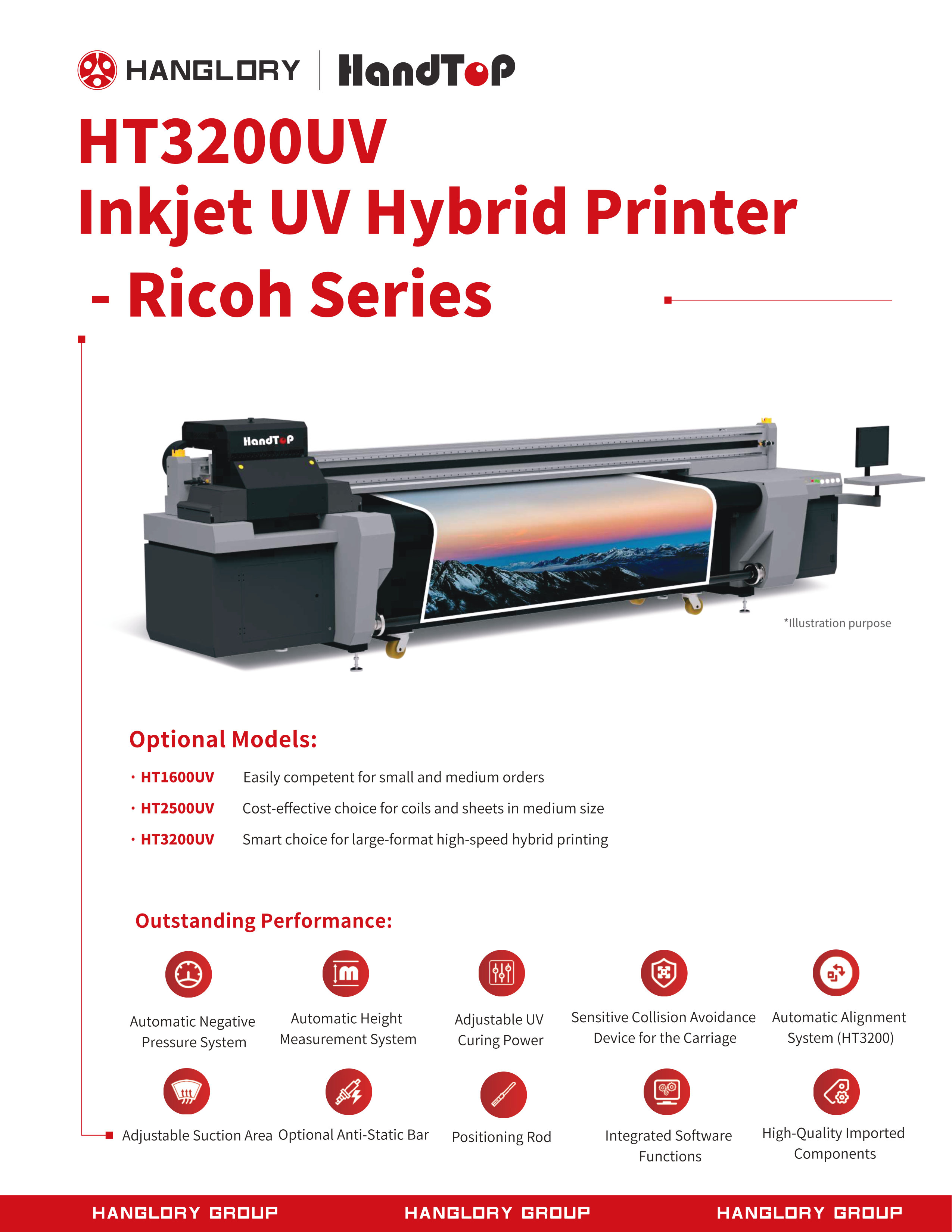

    HT3200UV(图3)

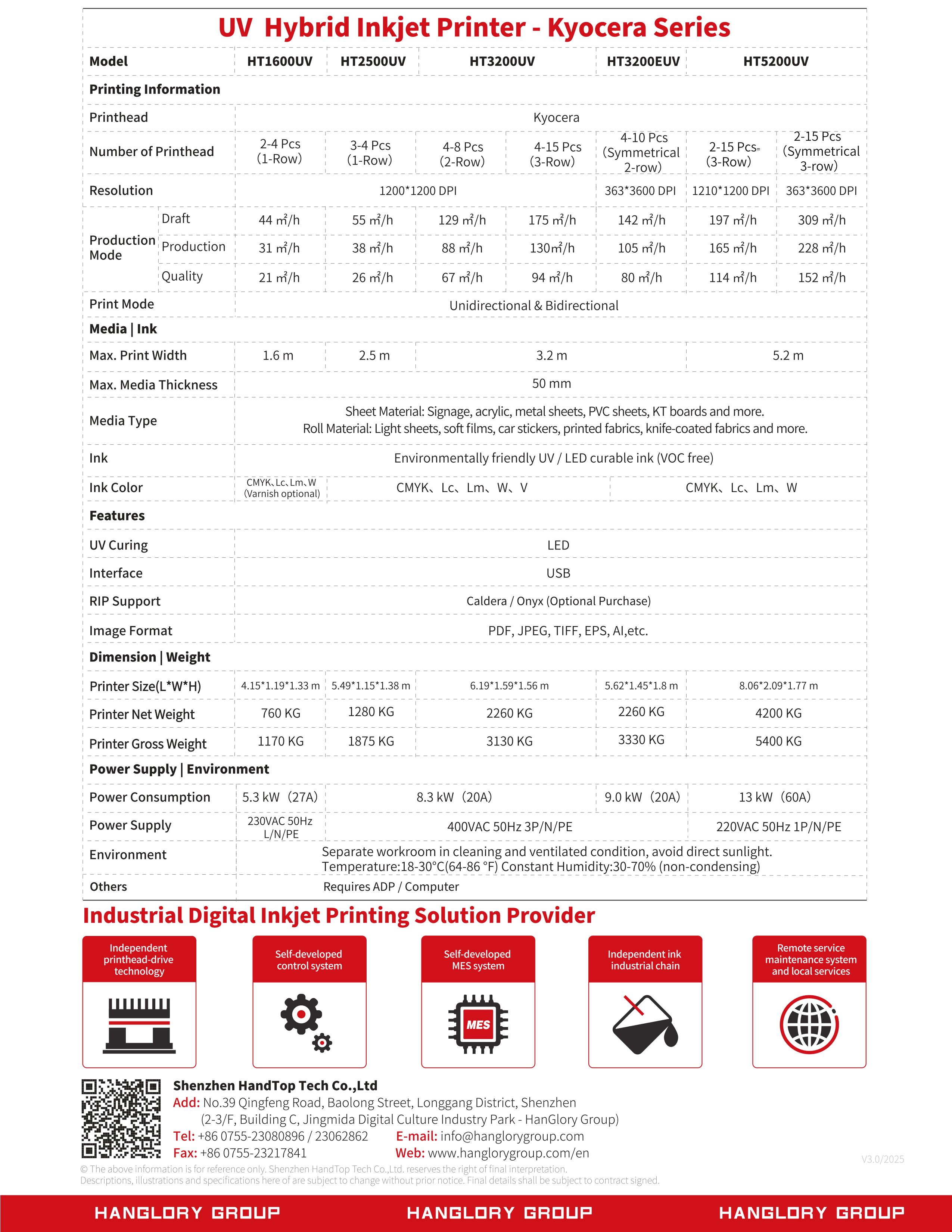

    HT3200UV(图4)
