  • HTH3200Pro

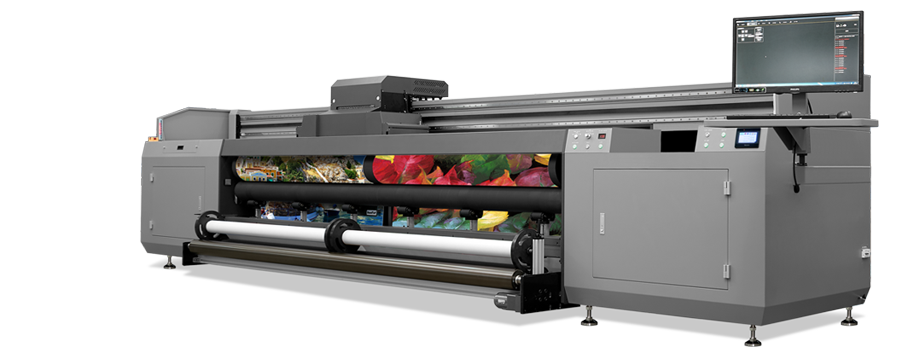

    UV Roll to Roll Printer

    Maximum productivity: 190m²/h

    Maximum resolution: 720*1440dpi

    Printhead: Konica 1024A

    Model HTH3200Pro
    Printhead Konica1024A
    Quantity of printheads Optional 8-12pcs
    Resolution 720*1400dpi
    Printing speed Draf:190m²/h
    Production:115m²/h
    Quality:90m²/h
    Max width 3.2m
    Max media thickness 2mm
    Media type Various films such as soft film, knife scraper cloth, car stickers, inkjet cloth, light film, etc.
    Ink Flexible UV ink
    Ink color C、M、Y、K
    Machine size 5985mm*1850mm*1680mm(L*W*H)
    Machine net weight 2400KG
    Machine gross weight 3100KG
    Power consumption 8.7KW(38A)
    Power supply230VAC.50Hz L/N/PE
    RIP supportCaldera
    UV curingLED
    InterfaceHigh-speed USB3.0 transmission
    EnvironmentSeperated workroom in good cleaning and ventilated condition, avoid direct sunlight
    Temperature: 18˚ C – 30˚ C(64˚F-86˚F)
    Constant Humidity: 30%-70%
    Above information for reference only and subject to change without notice. Shenzhen Handtop Tech Co.,Ltd all rights reserved.
