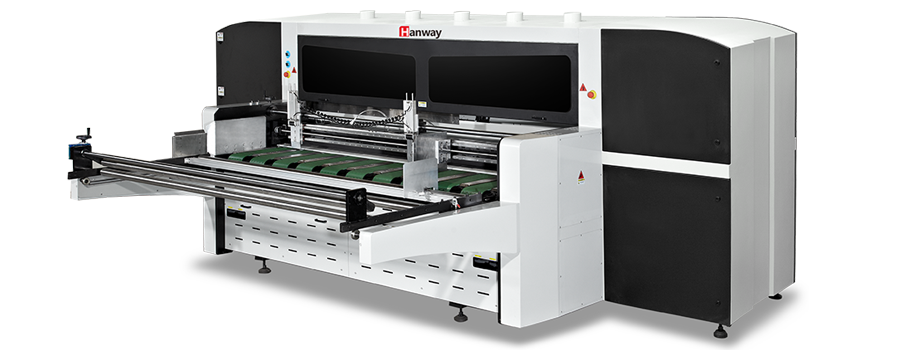

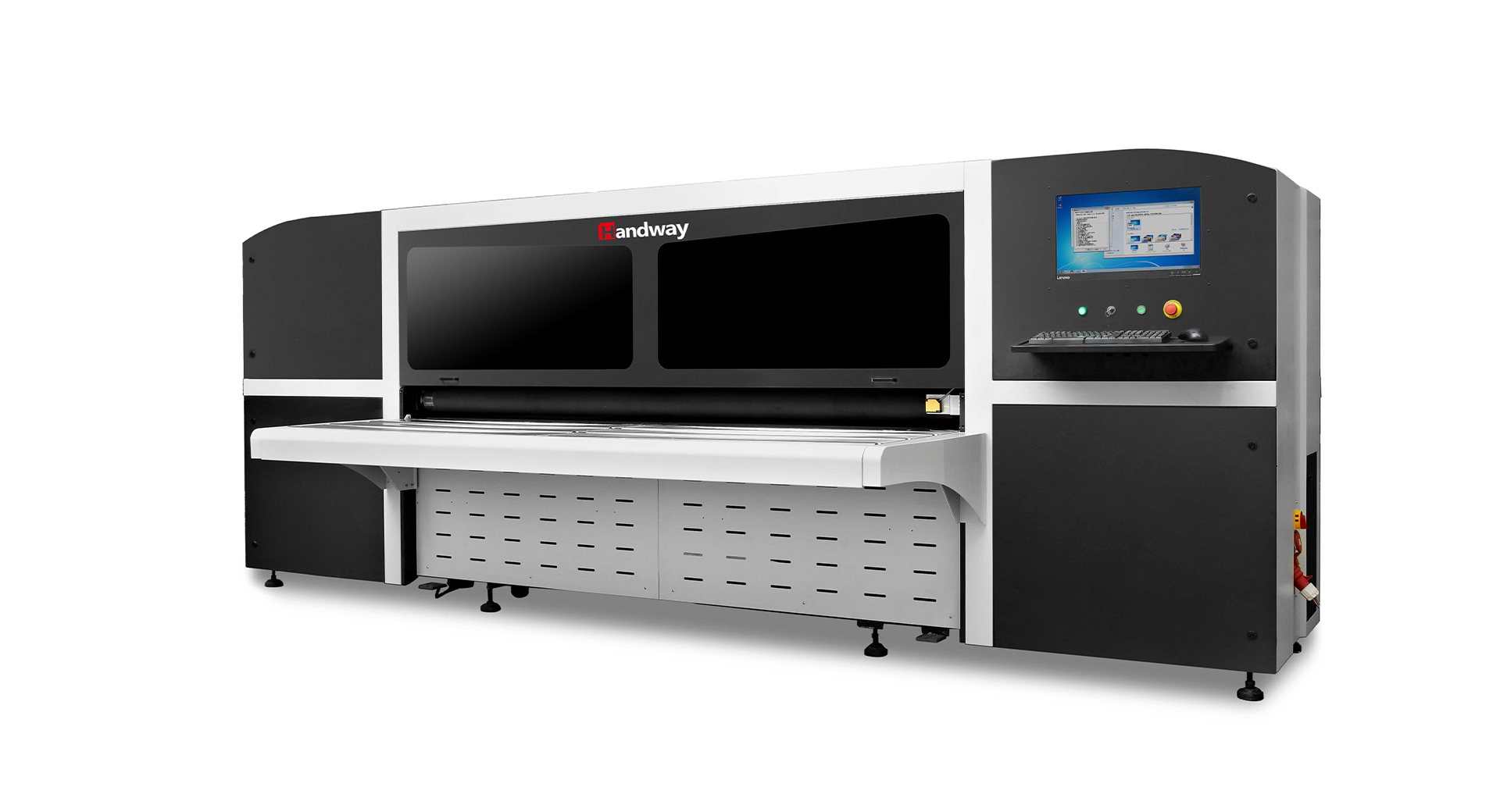

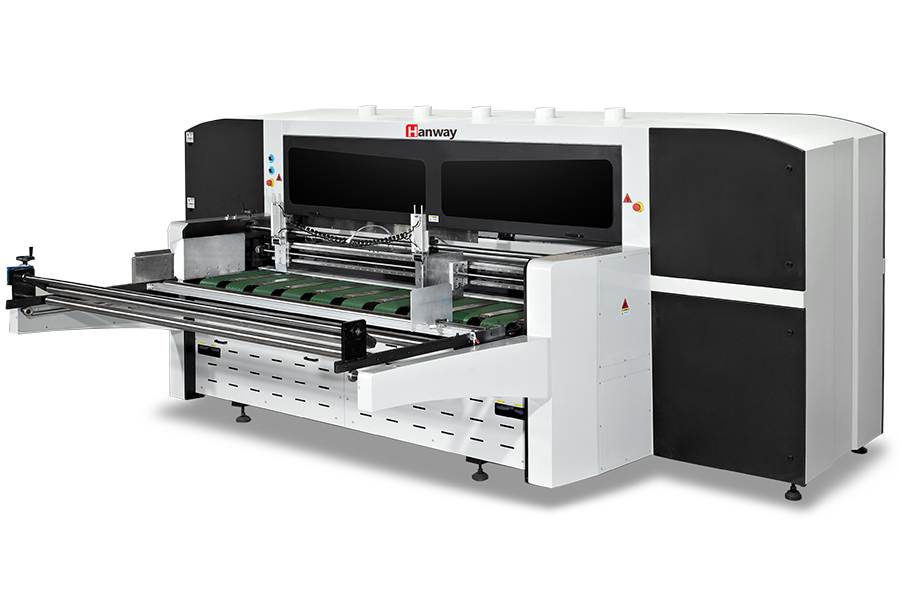

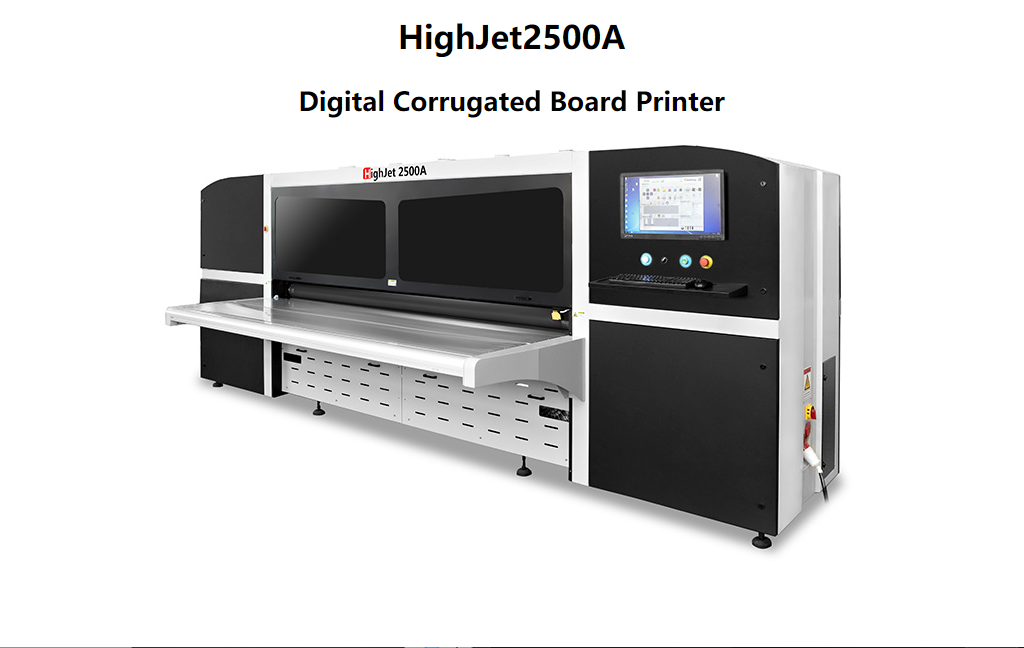

HighJet2500A

Digital Corrugated Board Printer

High cost performance to meet small batch order business

Superior color performance on printing of brown and white krafts

No pre-coating, flexible and convenient, safe and eco-friendly

· Advantage · Parameters

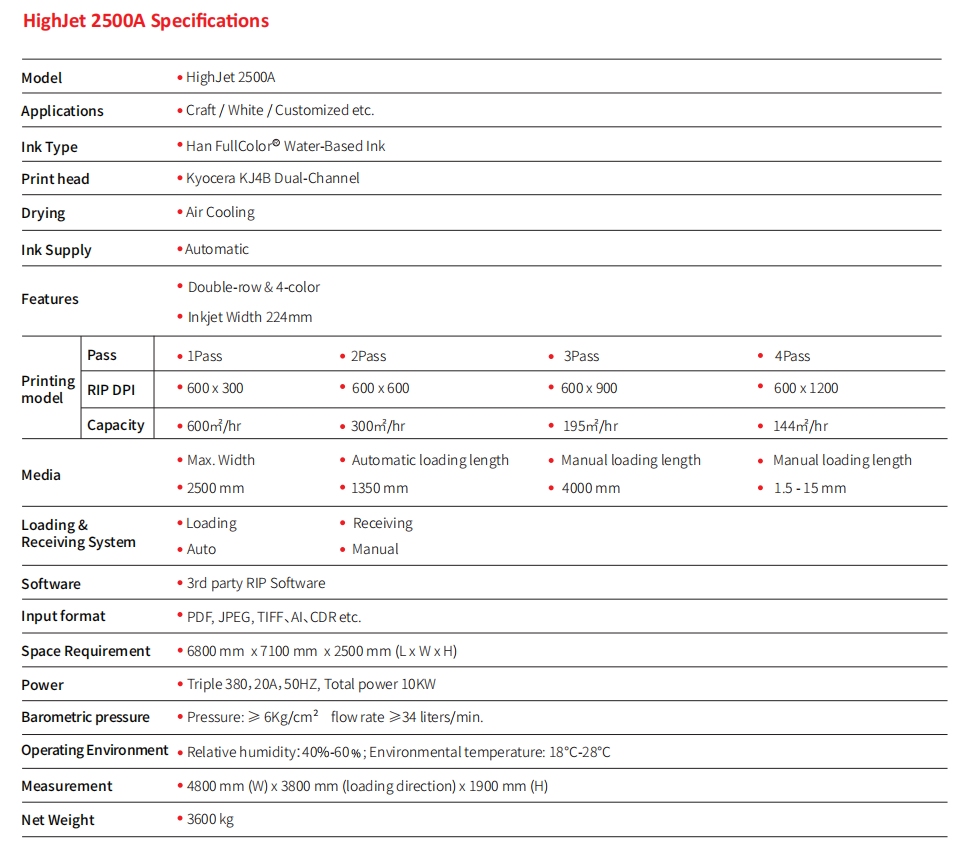

Model	HighJet2500A
Applications	Craft / White / Customized etc.
Ink Type	Han FullColor Water-Based Ink
Print head	Industrial inkjet print heads with piezo technology
Drying	Air Cooling
Ink Supply	Automatic
Features	Double-row & 4-color, Inkjet Width 224mm
Printing modes
pass	1pass	2pass	3pass	4pass
Resolution	600x300	600x600	600x900	600x1200

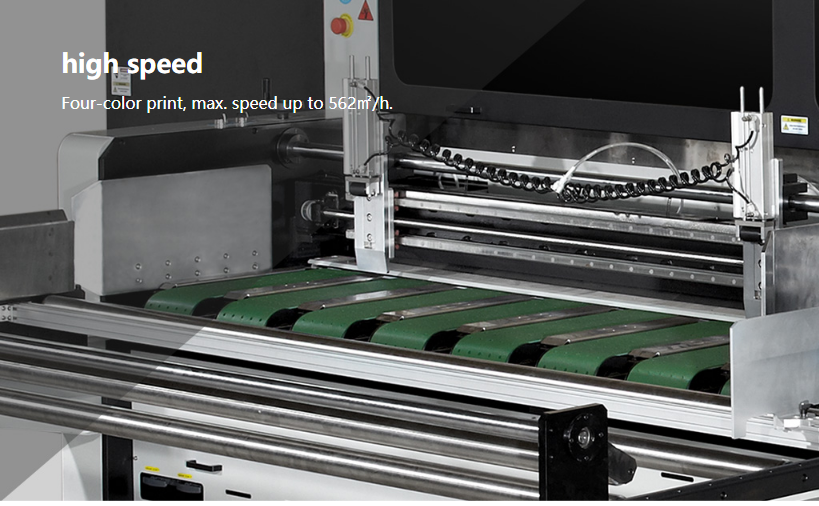

Capacity	600㎡/hr	300㎡/hr	195㎡/hr	144㎡/hr
Media	Max. Width:2500mm Automatic loading length：1350mm Manual loading length：4000mm Manual loading length：1.5-15mm

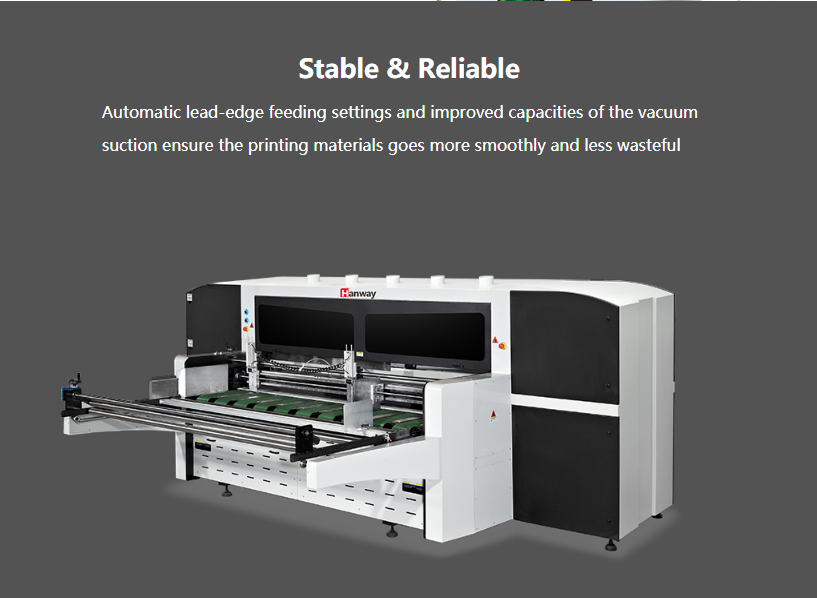

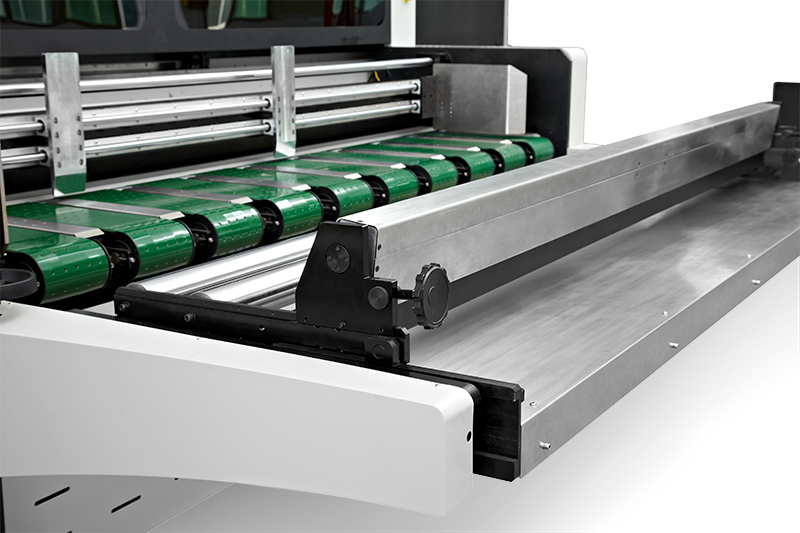

Loading & Receiving System	Loading：Auto,Receiving：Manual
Software	3rd party RIP Software
Input format	PDF, JPEG, TIFF、AI、CDR etc.
Space Requirement	6800 mm (W)7100 mm (L)2500 mm (H)
Power	Triple 380，20A，50HZ, Total power 10KW
Barometric pressure	Pressure: ≥ 6Kg/cm² flow rate ≥34 liters/min.
Operating environment	Relative humidity：40%-60﹪; Environmental temperature: 18℃-28℃
Measurement	4800 mm (W)3800 mm (loading direction)1900 mm (H)
Net Weight	3600 kg
© The above information is for reference only. Shenzhen Hanway Industrial Digital Equipment Co., Ltd. reserves the right for final interpretation. If any modification happens, no notification will be made and the provisions of the contract shall prevail.
