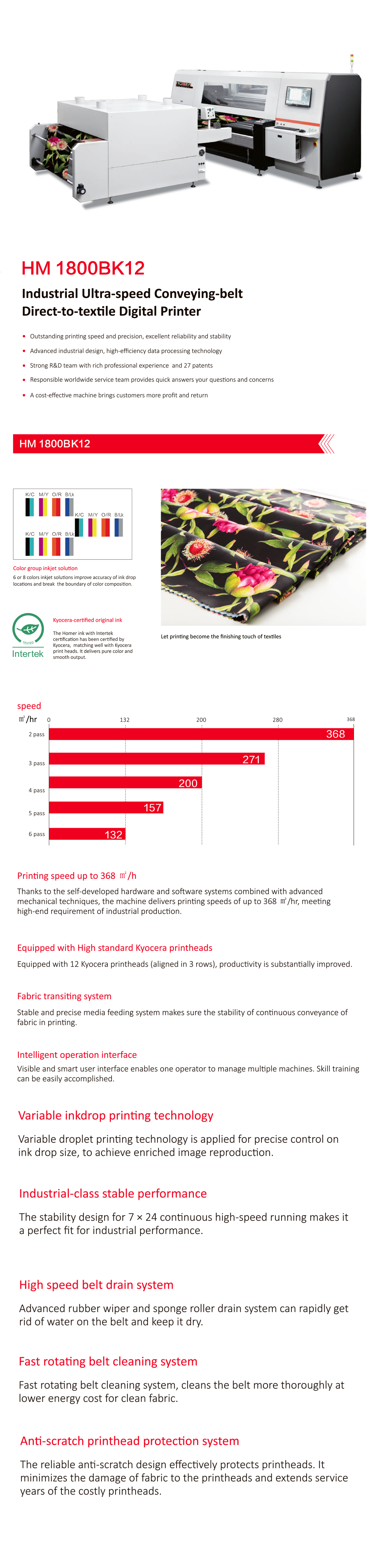

Best choice for high-speed direct to fabric printing
Maximum productivity: 420m²/hr
Maximum resolution: 600*1800dpi
Printhead: 8-12 industrial-grade piezoelectric ceramic printheads
Model | HM1800BK12 | ||||
Printing Resolution | 600 * 600 dpi | 600 * 900 dpi | 600 * 1200 dpi | 600 * 1500 dpi | 600 * 1800 dpi |
Production Speed | 420m2/hr | 271m2/hr | 200m2/hr | 157m2/hr | 132m2/hr |
Printing Mode | Single/bi-direction | ||||
Pinthead Qty | 8 to 12pcs (Max.) | ||||
colors | CMYK + 2 or 4 spot colors | ||||
Inks | Reactive, acid, sublimation(direct or transfer), pigment | ||||
Color mode supported | 3 * 3,6 colors mode、3 * 4,8 colors mode | ||||
Ink tank capacity | 15L | ||||
Media Type | Cotton, linen, silk, nylon, polyester, blended, elastic fabrics, etc | ||||
Media Conveying | Continuous belt conveying, dedicated unwinder for woven fabric + knitted fabric unwinder system | ||||
Max. Printing Width | 1900 mm | ||||
Max. media width | 1920 mm | ||||
Material weight | 30 - 450 g/m2 | ||||
Max. Roll weight | 100 Kg(full width) | ||||
Max. Roll Diameter | Standard roll:φ500mm|A-type feeding unit:φ1600mm(optional) | ||||
Dryer type | Belt + dryer heated by IR (steam-type,electricity-type available)|swing arm type dropping fabric (optional) | ||||
Exhaust treatment | Compulsory ventilation | ||||
Printer | AC220V~240V±10% single phase| Printer:34A ( 7.4KW) + belt drying:25A ( 5.2KW)|50Hz/60Hz | ||||
Dryer voltage | AC380V±10%,three phase| 25A(15.9 KW)|50Hz/60Hz | ||||
Compressed air supply | 0.6 Mpa|3.5 m³/hr(dry,no oil or water) | ||||
Environmental requirements |
Temperature:20~28ºC(68~77˚F) Constant Humidity:45-70% |
||||
Printer | 4656 mm * 2300 mm * 2277 mm(L * W * H) | ||||
Package | 4850 mm * 2250 mm * 2250 mm(L * W * H) | ||||
Dryer | 2190 mm * 2850 mm * 1400 mm(L * W * H) | ||||
Dryer Package | 2280 mm * 2960 mm * 1730 mm(L * W * H) | ||||
Installation space dimension | 8650mm * 7050mm(L*W)Non-machine installation standard requirements can be adjusted according to the site | ||||
Printer weight | 3.05T|Package weight: 3.9T | ||||
Dryer weight | 1.2T,Package weight: 1.6T |
