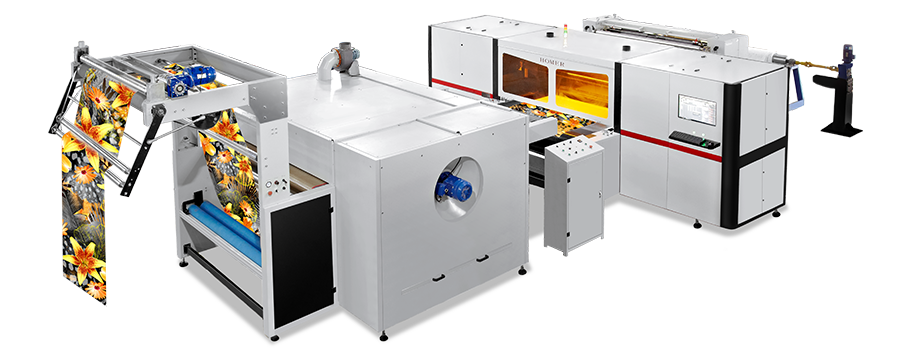

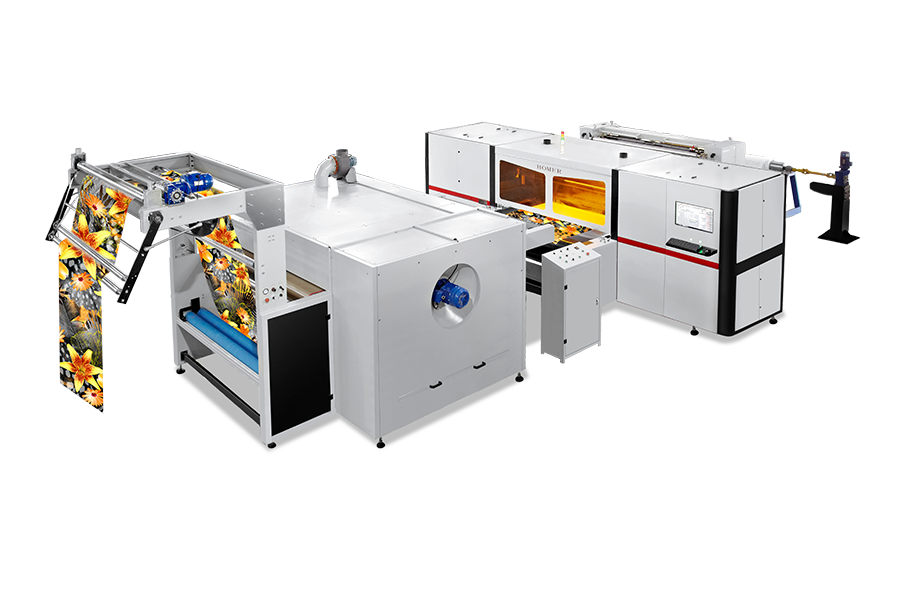

Expansion tool of digital printing plants
Maximum productivity: 900m²/hr
Maximum resolution: 600*2400dpi
Printhead: 8-32 industrial-grade piezoelectric ceramic printheads

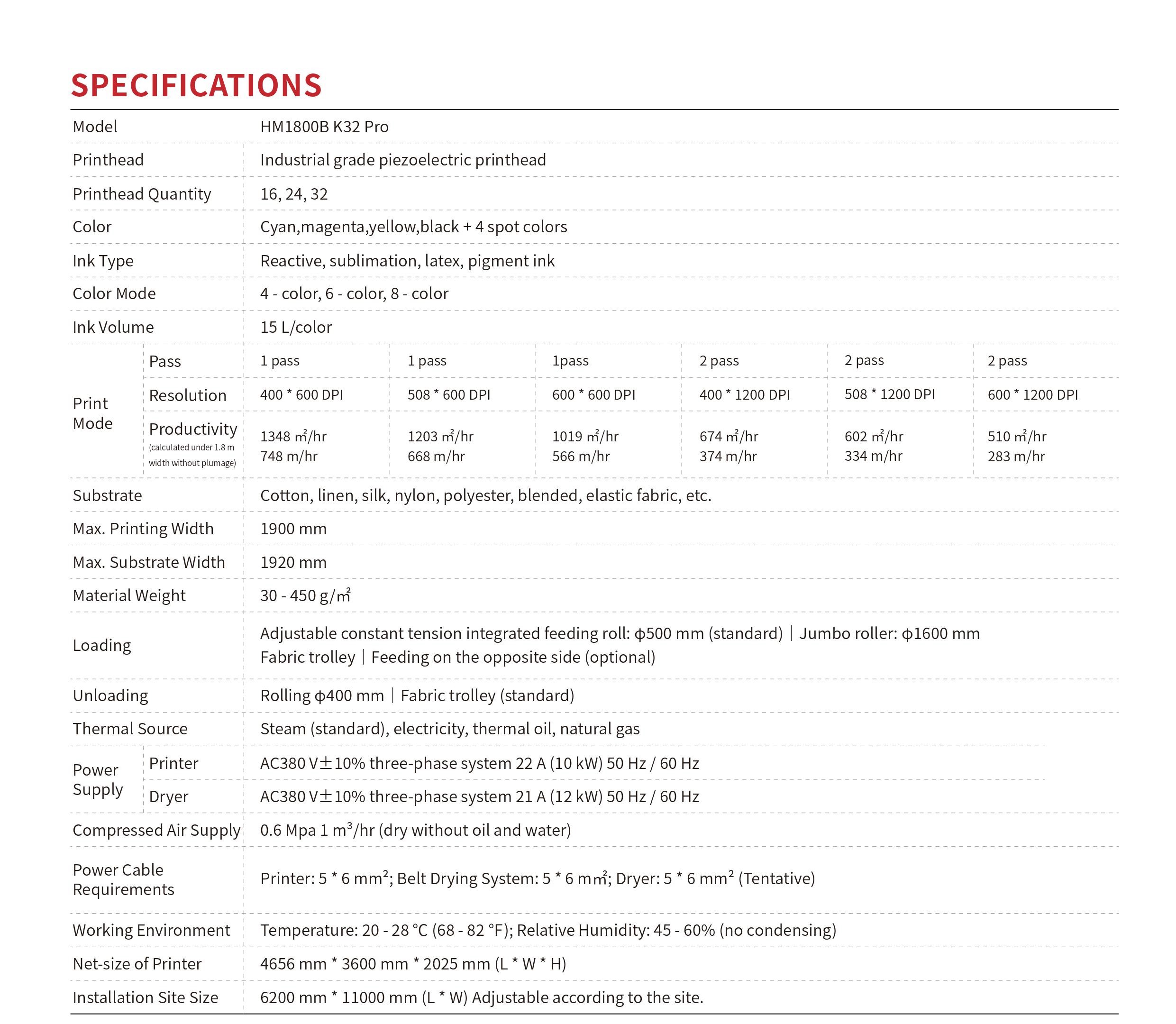

Model | HM1800BK32 | |||
Print head | Industrial inkjet print heads with piezo technology | |||

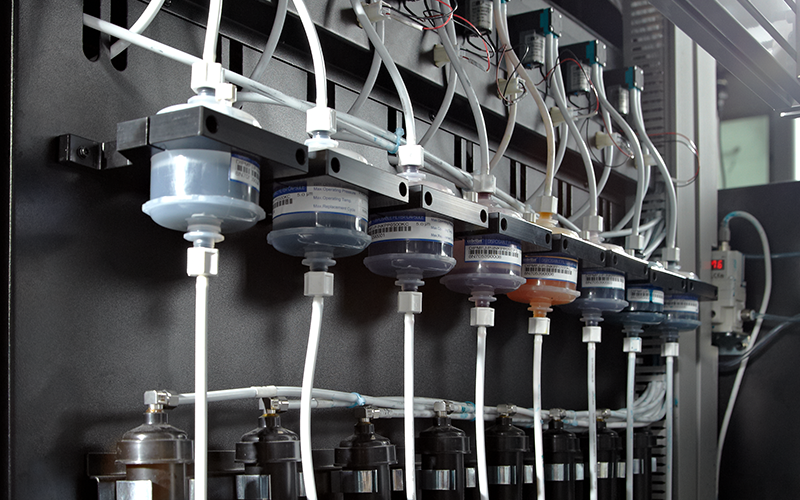

Ink supply system | Auto | |||
Ink tank volume | 15L | |||
Pint head Qty | 8-32pcs(Max.) | |||
Ink type |
Reactive: Cyan, Magenta, Yellow, Black, Orange, Blue, Red, Gray Acid: Cyan, Magenta, Yellow, Black, Orange, Blue, Light Magenta, Gray, Fluorescent Red, Fluorescent Yellow Sublimation: Cyan, Magenta, Yellow, Black, Orange, Fluorescent Red, Fluorescent Yellow | |||
Color mode supported | 4*6,6 colors mode、4*8,8 colors mode | |||
Rip Software | Caldera,Neostampa,Te*print | |||
Print mode(Single/bi-direction) | ||||
Pass | 1pass | 2pass | 3pass | 4pass |
Printing Mode | 600*600dpi | 600*1200dpi | 600*1800dpi | 600*2400dpi |
Production Speed | 900m2/hr | 454m2/hr | 302m2/hr | 210m2/hr |
Media information |
Max media width:1920mm Max printing width:1900mm Material weight:30-450g/m2 Max Roll weight:100KG | |||
Max Roll Diameter | Standard roll:Standard roll:φ500mm|A-type feeding unit:φ1600mm(optional) | |||
Media Type | Cotton, linen, silk, nylon, polyester, blended, elastic fabrics, etc | |||
Media Conveying | Continuous belt conveying, dedicated unwinder for woven fabric + knitted fabric unwinder system | |||

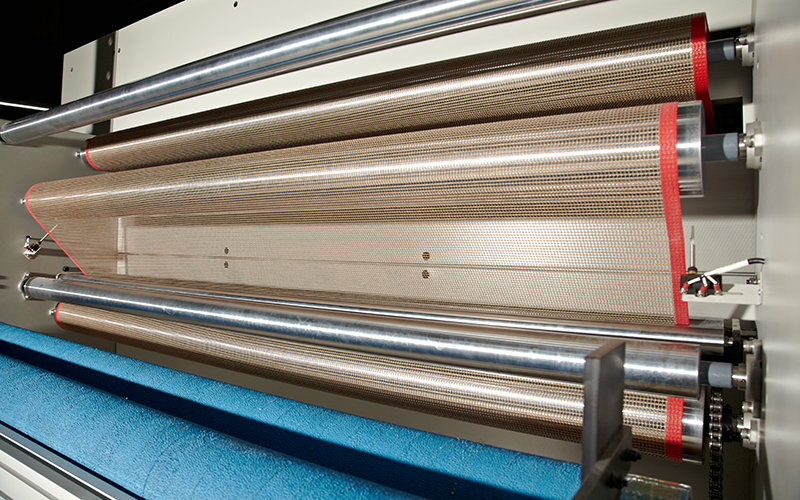

Dryer type | Belt + Hot air + IR | |||
Exhaust treatment | Hot air circulation, exhaust gas adjustable strong exhaust system (optional exhaust) | |||
Compressed water supply | 0.6Map|1m³/hr | |||
Compressed air supply | 0.6Map|3.5m³/hr(dry,no oil or water) | |||
Power supply | AC380V±10% ,three phase| 42A ( 23.5KW) |50Hz/60Hz | |||
Dryer voltage | AC380V±10%,three phase| 77A(43KW)|50Hz/60Hz | |||
Power cable | Printer:5*6mm2|Dryer:5*16mm2 | |||
Environmental requirements |
Temperature:20~28ºC(68~77˚F) Constant Humidity:45-70%(No condensation) | |||
Printer | 4400 mm * 6090 mm * 2250 mm(L * W * H) | |||
Dryer | 5250 mm * 3630 mm * 2900 mm(L * W * H) | |||
Printer weight | 7000kg | |||
Dryer weight | 3585kg | |||
Installation space dimension | 13000mm * 8000mm * 3100mm |
